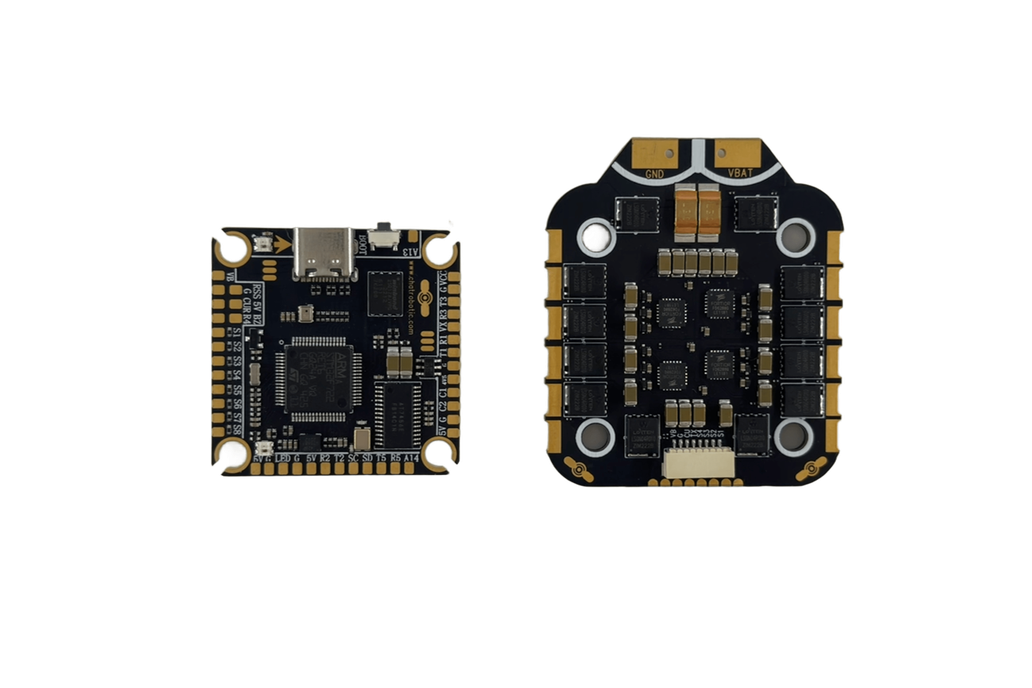

Standard Stack: F722 FC + 75A ESC 4 in 1

Name: Standard Stack: F722 FC + 75A ESC 4 in 1
SKU: 39276
Price: 69.90 USD
Availability: InStock

Professional-grade flight control and power system engineered for 5-7" performance FPV drones

Designed by ChatRobotic FPV Drones in China

Standard Stack: F722 FC + 75A ESC 4 in 1 1

Standard Stack: F722 FC + 75A ESC 4 in 1 2

Standard Stack: F722 FC + 75A ESC 4 in 1 3

Standard Stack: F722 FC + 75A ESC 4 in 1 4

Standard Stack: F722 FC + 75A ESC 4 in 1 5

Standard Stack: F722 FC + 75A ESC 4 in 1 6

Standard Stack: F722 FC + 75A ESC 4 in 1 7

Standard Stack: F722 FC + 75A ESC 4 in 1 8

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

Professional-grade flight control and power system engineered for 5-7" performance FPV drones

Standard Stack: F722 FC + 75A ESC 4-in-1 30x30 Technical Brief System Overview Professional-grade flight control and power system engineered for 5-7" performance FPV drones, combining STM32F722 proce…

Standard Stack: F722 FC + 75A ESC 4-in-1 30x30 Technical Brief

System Overview

Professional-grade flight control and power system engineered for 5-7" performance FPV drones, combining STM32F722 processing capabilities with high-current ESC architecture in a robust 30×30mm stackable form factor.

1. Flight Controller Specifications

Parameter	Specification
MCU	STM32F722VET6 (216MHz Cortex-M7)
IMU	ICM-42688-P + BMI270 (dual SPI, 32kHz gyro)
Blackbox	32MB Flash (32kHz logging)
Input Voltage	2-8S LiPo (7.4-33.6V)
BEC Outputs	5V@3A + 10V@3A + 12V@2A
Connectivity	6x UART, 2x I²C, 1x CANbus, 1x Bluetooth
USB Interface	Type-C with ESD protection
OSD Chip	AT7456E (Betaflight OSD) with 4K resolution
Board Size	36×36mm
Board Weight	11.5g

2. 75A 4-in-1 ESC Specifications

Parameter	Specification
MCU	STM32G431KB (170MHz Cortex-M4)
Continuous Current	75A/channel (300A peak)
Burst Current	100A/channel (5 seconds)
Protocols	DShot1200, Proshot32, PWM, Oneshot42
Input Voltage	2-8S LiPo (7.4-33.6V)
Current Sensor	±1% accuracy hall sensors
Board Size	40×40mm
Board Weight	30.8g

3. Combined Features

Power System

Ultra-Low ESR Capacitance: 12×100μF MLCC array + 2200μF electrolytic
Surge Protection: 40V TVS diodes with active clamping
Triple-Stage Filtering: LC-π filter for gyro/video systems
Stackable Design: 30×30mm mounting with M3 screws + anti-vibration grommets

Integration

Digital VTX Support: 9V/12V regulated outputs for DJI/HDZero
Bi-Directional Telemetry: ESC metrics via FPort/S.Port
Barometric Altitude Hold: MS5611 barometer with foam isolation
Bluetooth Configuration: Wireless betaflight tuning

4. Safety Features

Flight Controller Protections

Protection Type	Specification	Implementation
Voltage Spike Protection	35V continuous / 45V transient	TVS diode array + active clamping
Gyro Vibration Damping	>10kHz reduction by 95%	Sorbothane gasket + dynamic notch filters
Triple Power Inputs	5V@3A + 5V@2A backup + VBUS backup	Priority-based MOSFET switching

ESC Protections

Protection Type	Threshold	Response Time	Trigger Condition
Hardware Overcurrent	100A per channel	≤1.5 seconds	MOSFET desaturation detection
Software Overcurrent	75A continuous	≤8 seconds	Sustained high current
Short Circuit	Hardware isolation	<25μs	Phase-phase/phase-ground
Over-temperature	115°C (MOSFET)	<200μs	Thermal runaway prevention
Low Voltage Cutoff	Configurable 2.8-3.6V/cell	<80ms	Smart battery preservation

5. Accessories Package

1x SH1.0-8pins silicone cable (7cm, reversed)
1x SH1.0-6pins silicone cable (12cm, reversed)
1x SH1.0-4pins silicone cable (12cm, reversed)
1x SH1.0-3pins silicone cable (10cm, reversed)
1x SH1.0-2pins silicone cable (12cm, single-end)
5x M3*10mm shock-absorbing balls
5x M3*8mm shock-absorbing balls
1x 1000UF 35V 10*20mm electrolytic capacitor
1x XT60-male 12AWG silicone cable (15cm length)
