Standard Stack: F405 FC + 85A ESC 4 in 1 30x30

Name: Standard Stack: F405 FC + 85A ESC 4 in 1 30x30
SKU: 39275
Price: 76.90 USD
Availability: InStock

High-performance flight control and power system designed for 5-7" FPV drones

Designed by ChatRobotic FPV Drones in China

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 1

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 2

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 3

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 4

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 5

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 6

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 7

Standard Stack: F405 FC + 85A ESC 4 in 1 30x30 8

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

High-performance flight control and power system designed for 5-7" FPV drones

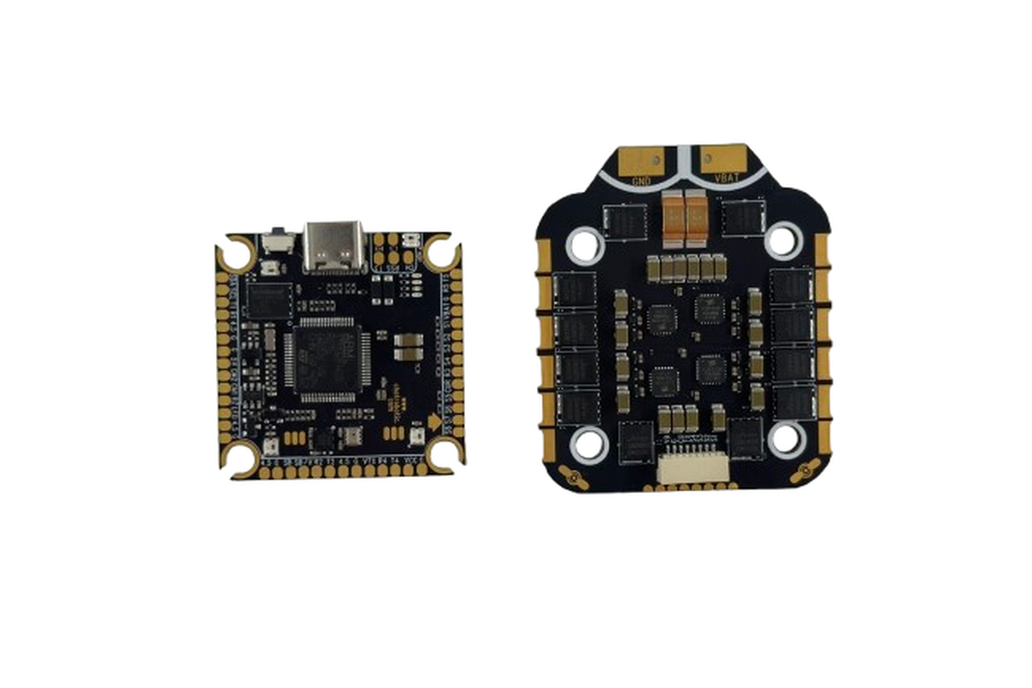

Standard Stack: F405 FC + 85A ESC 4-in-1 30x30 Technical Brief System Overview High-performance flight control and power system designed for 5-7" FPV drones, featuring robust STM32F405 processing and…

Standard Stack: F405 FC + 85A ESC 4-in-1 30x30 Technical Brief

System Overview

High-performance flight control and power system designed for 5-7" FPV drones, featuring robust STM32F405 processing and high-current ESC capabilities in a 30×30mm stackable form factor.

1. Flight Controller Specifications

Parameter	Specification
MCU	STM32F405RGT6 (168MHz Cortex-M4)
IMU	BMI270 (SPI, 6.4kHz gyro)
Blackbox	32MB Flash (4kHz logging)
Input Voltage	2-8S LiPo (7.4-25.2V)
BEC Outputs	5V@3A + 10V@3A
Connectivity	4x UART, 2x I²C, 1x CANbus
USB Interface	Micro-USB
OSD Chip	AT7456E (Betaflight OSD)
Board Size	36×36mm
Board Weight	10.2g

2. 75A 4-in-1 ESC Specifications

Parameter	Specification
MCU	GD32F330 (72MHz Cortex-M4)
Continuous Current	85A/channel (300A total)
Burst Current	95A/channel (5 sec)
Protocols	DShot1200, Proshot32, PWM, Oneshot125
Input Voltage	2-8S LiPo (7.4-33.6V)
Current Sensor	±1.5% accuracy hall sensors
Board Size	40×40mm
Board Weight	28.6g

3. Combined Features

Power System

Integrated PDB: Direct battery connection with 100μF ceramic capacitors
Surge Protection: 35V transient voltage suppression (TVS array)
Active EMI Filtering: Triple-stage noise reduction for video systems
Stackable Design: 30×30mm mounting pattern with M3 screws

Integration

HD FPV System Support: Dedicated 9V/12V regulated outputs for cameras
ESC Telemetry: Real-time RPM/current monitoring via FPort
Barometer Sensor: Built-in altitude hold functionality

4. Safety Features

Flight Controller Protections

Protection Type	Specification	Implementation
Voltage Spike Protection	30V continuous / 40V transient	TVS diodes + active clamping circuit
Gyro Vibration Damping	>5kHz reduction by 90%	Aluminum gasket + dynamic notch filter
Dual Power Inputs	5V@3A (primary) + 5V@2A (backup)	Redundant MOSFET switching

ESC Protections

Protection Type	Threshold	Response Time	Trigger Condition
Hardware Overcurrent	95A per channel	≤2 seconds	MOSFET desaturation
Software Overcurrent	85A continuous	≤10 seconds	Sustained high current
Short Circuit	Instant cutoff	<50μs	Phase-to-phase fault
Over-temperature	110°C (MOSFET)	<500μs	Thermal runaway
Low Voltage Cutoff	3.2V/cell configurable	<100ms	Battery protection

5. Accessories Package

1x SH1.0-8pins silicone cable (7cm, reversed)
1x SH1.0-6pins silicone cable (12cm, reversed)
1x SH1.0-4pins silicone cable (12cm, reversed)
1x SH1.0-3pins silicone cable (10cm, reversed)
1x SH1.0-2pins silicone cable (12cm, single-end)
5x M3*10mm shock-absorbing balls
5x M3*8mm shock-absorbing balls
1x 1000UF 35V 10*20mm electrolytic capacitor
1x XT60-male 12AWG silicone cable (15cm length)
