F722 Mini Flight Controller For FPV Drone

Name: F722 Mini Flight Controller For FPV Drone
SKU: 39088
Price: 30.90 USD
Availability: InStock

The F722 Mini Flight Controller is a high-performance flight control system designed for compact FPV drones and UAV applications.

Designed by ChatRobotic FPV Drones in China

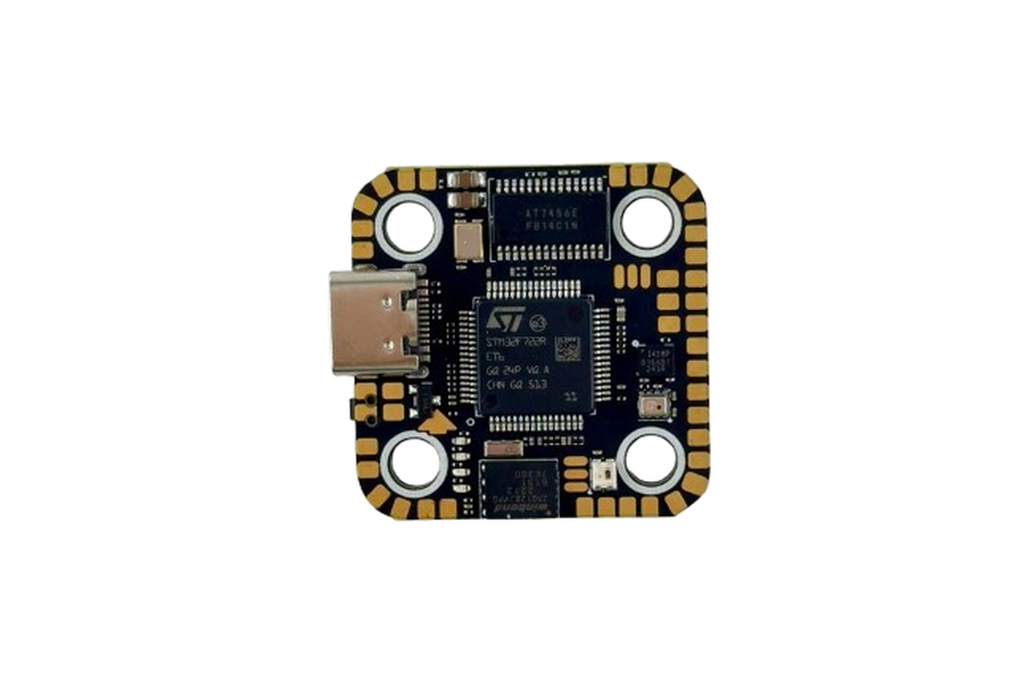

F722 Mini Flight Controller For FPV Drone 1

F722 Mini Flight Controller For FPV Drone 2

F722 Mini Flight Controller For FPV Drone 3

F722 Mini Flight Controller For FPV Drone 4

2025-06-18T07:34:39.571Z-722mini (1).png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

The F722 Mini Flight Controller is a high-performance flight control system designed for compact FPV drones and UAV applications.

F722 Mini Flight Controller Technical Brief Descriptions The F722 Mini Flight Controller is a high-performance flight control system designed for compact FPV drones and UAV applications. Built around…

F722 Mini Flight Controller Technical Brief

Descriptions

The F722 Mini Flight Controller is a high-performance flight control system designed for compact FPV drones and UAV applications. Built around the STM32F722 microcontroller (ARM Cortex-M7 @ 216MHz), it delivers ultra-low latency processing and advanced flight dynamics. Featuring redundant sensors and dual BEC outputs, it is optimized for racing, cinematic filming, and long-range autonomous missions in space-constrained builds:cite[2]:cite[9].

1. Main Specifications

Component	Details
Processor	STM32F722 (Cortex-M7 @ 216MHz, Dual FPU)
Memory	512KB SRAM + 2MB Flash
IMU	ICM-42688-P (SPI, 32kHz gyro) + BMI270 (backup) :cite[2]:cite[6]
3D Magnetometer	IST8310 magnetometer
Barometer	SPL06 (Pressure precision: ±0.005 hPa) :cite[2]
Connectivity	6×UART / 8×PWM / 2×CAN FD / 1×I2C / 1×SPI
Blackbox Storage	MicroSD card (supports 16GB~128GB)
Input Voltage	3S-6S LiPo (10.8V-25.2V)
BEC Outputs	5V@3A (Switch-mode) + 9V@2A (Isolated) :cite[9]
Dimensions	30×30mm (20×20mm & 30×30mm mounting) :cite[9]
Board Weight	6.0g
### 2. Key Features
- 8kHz Control Loops: 125μs cycle time with hardware-accelerated filtering :cite[2]
- Redundant IMU Support: Primary ICM-42688-P + secondary BMI270 for fail-safe operation
- Dual CAN FD Buses: Enables ESC telemetry daisy-chaining (e.g., T-Motor Velox)
- Integrated OSD: AT7456E chip with customizable HUD and font support :cite[4]
- DJI Air Unit Integration: Dedicated plug-and-play port for DJI FPV systems :cite[9]
- Advanced BEC Design: MP9943-based synchronous rectifier with <100mV ripple :cite[5]
- Pit Switch Control: Remote VTx power management via transmitter :cite[9]
### 3. Firmware Compatibility
- ✅ Betaflight (Target: MAMBAF722) :cite[2]
- ✅ INAV 6.0 (Waypoint navigation & Lua scripts)
- ✅ EmuFlight (Performance-focused firmware)
- ✅ ArduPilot (Copter-4.3+ with limited features)
### 4. Typical Applications
#### 🏁 Racing Drones:
- 3"-5" ultralight builds with 128K PWM ESCs
- Sub-250g whoop-class racers
#### 🎥 Cinematic FPV:
- Vibration-damped cinewhoop platforms
- HD camera gimbal controllers
#### 🛰️ Long-Range UAVs:
- Autonomous mapping drones with dual GPS
- Solar-powered reconnaissance platforms
### 5. Accessories Package
- 4× M3×8mm silicone shock-absorbing grommets :cite[2]
- 1× 8-pin straight-through cable (DJI Air Unit compatible)
- 1× 6-pin GPS/Compass connector cable
- 2× M2/M3 dual-pattern isolation columns
- 1× Piezo buzzer (5V)
### 6. Connection Diagram
