F722 Flight Controller For FPV Drone

Name: F722 Flight Controller For FPV Drone
SKU: 38688
Price: 29.90 USD
Availability: InStock

F722 Flight Controller is built around the STM32F722 32-bit processor, which operates at 216MHz.

Designed by ChatRobotic FPV Drones in China

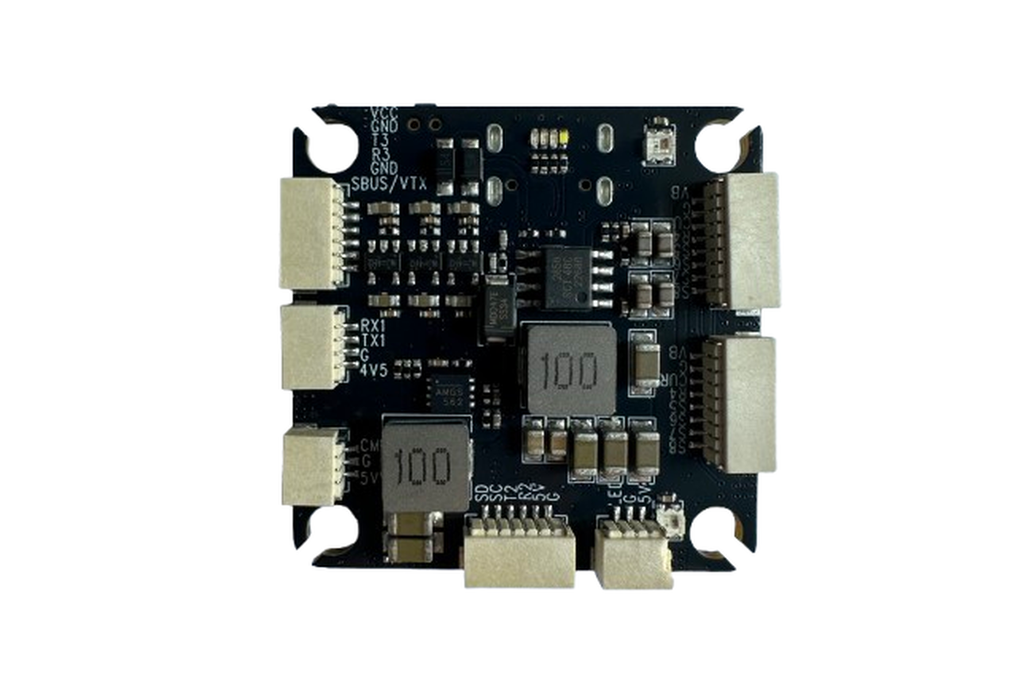

2025-05-10T03:28:04.041Z-CRP00717 F722 飞控 V2 b.png

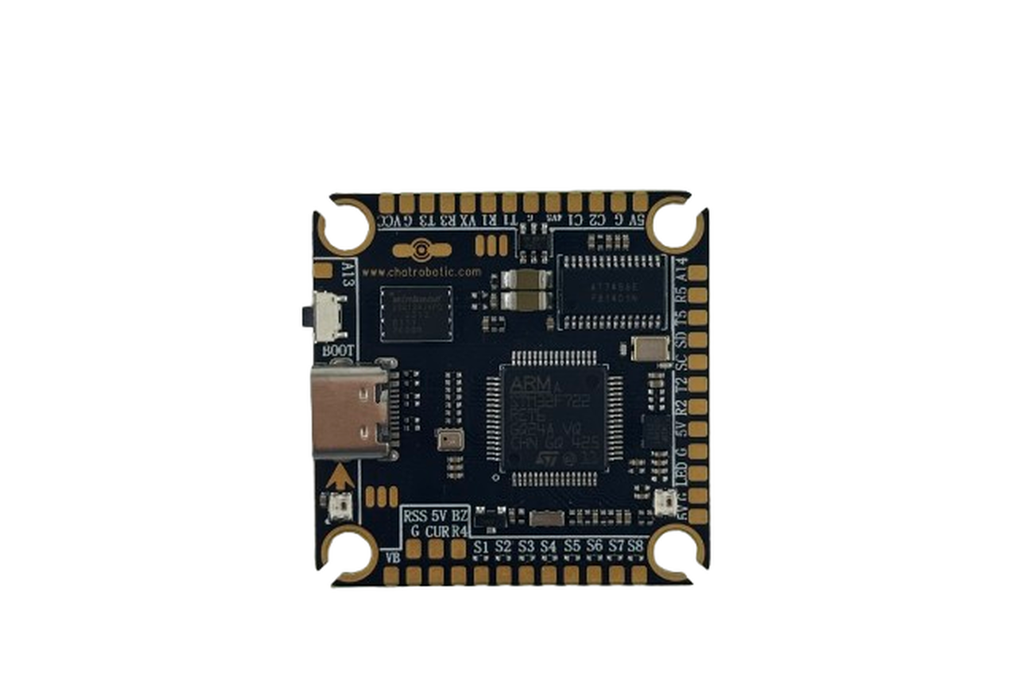

2025-05-10T03:28:04.041Z-CRP00717 F722 飞控 V2 a.png

2025-05-10T03:21:40.688Z-H743 Flight Controller.png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

F722 Flight Controller is built around the STM32F722 32-bit processor, which operates at 216MHz.

F722 Flight Controller Technical Brief 1. Main Specifications Component Details Processor STM32F722 (Cortex-M7 @ 216MHz) Memory 256KB SRAM + 512KB Flash IMU ICM42688-P (SPI, 32kHz gyro sam…

F722 Flight Controller Technical Brief

1. Main Specifications

Component	Details
Processor	STM32F722 (Cortex-M7 @ 216MHz)
Memory	256KB SRAM + 512KB Flash
IMU	ICM42688-P (SPI, 32kHz gyro sampling)
Barometer	BMP280 (±0.12hPa accuracy)
Connectivity	5x UART / 9x PWM / I²C / SPI
Blackbox Storage	16MB Flash (4kHz logging)
Input Voltage	3S-8S LiPo (11.1-33.6V)
BEC Outputs	9V@4.5A + 5V@3A
Dimensions	3737mm (30.530.5mm mounting)
Weight	9g
## 2. Key Features
- Ultra-low latency: 4kHz control loops (250μs cycle time)
- High-speed IMU: 32kHz gyro sampling (ICM42688-P)
- Multi-protocol support: SBUS/CRSF/ELRS/MSP
- Onboard OSD: AT7456E chip for FPV telemetry overlay
- Robust power: Reverse polarity protection + dual BECs
## 3. Firmware Compatibility
- ✅ Betaflight (Target: MATEKF722)
- ✅ INAV (GPS navigation support)
## 4. Typical Applications
- 🚁 FPV Racing Drones (Prioritize low latency)
- 🛸 Freestyle UAVs (High dynamic maneuverability)
- 🗺️ Autonomous Mapping Drones (GPS module required)
