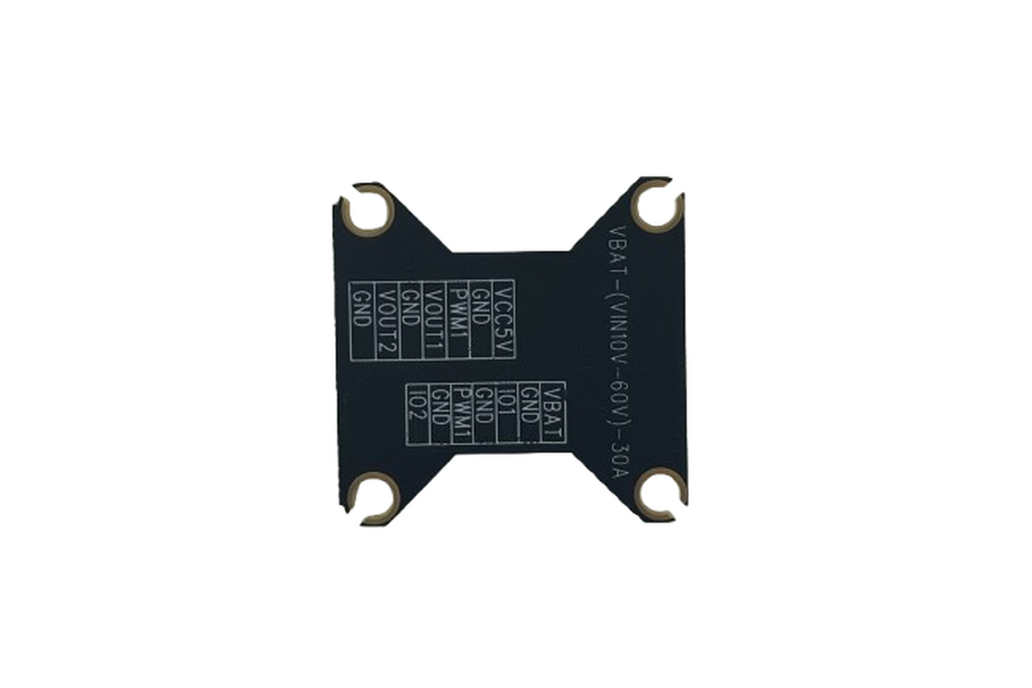

External Control Driver Board For FPV Drone

Name: External Control Driver Board For FPV Drone
SKU: 38683
Price: 7.90 USD
Availability: InStock

A specialized circuit board designed to interface external control signals with various devices, such as motors, sensors, and so on.

Sold By ChatRobotic FPV Drones

External Control Driver Board For FPV Drone 1

External Control Driver Board For FPV Drone 2

External Control Driver Board For FPV Drone 3


2025-06-16T08:28:09.325Z-外挂板2-removebg-preview (2).png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

A specialized circuit board designed to interface external control signals with various devices, such as motors, sensors, and so on.

External Control Driver Board Technical Brief Overview High-current interface board designed to bridge flight controllers (e.g. H743) with peripheral actuators, enabling low-voltage/micro-current con…

External Control Driver Board Technical Brief

Overview

High-current interface board designed to bridge flight controllers (e.g. H743) with peripheral actuators, enabling low-voltage/micro-current control and high-voltage/high-current output loads.

1. Main Specifications

Parameter	Specification
Input Voltage	5V-60V DC (2S-14S LiPo compatible)
Input Channels	1× PWM, 2× GPIO
Output Channels	1× PWM, 1× 5V@5A, 2× GPIO (5V-60V)
Max Current	30A continuous (50A peak)
DCDC Converter	SCT2650 (500KHz default)
Dimensions	38×33×4mm
Weight	5g

2. Key Features

Channel Configurability

High-Power Outputs (2×):
30A continuous (50A burst)
5V-60V adjustable output
Control Outputs:
1× PWM (50-400Hz)
2× GPIO (relay/LED control)

Supported Actuators

Gimbal servos (DSMX/DShot)
Payload release mechanisms
LED lighting arrays
Retractable landing gear
Camera switching systems

Protection Systems

Protection Type	Threshold	Response Time
Reverse Polarity	-36V	<500ns
Over-temperature	85°C	<10ms
Short Circuit	Auto-detect	<100μs
