AIO H743 Flight Controller

Name: AIO H743 Flight Controller
SKU: 39585
Price: 69.90 USD
Availability: InStock

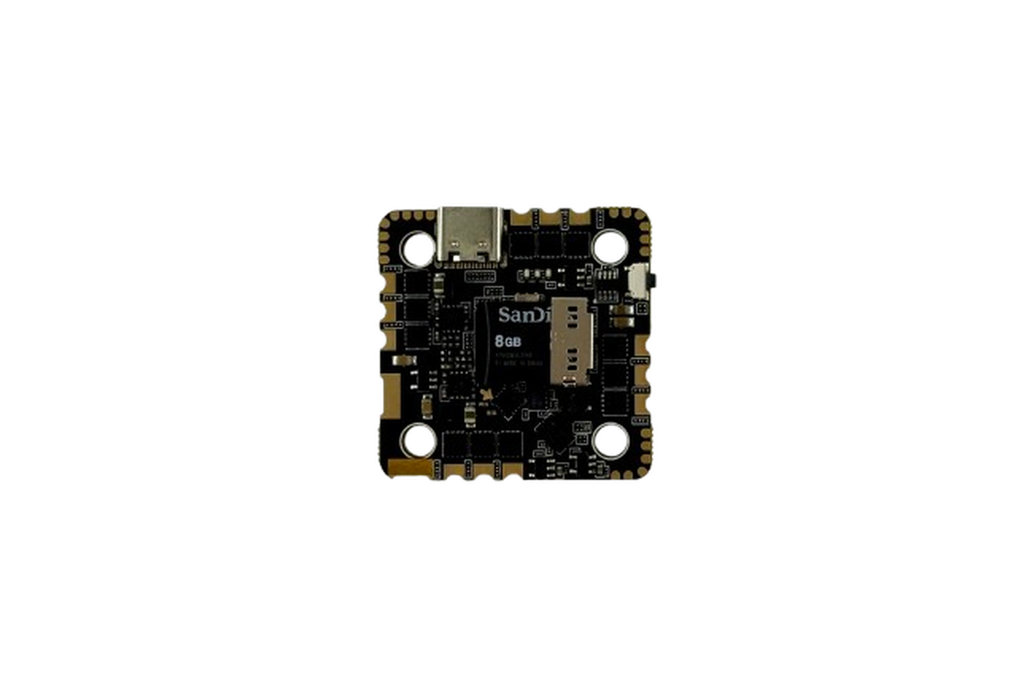

High-performance all-in-one flight controller designed for 2"-5" FPV drones, featuring the powerful STM32H743 MCU with dual-gyro redundancy

Designed by ChatRobotic FPV Drones in China

2025-08-01T09:36:32.601Z-H743AIO (5).png

2025-08-01T09:36:32.601Z-H743AIO (2).png

2025-08-01T09:36:32.601Z-H743AIO (3).png

2025-08-01T09:36:32.601Z-H743AIO (4).png

2025-08-01T09:36:32.601Z-H743AIO (1).png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

High-performance all-in-one flight controller designed for 2"-5" FPV drones, featuring the powerful STM32H743 MCU with dual-gyro redundancy

H743AIO Flight Controller Technical Brief (2"-5" Compatible) System Overview High-performance all-in-one flight controller designed for 2"-5" FPV drones, featuring the powerful STM32H743 MCU with dua…

H743AIO Flight Controller Technical Brief (2"-5" Compatible)

System Overview

High-performance all-in-one flight controller designed for 2"-5" FPV drones, featuring the powerful STM32H743 MCU with dual-gyro redundancy and comprehensive power management.

1. Flight Controller Specifications

Parameter	Specification
MCU	STM32H743VIT6 (480MHz Cortex-M7)
IMU Configuration	BMI270 (Primary) + ICM-42688-P (Backup)
Blackbox Storage	16MB QSPI Flash (8kHz logging)
Input Voltage Range	2-6S LiPo (7.4-25.2V)
Regulated Outputs	5V@3A + 9V@2A + 3.3V@500mA
Connectivity	7x UART, 2x I2C, 1x SPI, USB-C
Camera System	Dual camera inputs w/ OSD switching
Onboard Barometer	BMP280
Board Dimensions	36x36x10mm
Weight	6.8g (without connectors)
### 2. Power Management Features
Feature	Specification
-----------------------	----------------------------------------
Integrated PDB	Direct battery-to-ESC connection
Voltage Monitoring	0.01V resolution sensor
Current Sensing	150A max w/ ±0.5% precision shunt
Surge Protection	30V TVS diodes on all inputs
Reverse Polarity	Protected all power inputs
### 3. Safety & Redundancy Systems
#### Flight Controller Protections
Protection Type	Specification
--------------------------	--------------------------------
Dual IMU Failover	Automatic <50ms switch
Voltage Spike Filtering	30V clamping
Gyro Noise Reduction	95% reduction @10kHz
MCU Over-temperature	85°C throttle reduction
#### Power Safety Protections
Protection	Threshold
--------------------	-----------------
Low Voltage Cutoff	Configurable 2.8-3.6V/cell
Overcurrent	150A sustained
Short Circuit	Hardware level
### 4. Environmental Specifications
Parameter	Operating Range
-------------------	----------------------
Temperature	-20°C to +70°C
Humidity	5% to 95% non-condensing
Altitude	-100m to 4000m
Vibration	10G (20-2000Hz)
### 5. Accessories Package
• 1x SH1.0-8pins silicone cable (7cm, reversed)
• 1x SH1.0-6pins silicone cable (12cm, reversed)
• 1x SH1.0-4pins silicone cable (12cm, reversed)
• 1x SH1.0-3pins silicone cable (10cm, reversed)
• 1x SH1.0-2pins silicone cable (12cm, single-end)
• 5x M3*10mm shock-absorbing balls
• 1x 1000UF 35V 10*20mm electrolytic capacitor
• 1x XT60-male 12AWG silicone cable 15cm length
• 5x M3*8mm shock-absorbing ball
### 6. Connection Diagram
