85A 4-in-1 BLHeli_32 ESC for FPV Drone

Name: 85A 4-in-1 BLHeli_32 ESC for FPV Drone
SKU: 38682
Price: 49.99 USD
Availability: InStock

High-performance 4-in-1 electronic speed controller utilizing the AT32F421K8U7 ARM Cortex-M4 MCU.

Designed by ChatRobotic FPV Drones in China

85A 4-in-1 BLHeli_32 ESC for FPV Drone 1

85A 4-in-1 BLHeli_32 ESC for FPV Drone 2

85A 4-in-1 BLHeli_32 ESC for FPV Drone 3

85A 4-in-1 BLHeli_32 ESC for FPV Drone 4

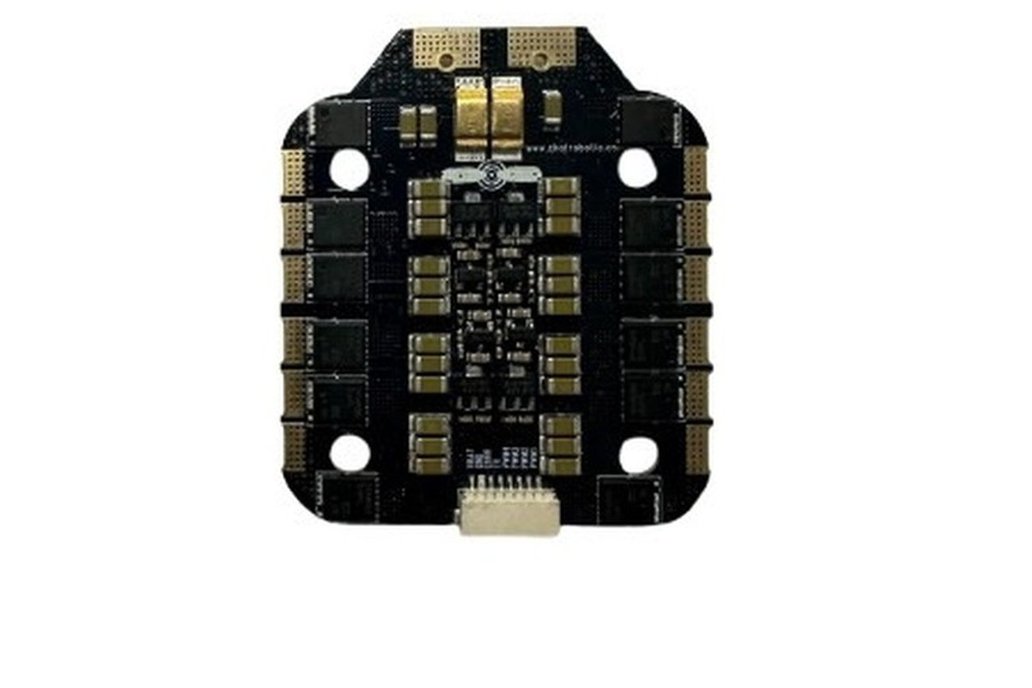

2025-05-10T01:59:16.607Z-85A 4in1(2).jpg

2025-05-10T01:59:16.607Z-85A 4-in-1 ESC 3.png

2025-05-10T01:59:16.607Z-85A 4-in-1 ESC 4.png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

High-performance 4-in-1 electronic speed controller utilizing the AT32F421K8U7 ARM Cortex-M4 MCU.

85A 4-in-1 ESC (AT32F421K8U7) Technical Brief Overview High-performance 4-in-1 electronic speed controller utilizing the AT32F421K8U7 ARM Cortex-M4 MCU, designed for 5-8S FPV drones requiring ultra-f…

85A 4-in-1 ESC (AT32F421K8U7) Technical Brief

Overview

High-performance 4-in-1 electronic speed controller utilizing the AT32F421K8U7 ARM Cortex-M4 MCU, designed for 5-8S FPV drones requiring ultra-fast response and robust power delivery.

1. Core Specifications

Parameter	Specification
MCU	AT32F421K8U7 (120MHz Cortex-M4)
Continuous Current	85A/channel (4-in-1 total 340A)
Instantaneous Current	110A/channel (10sec)
Input Voltage	3S-8S (12.6-33.2V)
PWM Frequency	8-48kHz (programmable)
Protocols	DShot150/300/600/Multishot/Oneshot/PWM
Dimensions	54×45×8mm
Board Weight	16g

2. Key Features

Power Stage

MOSFETs: 12× TPHR8504PL (0.7mΩ Rds(on))
Capacitance:
30× 22μF 35V ceramic capacitors
1× 1000μF 50V electrolytic capacitor
Power Supply: Quad-isolated LDO design
Current Sensing: High-precision (±1% error)

Control System

MCU Performance:
120MHz clock speed
Single-cycle 32-bit multiplier
Hardware FPU
Update Rate: 32kHz signal processing
Response Latency: <5μs

Protections

Overcurrent (Hardware + Software)
Overtemperature (Throttle derating @85°C)
Voltage spike protection (40V transient)
Motor short-circuit detection

3. Firmware Details

Feature	Implementation
Base Firmware	AM32_AORC_K_A_F421_2.16.hex
Startup Time	<0.5s (Power-on to Ready)
Motor Compatibility	700KV - 3000KV
Telemetry	Bi-Directional DShot (RPM/Voltage)
Tuning	ESC-Configurator / Betaflight Passthrough

4. Accessories Package

1× 1000μF 50V electrolytic capacitor
4× M3×8mm shock-absorbing balls
1× XT60 male 12AWG silicone cable (15cm)
1× SH1.0-8pin reverse silicone cable (10cm)
