PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt

Name: PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt
SKU: 37142
Price: 11.40 USD
Availability: InStock

A much simplified USB-C PD and PPS trigger board. Allow users to select arbitrary voltage from PPS-capable power brick via potentiometer

Designed by CentyLab LLC in United States of America

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 1

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 2

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 3

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 4

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 5

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 6

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 7

PPSTrigger V1.2 - USB PD/PPS trigger Constant Volt 8

2025-01-12T22:03:40.504Z-Untitled design (3).png

2025-01-12T22:03:40.504Z-Untitled design (5).png

2025-01-12T22:03:40.504Z-Untitled design (4).png

2025-01-12T22:03:40.504Z-Untitled design (6).png

2025-01-12T22:03:40.504Z-Untitled design (7).png

2025-01-12T22:11:52.021Z-Untitled design (8).png

2025-01-12T22:11:52.021Z-Untitled design (9).png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A much simplified USB-C PD and PPS trigger board. Allow users to select arbitrary voltage from PPS-capable power brick via potentiometer

Note: Always test the output voltage before plugging in your device. STEP file for PPSTrigger V1.2 What is included 1x PPSTrigger V1.2 1x Screw terminal 5mm 2x Screw M2x6mm Specification Tested US…

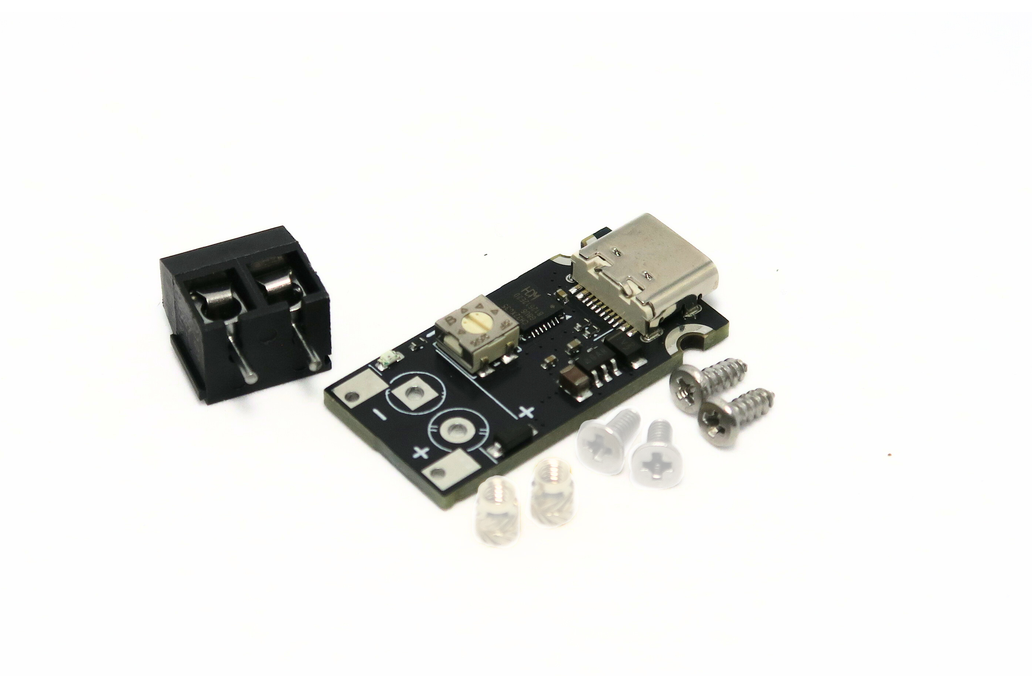

What is included

1x PPSTrigger V1.2
1x Screw terminal 5mm
2x Screw M2x6mm

Specification

Tested USB PD3.0 and USB PD+PPS from 3.3V to 20V @ 5A continuous. Actual voltage and current output depend on your charger.

Please check the recommended charger if you don't already have one.

How to use the board

Default (no jumper): Always able to adjust voltage through potentiometer
5V jumper: Request constant 5V
9V jumper: Request constant 9V
12V jumper: Request constant 12V
15V jumper: Request constant 15V
20V jumper: Request constant 20V
Pot jumper: Read the potentiometer at start-up and request this voltage. Voltage is not changeable during normal operation

The board will prioritize PPS protocol first before request using the fix voltage PDOs.

Recommended/Tested USB-C Charger

UGREEN 100W - PPS 3.3 - 21.0 @ 3A
ANKER 737 (GaN Prime 120W) - PPS 3.3 - 11.0 @ 3A
UGREEN 140W - PPS 3.3 - 21.0 @ 5A
AOHI Magcube 140W - PPS 3.3 - 21.0 @ 5A
Anker 737 Power Bank - PPS 3.3 - 21.0 @ 5A

Many Anker charger/power banks do not include PPS capability in their marketing document. Their IQ3 and IQ4 standard support PPS up to at least 11V. IQ1 and IQ2 has not been tested.

Dimension

Power Supply 3D Base

Download base STL file and order the voltmeter on Aliexpress

Case for PS2 Slim Adapter - Makerworld

Change Destination Country:

CentyLab LLC Shipping Policy:

Within the US: Sale tax is not included and tracking will be provided. Delivery time: 2-6 days

Outside of the US: Customers might have to pay customs fees and VAT fee. Delivery time: 2 weeks - 4 weeks. To-door tracking is available for most country.
