What is it?

A custom carrier for the Raspberry Pi CM5, based on the latest Cybert. 3.0 project, but now in a very compact form factor!

Why did you make it?

I've always wanted a slim carrier that has enough ports and built-in power, but no one has made one. This ultimate carrier has everything anyone would need for a custom project or cyberdeck.

What makes it special?

It has all the features you would need and is very small

Here is a polished product listing for your CyberT. AIO IO Board—optimized for store pages, SEO, and technical clarity:

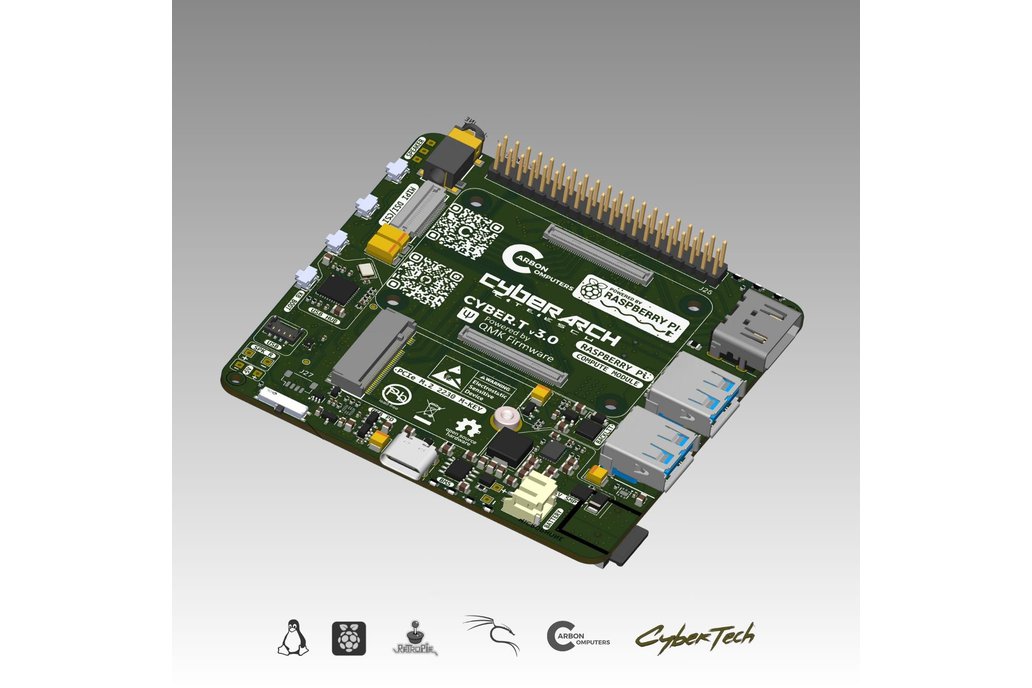

CyberT. AIO IO Board – Compact 84×84mm Carrier for Raspberry Pi CM5

The CyberT. AIO IO Board is a powerful, feature-rich carrier board designed for the Raspberry Pi Compute Module 5, offering all the core functionality of the CyberT. handheld—now in a compact and modular 84 × 84 mm form factor.

Perfect for makers, developers, embedded engineers, and system integrators looking to build custom handhelds, cyberdecks, controllers, or IoT devices.

⭐ Key Features

🔌 2× USB 3.0 Ports (High-Speed)

Connect peripherals, storage, WiFi adapters, SDR devices, and more with stable 5 Gbps performance.

📶 M.2 Slot (2230/2242)

Supports: SATA SSDs AI acceleration modules LoRa cards 4G LTE modems * Custom expansion modules

🔋 Integrated BMS + Battery Status

Onboard Battery Management System for safe charging & power delivery. Battery status pads allow LED/indicator integration.

🖥️ Display Support

• DSI Display Connector for native Pi displays
• Optional HDMI support via board variants Perfect for custom screens, handheld devices, and embedded UIs.

📸 CSI Camera Port

Attach official Raspberry Pi cameras or third-party CSI modules for vision projects or field imaging.

🎧 Audio Ready

• Onboard stereo amplifier
• Left/Right speaker outputs
• Microphone support depending on configuration Ideal for communication tools, portable consoles, or voice-enabled projects.

🧠 Expandable & Maker-Friendly

Featuring: 40-pin GPIO Header USB pads for internal mods and 2x USB 3.0 Power rails labeled for easy integration Internal connectors for keyboards, sensors, and peripherals * Electrostatic protection zones & labeled vias Everything is designed for modders, tinkerers, and embedded developers.

💾 MicroSD Card Slot

Boot or swap Linux distros easily. Perfect for: Pi OS Ubuntu Kali Parrot * Custom embedded systems

SD swapping lets you change OS instantly—great for testing and development.

🔧 Compact 84×84 mm Footprint

Small enough to fit: Handheld builds Portable terminals Robotics IoT enclosures 3D-printed cyberdeck shells Industrial modules

Despite the size, this board packs everything needed for a full Linux workstation.

🛠️ Use Cases

The CyberT. IO Board is perfect for: Custom cyberdeck builds Portable Linux terminals Field diagnostic tools Networking devices IoT gateways Robotics controllers Learning platforms Manufacturer/integrator product development

📦 What You Need to Complete It

• Raspberry Pi Compute Module 5
• Battery (LiPo with JST 2.0)
• Display (DSI or HDMI version)
• Mini speaker pair (optional)
• MicroSD card
• M.2 expansion module (optional)

Build Your Own Cyberdeck or Create Something New This board delivers all the power of the CyberT. handheld—without the enclosure—giving builders the freedom to create custom tools, devices, and systems with a robust, feature-dense CM5 foundation.
