This new power supply is compatible with all models of FZ-10 consoles. Mainly, it is most useful for people who want to convert 100-120v variants to be compatible with 230v adapters, but you can also upgrade it if you wish to reduce heat produced by original psu for example. It is relatively easy to install, and will work with any 12v 3A adapter that is center-positive meant for standard 5.5 by 2.1 mm plug. For the USB-C variant you will need a PD charger that can output at least 12v at 2 amps (about 25-30W minimum).

I am offering several options:

*Basic option is the PSU itself + basic DC Jack. - 45 euros. (53 US dollars).

*For 5 euros extra (6 US dollars) you can get a USB-C PD variant. You will need a PD charger that can output at least 12v 2 A (about 25-30W minimum).

*For 20 euros extra (24 US dollars) you can get the PSU + genuine high quality power adapter + both plug types.

Technical specs shortly:

The original PSU can deliver 3A on 5v rail and 1A on 9v rail. The DC bucks I have installed here use TPS54560 IC, which can handle 5A max output on each rail. So it is rated for far higher load, therefore is safe to use. I have also installed a heatsink and a safety fuse. For more details, you can check out TPS54560 datasheet.

Installation instruction:

-Remove the power switch and AC input plug from the case. Remove the big metal shield to the right of the power supply. Then unplug the flat cable and remove the original power supply. Be careful touching the hot side as the main capacitor may store high charge. Do not touch the power supply right after the console was powered on. Wait at least 5 minutes to discharge!!!

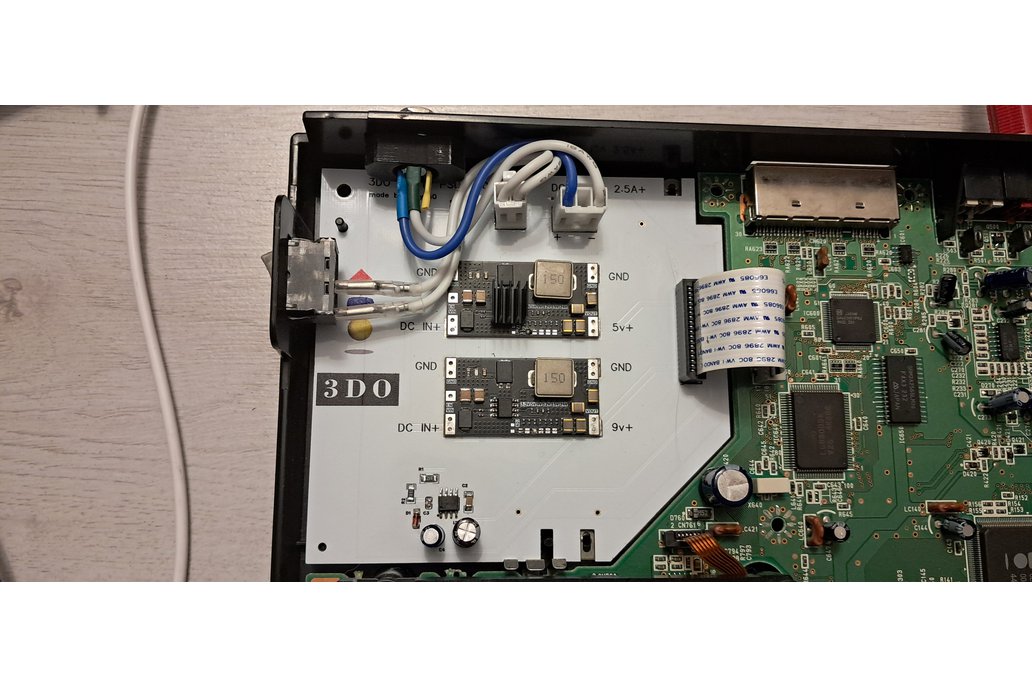

-Insert the new power supply.

-Plug two white wires into the power switch (wire order does not matter)

-Insert input port plastic into the slot where AC plug used to be. Insert the two white connectors to the PSU, and finally connect the flat cable.

-Reassemble the console. That's it.

IMPORTANT: Adapters that output over 16v are not guaranteed to work, it will likely trigger the fuse (which will self-reset once you remove incompatible adapter).
