This product is similar to Arduino Pro Mini Scoreduino P10 scoreboard module

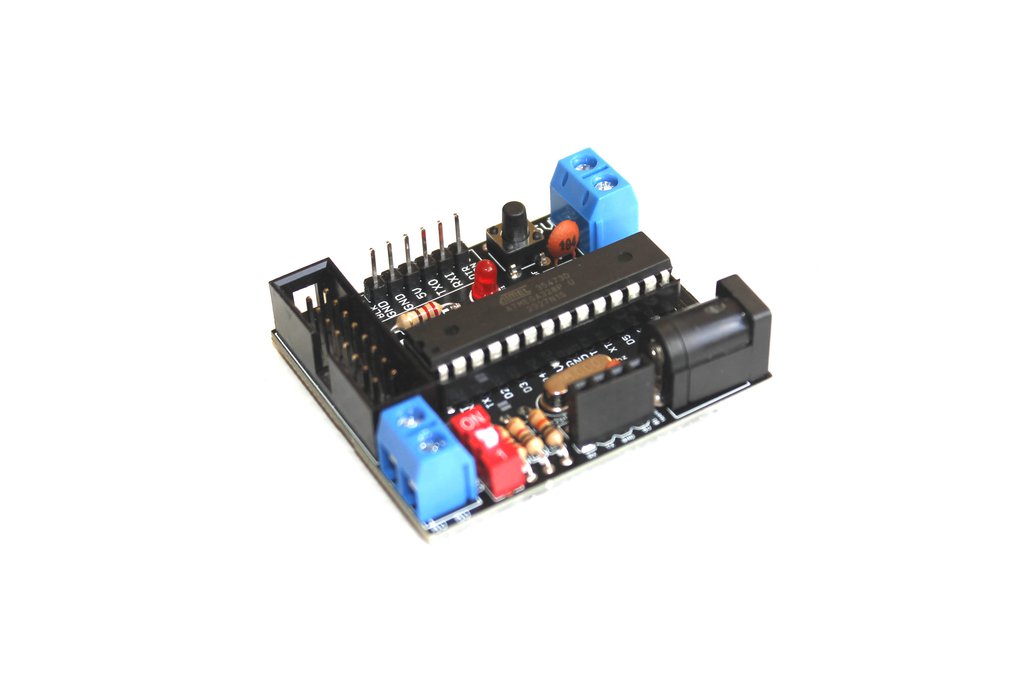

The Scoreduino DMD P10 module is a highly versatile component designed to facilitate the creation of various types of scoreboards. Controlled via Bluetooth using the Scoreduino app, this module provides an easy-to-use interface for managing your scoreboard preferences.

Key Features:

• Versatile Applications: Ideal for general scoreboards with timers and specialized boards for sports like cricket, football, and tennis.
• Live Score Updates: For cricket, the module can fetch live scores from platforms like cricclubs.com, and playhq.com, using the Scoreduino Android app.
• Scalability: The modular design allows for both large and portable setups. Each module delivers a specific output, with 27+ different options available.

How to Use:

- Prepare the Scoreboard Unit: Assembly documents are available for various types of scoreboards.

- Connect the Scoreboard Unit: Attach it to the Scoreduino DMD module.

- Power Up: Turn on both the module and the scoreboard unit.

- Operate: Use the Scoreduino App to control the scoreboard.

Package Includes:

• 1 x Fully Assembled Module: Preloaded with a program of your choice (27 output options available, 1 output per module).

• 1 x HC-06 Bluetooth module

  Note: Displays must be purchased separately.

Additional Information:

- 1 Module, 1 Output Policy: Each module is designed to deliver one specific output. - Scalability Requirement: To achieve all 27+ outputs, you need to purchase 27 modules. - No Code Sharing: We do not share the sketches/codes of our scoreboards.

Possible outputs listed on TINDIE: Common feature: All counters, timers and scoreboards are controlled with Scoreduino Android Apps. Communication medium is Bluetooth.

• 32cmx16cm- 3 digits up and down counter
• 32cmx16cm- Basic LIVE Cricket Scoreboard
• 64cmx32cm- Basic Table Tennis Scoreboard
• 64cmx48cm- Large Cricket Scoreboard
• 64cmx48cm- Large Soccer/Football Scoreboard
• 32cmx32cm- DIY Digital Cricket Scoreboard Module
• 48cmx32cm DIY Digital Soccer Scoreboard
• 48cmx32cm DIY Digital Cricket Scoreboard

For a comprehensive list of available outputs and functionalities, please refer to our documentation page. Customization Inquiry: To better serve your needs, please let us know the specific colors and outputs you are looking for, as it is challenging to display all varieties here.

Output videos: Check out video playlist with 27+ outputs
