DIY Digital Cricket Scoreboard Module- 32cmx32cm

Name: DIY Digital Cricket Scoreboard Module- 32cmx32cm
SKU: 35040
Price: 29.95 USD
Availability: Discontinued

Use SCOREDUINO-DMD module to build your own unique digital cricket scoreboard using dot matrix. Operated with Android app via Bluetooth.

Designed by BuildCircuit in Australia

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From DIY Electronics

duckyPad Pro: Macro Scripting Beyond QMK/VIA

dekuNukem

$84.99

Bluetooth module VOLVO V50, S40, C30, C70, XC90

JustTech

$84.99

CURTA Mechanical Calculator

craftlab

$46.00

Unidarts N2 Conversion kit

Unidarts Workshop

$89.00

DIY Digital Cricket Scoreboard Module- 32cmx32cm 1

DIY Digital Cricket Scoreboard Module- 32cmx32cm 2

DIY Digital Cricket Scoreboard Module- 32cmx32cm 3

DIY Digital Cricket Scoreboard Module- 32cmx32cm 4

DIY Digital Cricket Scoreboard Module- 32cmx32cm 5

DIY Digital Cricket Scoreboard Module- 32cmx32cm 6

DIY Digital Cricket Scoreboard Module- 32cmx32cm 7

DIY Digital Cricket Scoreboard Module- 32cmx32cm 8

DIY Digital Cricket Scoreboard Module- 32cmx32cm 9

DIY Digital Cricket Scoreboard Module- 32cmx32cm 10

DIY Digital Cricket Scoreboard Module- 32cmx32cm 11

DIY Digital Cricket Scoreboard Module- 32cmx32cm 12

DIY Digital Cricket Scoreboard Module- 32cmx32cm 13

DIY Digital Cricket Scoreboard Module- 32cmx32cm 14


2024-06-29T22:22:54.001Z-manual scoreboard app.jpg












All the orders are shipped from Sydney, Australia.

Use SCOREDUINO-DMD module to build your own unique digital cricket scoreboard using dot matrix. Operated with Android app via Bluetooth.

The SCOREDUINO-DMD module, paired with dual P10 16x32 dot matrix displays, provides an easy solution for creating a unique cricket scoreboard. This scoreboard seamlessly presents live scores from cricclubs.com, and playhq.com(uses API). It cycles through total runs, wickets, and overs, displaying each metric for 2 seconds.

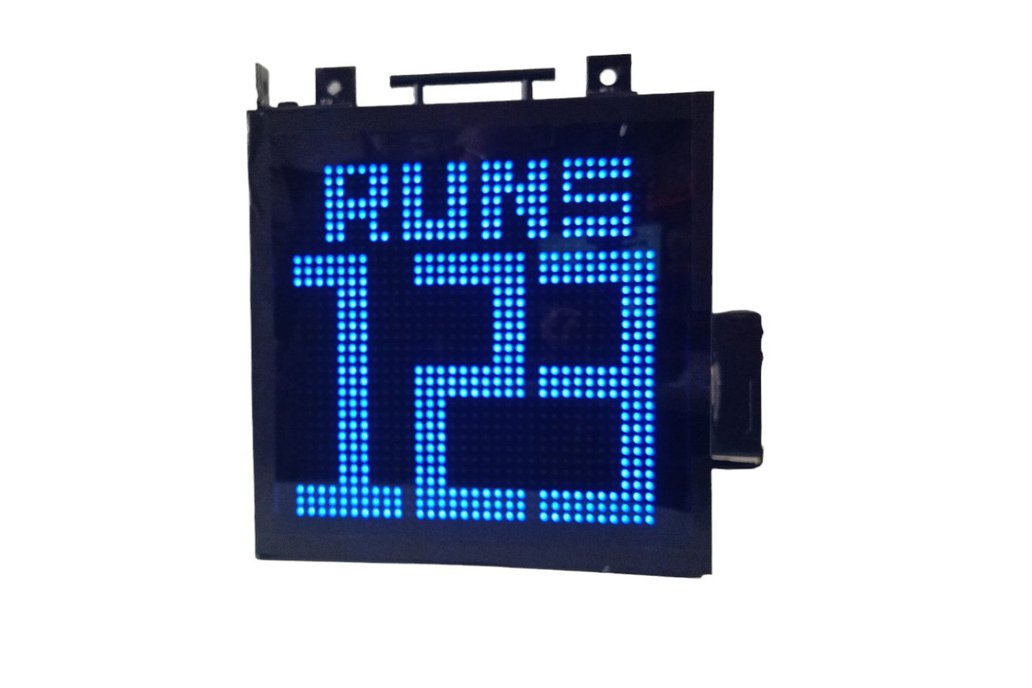

The scores are shown as, for example, 22R, 5W, 4.3 which means 22 runs, 5 wickets and 4.3overs. If the runs score exceeds 99, then, you will see RUNS text on top and when overs score exceeds 9, then, you will see OVER on top. Watch this video to understand.

It is possible to update the scores manually also using our app.

Download Manual score update app

Designed for both indoor and outdoor use, this scoreboard is easy to set up and operate. With dimensions of 32cm x 32cm, it is available in vibrant colors such as red, blue, white, green, and yellow. The scoreboard is managed through the user-friendly scoreduino-app, which uses Bluetooth connectivity for smooth communication between the scoreboard and the app. The app allows users to adjust the display's brightness levels effortlessly.

You can either purchase the Scoreduino-DMD module or purchase the entire set of components and accessories to build your own scoreboard. The enclosure is not included.

Package includes:

Option 1: Scoreduino P10 DMD Scoreboard Controller module + Bluetooth module ONLY The Scoreduino controller module comes preprogrammed to drive the scoreboard. Customers will need to purchase the P10 dot matrix displays and other accessories separately.

Option 2: Scoreduino P10 DMD Scoreboard Controller module + Bluetooth module + All accessories Excludes enclosure and acrylic.

Assembly tutorial

These parts are included

2 x OUTDOOR- Through hole- 32cmx16cm dot matrix display- choose your color
1 x 40cm long 16x2 IDC cable
1 x Box for keeping Scoreduino module (108mmx56mmx40mm)
1 x SCOREDUINO DMD Module
1 x 5V-6A Power supply EU/UK/USA/AU
1 x strips to join the displays
1 x Top carrier/ handle
1 x Bluetooth module
1 x DC barrel female
4 x Aluminium frames- each 40cm
1 x Metal bracket
1 x Nut bolts

Customers need to purchase front screen acrylic and timber and build their own wooden enclosure(40cm x 40cm). You will need drill machine, cutter, grinder, etc.

Option 3: Fully assembled scoreboard with wooden enclosure and acrylic. Customers don't need to do anything. NOTE: The scoreboard enclosure will be handmade, so, excellent output should not be expected.

This tutorial will help you assemble the parts

Download Manual score update app

NOTE: Our source codes are not shared. All the modules are preprogrammed
