Limited single board edition TrackSenger (WiFi-LoRa-BT-GPS) with mechanical keyboard
Designed by Bobricius in Slovakia
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Have you seen my other products? What you think? Your idea will be included in the next version! Fell free to write me. Anyway, your purchase or contribution via www.patreon.com/bobricius will help.

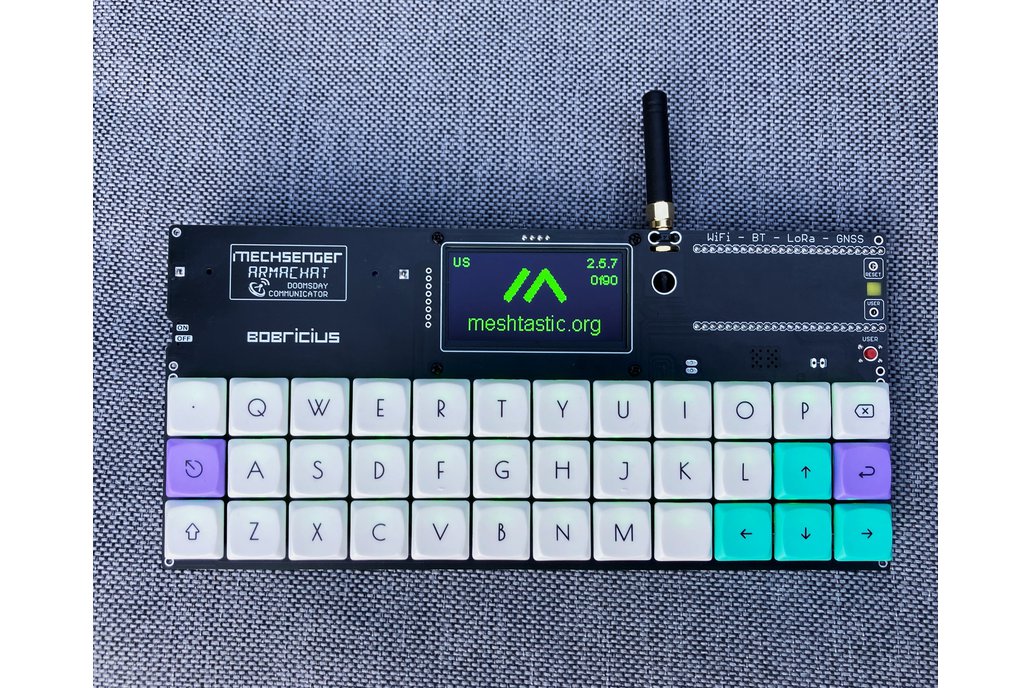

Assembly ready use variant: Currently for sale is: Assembled PCB with Heltec Tracker 915Mhz 2.42 inch Green OLED Display Kailh Choc Low Profile Switches - WHITE KEYCAPS white, green arrows, violet e…
Read More…Assembly ready use variant: Currently for sale is:
Note: The Heltec Tracker ALL IN ONE module is not included for bare PCB. Please purchase it directly from the manufacturer.
Or older PICOmputer 28 ESP32S3 + RFM95 LoRa
I am a backer and supporter of the Meshtastic project.
Keep in mind that this is a somewhat expensive project. Before you start, calculate the costs of the necessary components such as switches, keycaps, display, and tracker.
Bare PCB only, no components included. Images in the gallery are for inspiration.
For this project is better Tracker without screen, you can order NO SCREEN version or remove screen from board or with combination with OLED display, onboard screen is inactive and dark
Heltec TRACKER order link The package includes all necessary components: battery connector, antenna with SMA, and male headers.
If you plan to have backlit keys, remember to solder the LEDs before soldering the switches.
Chosfox WHITE keycaps are not transparent, led backlight is almost unless. Blacks are little better, I think usable are this Keycaps - white I have black variant, now is out of stock. Maybe this (untested) Kailh - 97pcs
Getting it up and running is simple. You will need to upload the firmware, but you can use the WebFlasher for that. Just select TrackSenger (big OLED).
If you have trouble getting a GPS signal, it might be because the tracker is on the bottom side of the PCB, causing the antenna to be slightly recessed and hindering signal reception. You can improve this by disconnecting the antenna from the tracker and giving it a small leg or by using an external antenna. The antenna uses just one wire but is attached with double-sided tape.
Kailh Choc Low Profile Switch:
Kailh Choc Low Profile Switch Keycaps:
