What is it?

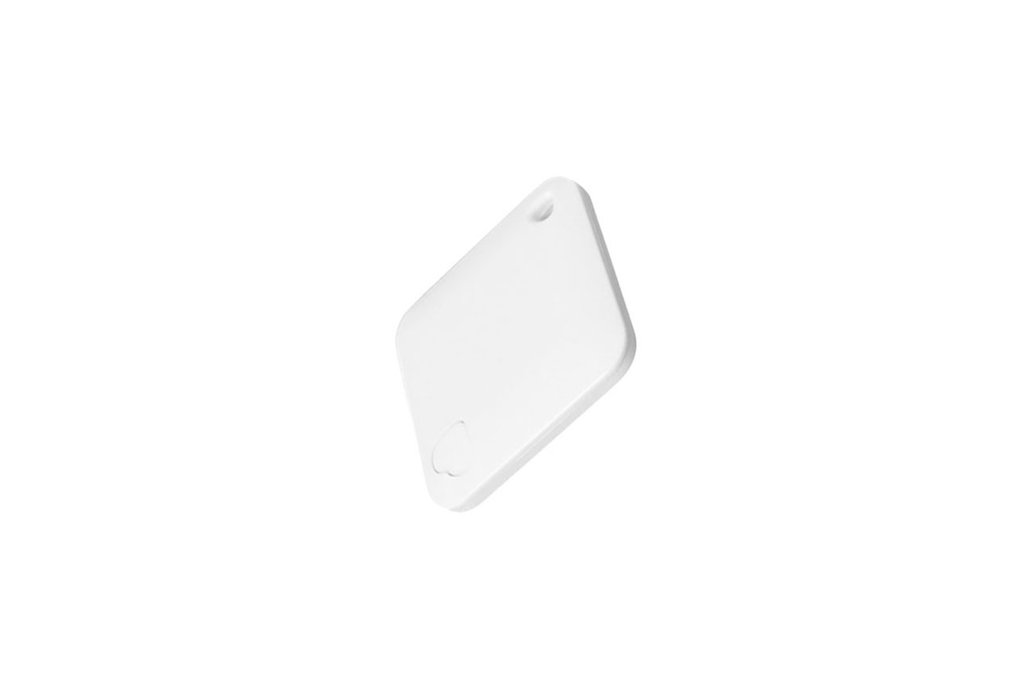

The TS-1105L is a lightweight, card-sized Bluetooth Low Energy (BLE) beacon engineered for seamless integration into IoT ecosystems. Operating on the Bluetooth 5.1 protocol, it broadcasts identifiers or sensor data at configurable intervals, enabling proximity detection and location-based services. Its ultra-thin design (46×41×6mm) and 7g weight make it ideal for discreet attachment to assets like equipment, inventory, or wearable devices.

Why did you make it?

Traditional BLE beacons often struggle to balance miniaturization with extended operational lifespan. The TS-1105L addresses this by optimizing the Dialog DA145 series chipset’s energy efficiency, allowing it to deliver ‌two-year battery life‌ on a single CR2032 cell even at a 1-second broadcast frequency. This reliability suits industries requiring maintenance-free tracking, such as logistics (monitoring high-value shipments) or healthcare (tracking portable medical devices).

What makes it special?

The TS-1105L combines industrial-grade performance with user-centric flexibility:

Battery longevity‌: The replaceable CR2032 battery sustains ‌24-month operation‌ without frequent replacements, reducing downtime in large-scale deployments. Adjustable transmission‌: TX power tunable from ‌-19.5 dBm‌ (energy-saving mode) to ‌+2.5 dBm‌ (maximizing 60m line-of-sight range). Protocol versatility‌: Supports iBeacon, Eddystone, and custom data formats, ensuring compatibility with iOS, Android, and IoT gateways. Robust certifications‌: Complies with FCC, CE, and SRRC standards for global deployment, while RoHS/REACH certifications guarantee environmental safety. Customization options‌: Available in white or OEM-specified colors, with branded packaging and firmware tuning for specialized use cases.

Technical advancements‌:

OTA firmware updates‌: Remote configuration and security patches eliminate physical maintenance needs. Durable construction‌: IP54-rated casing (implied by industrial certifications) resists dust and moisture in harsh environments. Low-latency performance‌: Bluetooth 5.1 enhances connection stability in RF-congested areas like warehouses or smart buildings.

Designed for scalability, the TS-1105L serves as a foundational component in asset management networks, enabling real-time visibility across supply chains, retail floors, or smart city infrastructure. Its blend of compactness and endurance positions it as a cost-effective solution for enterprises transitioning to IoT-driven operations.
