What is it?

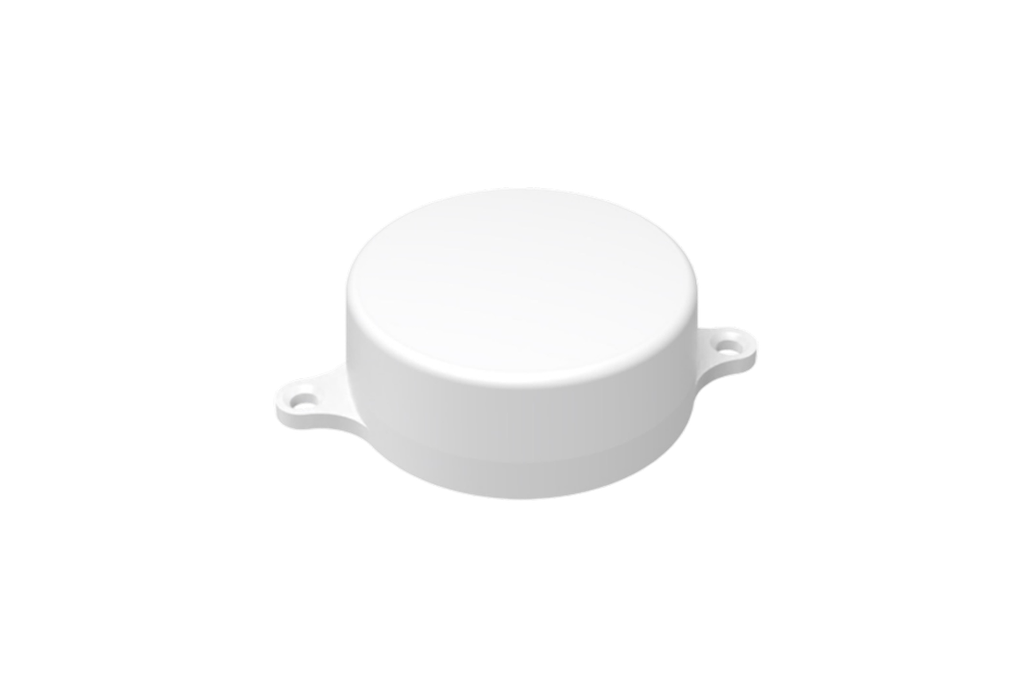

The TS-1102L is a cost-effective Bluetooth 5.1 positioning beacon designed for high-precision indoor/outdoor tracking and proximity-based solutions. Built with an ‌IP67-rated rugged casing‌ and an ultra-low-power chipset, it broadcasts location data over ‌120m‌ in open areas, serving as a foundational node for IoT ecosystems in retail, logistics, smart buildings, and public spaces. Its ‌glue/screw-mountable design‌ allows flexible deployment on walls, machinery, or mobile assets, supporting use cases from museum navigation to worker safety monitoring.

Why did you make it?

Existing Bluetooth beacons often compromise between durability, battery life, or signal range, especially in demanding environments like factories or outdoor sites. The TS-1102L eliminates these tradeoffs by combining a ‌5-year battery lifespan‌ (with optional 2400mAh battery) and ‌IP67 dust/water resistance‌ to withstand harsh conditions. Its design caters to industries needing maintenance-free, long-term deployments—such as tracking high-value equipment in construction zones or enabling hands-free visitor guidance in theme parks.

What makes it special?

The TS-1102L redefines value in Bluetooth positioning technology through its industrial-grade engineering:

Unmatched battery longevity‌: The replaceable ‌ER14250 lithium battery‌ lasts ‌5+ years‌ at default settings (+2.5dBm/1s broadcast), minimizing operational disruptions. Extended coverage‌: Bluetooth 5.1 and high-gain antennas enable ‌120m line-of-sight range‌, ideal for large warehouses or outdoor venues. Environmental resilience‌: IP67 certification ensures reliable operation in dusty, humid, or extreme-temperature environments (-20°C to +60°C). Dual installation modes‌: Secure attachment via industrial-grade adhesive or screw mounts for permanent/temporary deployments. Protocol versatility‌: Supports iBeacon, Eddystone, and custom data formats for seamless integration with third-party platforms.

Technical advancements‌:

Dialog DA145 chipset‌: Balances ultra-low power consumption with stable signal transmission, even in RF-congested areas. Adaptive TX power‌: Adjust from ‌-19.5dBm‌ (energy-saving mode) to ‌+2.5dBm‌ (maximizing range) to match deployment needs. Global compliance‌: Pre-certified with FCC, CE, SRRC, and RoHS for worldwide deployment. OTA updates‌: Remotely optimize firmware for new protocols or security patches without physical access.

Implementation flexibility‌:

Indoor navigation‌: Deploy in museums or airports for smartphone-guided tours. Asset security‌: Monitor tool locations in construction sites with geofence alerts. Smart retail‌: Trigger promotions when customers approach tagged merchandise. Workforce safety‌: Track personnel proximity to restricted zones via wearable integrations. OEM Customization Design‌: Choose white/black housings or request custom colors/logo printing. Software‌: Tailor broadcast protocols to align with proprietary gateways or analytics platforms. Packaging‌: Branded boxes or bulk configurations for enterprise clients.

Priced for scalability, the TS-1102L empowers businesses to build resilient IoT networks without sacrificing performance or budget—a future-proof solution for the connected world.
