Universal IR Infrared Remote Controller 20 Keys x2

Name: Universal IR Infrared Remote Controller 20 Keys x2
SKU: 40673
Price: 9.99 USD
Availability: InStock

Universal IR Infrared Remote Controller IR Extender Remote Learning 20 Keyboard Wireless TV Box MP3 Player

Sold By Bits4Bots

Universal IR Infrared Remote Controller 20 Keys x2 1

Universal IR Infrared Remote Controller 20 Keys x2 2

Universal IR Infrared Remote Controller 20 Keys x2 3

Universal IR Infrared Remote Controller 20 Keys x2 4

Universal IR Infrared Remote Controller 20 Keys x2 5

2025-11-17T00:07:30.053Z-IR Remote Application.png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Hello makers. Welcome to Bits4Bots. Hardware designed with you in mind.

Universal IR Infrared Remote Controller IR Extender Remote Learning 20 Keyboard Wireless TV Box MP3 Player

What is it? Description 20 button stereoscopic keypad with a soft feel. The size is 85mm x 39mm x 6mm. This remote controller with a standard 38K modulation frequency to accommodate a variety of infr…

What is it? Description

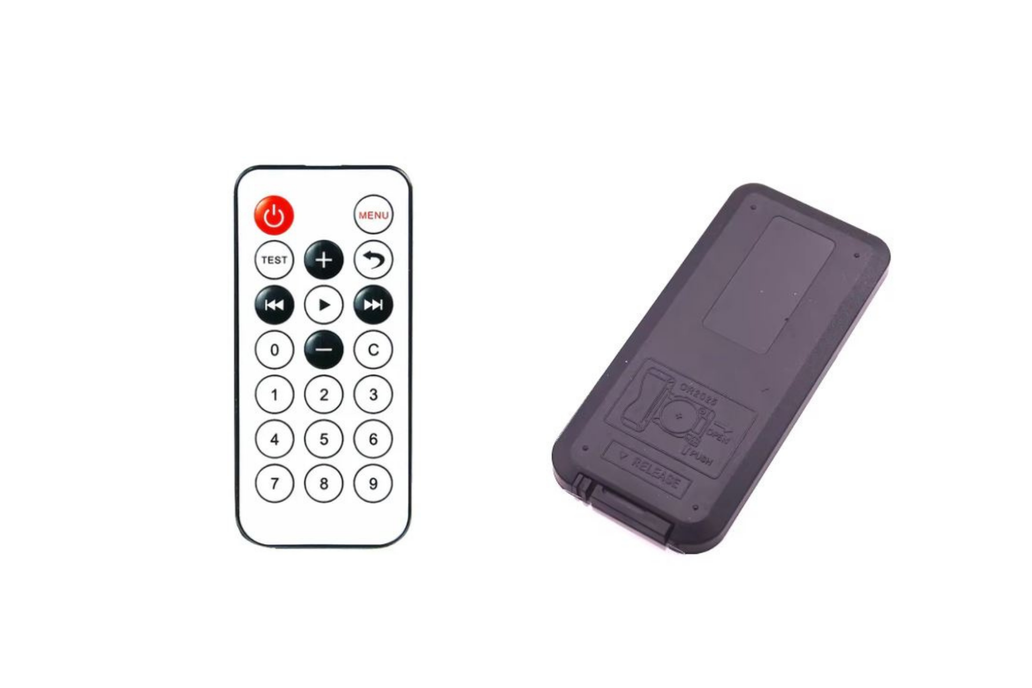

20 button stereoscopic keypad with a soft feel. The size is 85mm x 39mm x 6mm.

This remote controller with a standard 38K modulation frequency to accommodate a variety of infrared receivers on the market. It possesses 0-9 number keys, 4 direction keys, acceleration and deceleration, left and right rotation, lighting, sound and other buttons, which can be easily applied to various smart cars and development boards.

We will provide the code value of each button on the remote controller, as well as the infrared remote control code of the car below:

What is the hex code for programming?

ON- FFA25D
MENU- FFE21D
TEST- FF22D
PLUS- FF02FD
BACK- FFC23D
LEFT- FFE01F
PLAY- FFA857
RIGHT- FF906F
0- FF6897
MINUS- FF9867
C- FFB04F
1- FF30CF
2- FF18E7
3- FF7A85
4- FF10EF
5- FF38C7
6- FF5AA5
7- FF42BD
8- FF4AB5
9- FF52AD

What makes it special?

20 Key Multi-purpose IR Remote Controller

This 20 key IR remote controller is small in size and light in weight, but very functional for different purposes. Its controlling range is up to 8 meters under good conditions. Hobbyists can also use it to operate robotic chassis after configuring a signal receiver module.

Features: Frequency: 38k Controlling range: up to 8 meters Measurements: 86406mm Button Battery: CR2025 3V * 0.2 lb
