LiteWing PCB Bareboard Frame for Drone

Name: LiteWing PCB Bareboard Frame for Drone
SKU: 40681
Price: 26.99 USD
Availability: InStock

Bare PCB for the open-source LiteWing drone. Unassembled PCB and legs that acts as the robust frame for your ESP32 drone.

Designed by Bits4Bots in United States of America

LiteWing PCB Bareboard Frame for Drone 1

LiteWing PCB Bareboard Frame for Drone 2

LiteWing PCB Bareboard Frame for Drone 3

LiteWing PCB Bareboard Frame for Drone 4

LiteWing PCB Bareboard Frame for Drone 5

LiteWing PCB Bareboard Frame for Drone 6

LiteWing PCB Bareboard Frame for Drone 7

LiteWing PCB Bareboard Frame for Drone 8

LiteWing PCB Bareboard Frame for Drone 9

LiteWing PCB Bareboard Frame for Drone 10

LiteWing PCB Bareboard Frame for Drone 11

LiteWing PCB Bareboard Frame for Drone 12

LiteWing PCB Bareboard Frame for Drone 13

LiteWing PCB Bareboard Frame for Drone 14

LiteWing PCB Bareboard Frame for Drone 15

LiteWing PCB Bareboard Frame for Drone 16



2025-11-17T23:30:33.931Z-Length Dimensions.JPG

2025-11-17T23:30:33.931Z-Width Dimensions.JPG




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Hello makers. Welcome to Bits4Bots. Hardware designed with you in mind.

Bare PCB for the open-source LiteWing drone. Unassembled PCB and legs that acts as the robust frame for your ESP32 drone.

What is it? 1 BARE PCB and 4 landing legs that acts as both the robust frame for your LiteWing Drone ESP32-S3 build. Why did you make it? Aesthetic upgrade featuring a unique multicolor silkscreen f…

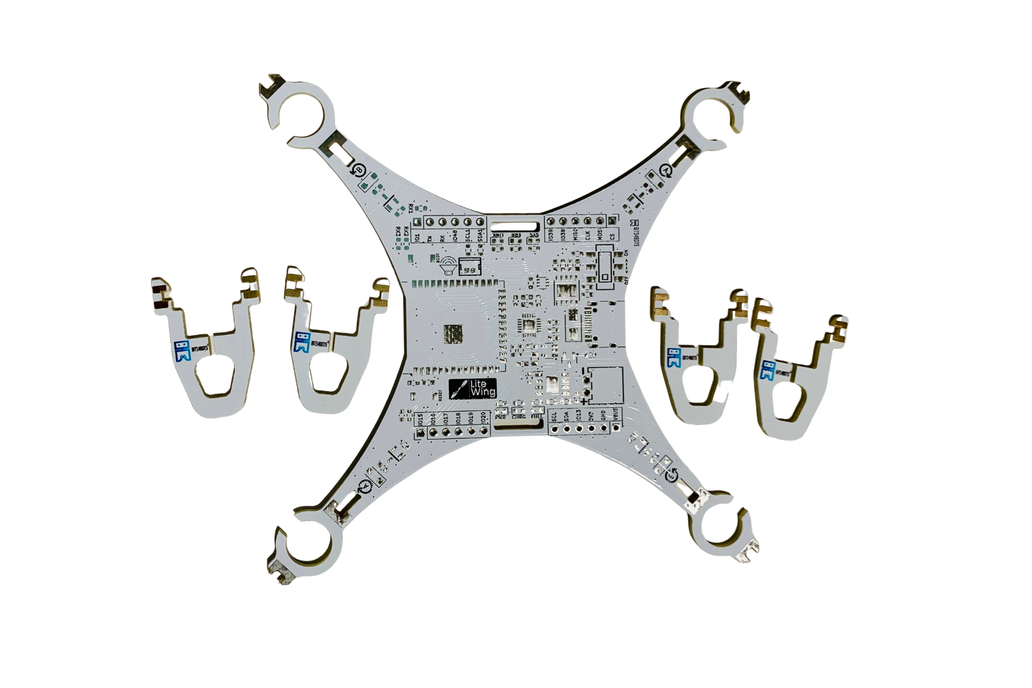

What is it? 1 BARE PCB and 4 landing legs that acts as both the robust frame for your LiteWing Drone ESP32-S3 build.

Why did you make it? Aesthetic upgrade featuring a unique multicolor silkscreen finish perfect for showcasing your build and to provide a starting point for students, hobbyist, and others.

What makes it special? Dual Functionality: Acts as both the lightweight, durable drone frame and the flight controller circuit board.

Open-Source Foundation: Fully compatible with the popular LiteWing ESP32 Project and its open-source firmware (Crazyflie compatible).

Ready for Assembly: Pre-designed for the ESP32-S3 module and common micro drone components (IMU, motor drivers, etc.).

Elevate Your DIY Drone Build with custom Bits4Bots aesthetics. The LiteWing drone project proves that powerful, hackable robotics don't need to be complicated or plan. This listing is for the Bare Printed Circuit Board (PCB), which serves as the essential foundation for building your own LiteWing drone. What makes this board unique is the premium multicolor silkscreen finish. This PCB is 100% compatible with the official LiteWing project design and documentation.

Build Your Own: Solder your own ESP32-S3 module, motors, and sensors onto this board to create a lightweight, fully programmable drone.

Learn and Hack: Ideal for educators and developers who want a hands-on understanding of quadcopter electronics and flight control. Use the open-source files and documentation to modify the circuit or develop custom features.

Cost-Effective Repairs: If your original LiteWing takes a hard crash, this bare PCB offers a cost-effective way to transfer your existing, working components to a brand-new frame/board. Don't just build a drone—build a beautiful, personalized flight machine.

📦 What's Included / What You Get (1) LiteWing Drone Frame & Flight Controller Bare PCB (Multicolor Silkscreen Edition) (4) Landing Feet

⚠️ IMPORTANT: What is NOT Included

This is a bare circuit board only. This listing does NOT include the following necessary components: Motors, Propellers, or Battery ESP32-S3 Module IMU Sensor (e.g., MPU-6050) Motor Driver MOSFETs or other SMD components.

Assembly, Soldering, or Technical Support (See the LiteWing documentation for assembly guides.)

The total estimated cost for all electronic and mechanical parts needed for assembly (excluding the battery) is approximately $32 USD.

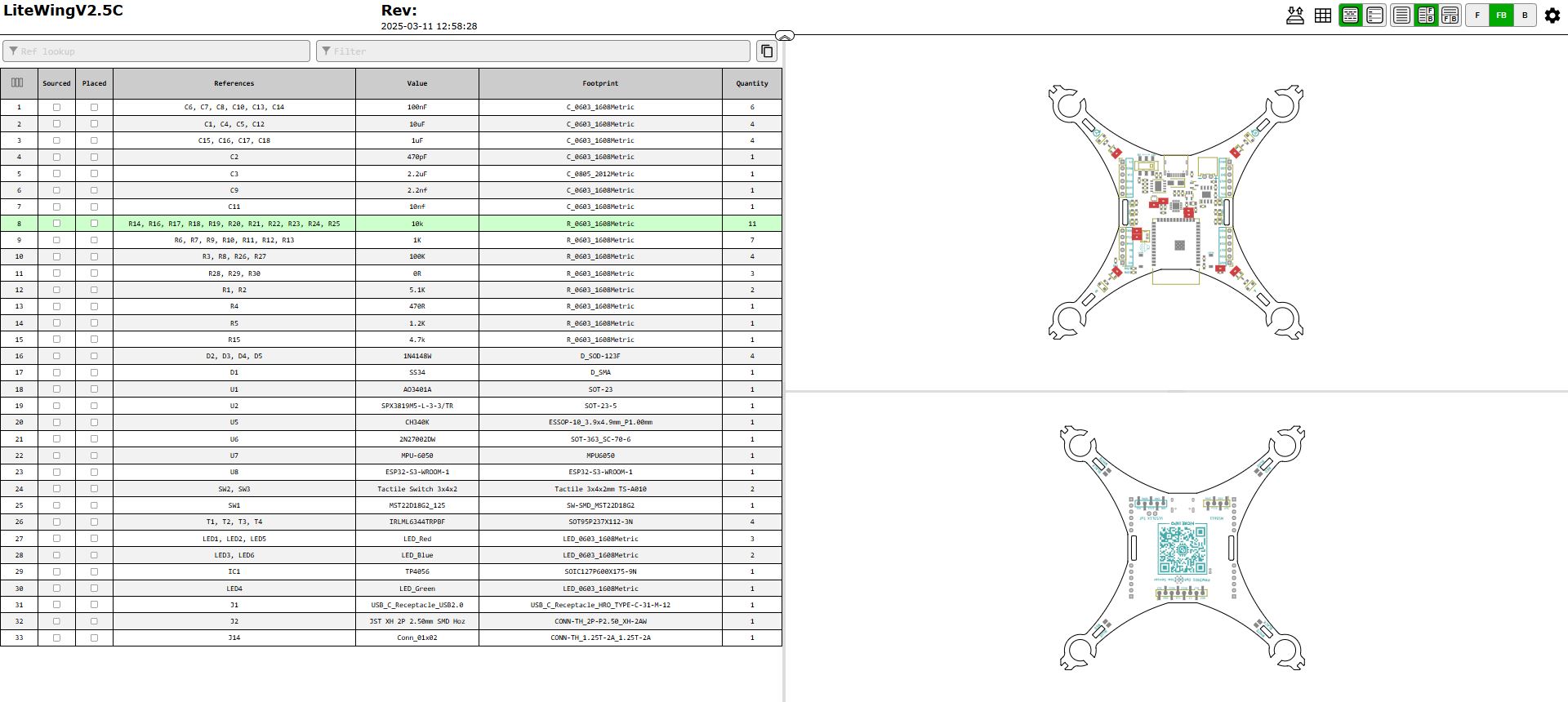

Estimated Component Cost Breakdown (Per Unit) The BOM lists the components soldered directly onto the custom PCB. For a ready-to-fly drone, you also need an Inertial Measurement Unit (IMU) sensor and the motors/propellers.

BOM

Follow this project for a respin using a replacement for the obsolete MPU6050.
