Infrared Remote Control Follower Robot

Name: Infrared Remote Control Follower Robot
SKU: 39618
Price: 50.00 USD
Availability: InStock

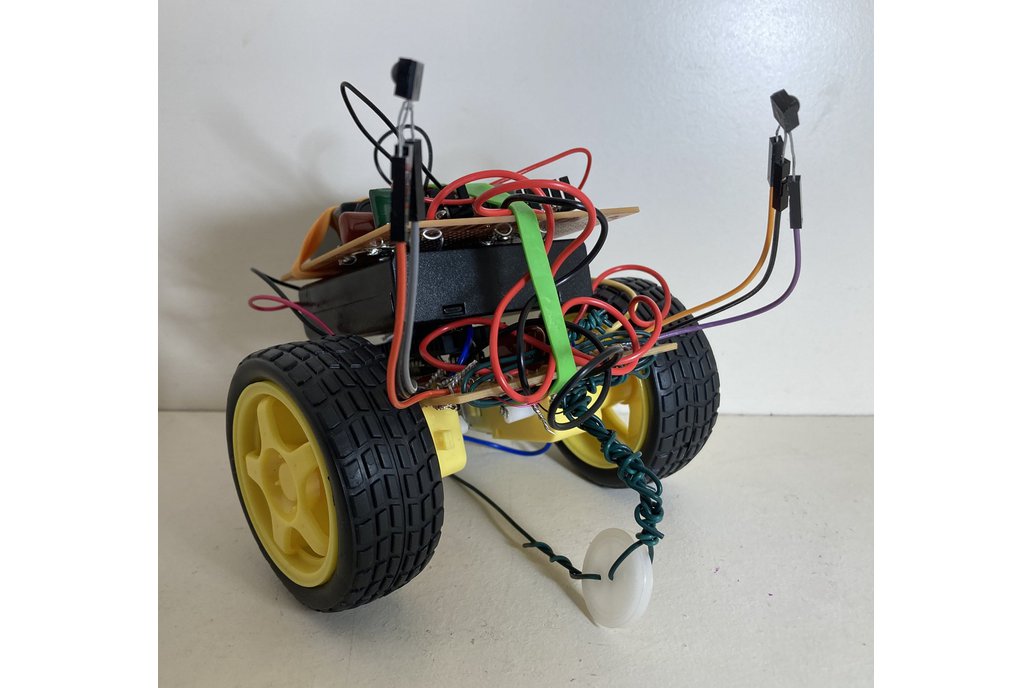

This remote controlled robot follows an infrared signal from remote control

Designed by Basic Mechanics in Australia

Infrared Remote Control Follower Robot 1

Infrared Remote Control Follower Robot 2

Infrared Remote Control Follower Robot 3

Infrared Remote Control Follower Robot 4

Infrared Remote Control Follower Robot 5

Infrared Remote Control Follower Robot 6

Infrared Remote Control Follower Robot 7

Infrared Remote Control Follower Robot 8

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 01 Toy.jpg

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 02 Step 01 Design the Circuit Photo 1.jpg

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 03 Step 01 Design the Circuit Photo 2.jpg

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 04 Step 01 Design the Circuit Photo 3.jpg

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 05 Step 02 Simulations.jpg

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 07 Step 03 Circuit 2.jpg

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 06 Step 03 Circuit 1.jpg

2025-08-05T05:57:14.443Z-Infrared Remote Control Follower Robot 08 Step 03 Circuit 3.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This remote controlled robot follows an infrared signal from remote control

What is it? This robot follows the infrared signal from the TV remote control. The robot has two infrared sensors at the front, one on the left side and one on the right side. The sensor on the left …

What is it?

This robot follows the infrared signal from the TV remote control. The robot has two infrared sensors at the front, one on the left side and one on the right side. The sensor on the left activates the right motor, and the sensor on the right activates the left motor. The geared motors are driven by L9110 Bridge Motor Driver ICs (one IC for each geared motor). The infrared receiver is connected to the diode capacitor circuit to increase the time the motor remains ON after receiving the infrared signal. I made this project with wire wrap wire and wire wrap sockets. This robot works well in open spaces or big rooms. It will not work well in a small room because of reflections from the walls; the robot will think that you are on the left side when you could be on the right side.

Why did you make it?

A few years ago, I created a similar project using a transistor motor driver; however, this time, I utilized ICs. More about that project is explained in this link: https://basic-mechanics.blogspot.com

This is a good prototype that can be turned into a popular toy product.

What makes it special?

At times, the robot is unsure where the infrared signal is coming from due to reflections from walls. It is a fun game to make it work and remove all obstructions that can cause reflections of the infrared signal.

You can see the YouTube videos of the robot working here:

https://www.youtube.com/shorts/3xqDu1L-Y_g

https://www.youtube.com/shorts/V0nG_rCB-UQ
