What is it?

🔥😎🏴‍☠️ WHIDBOARD: Plug it in, Set it up & Get ready to Hack! 🏴‍☠️😎🔥

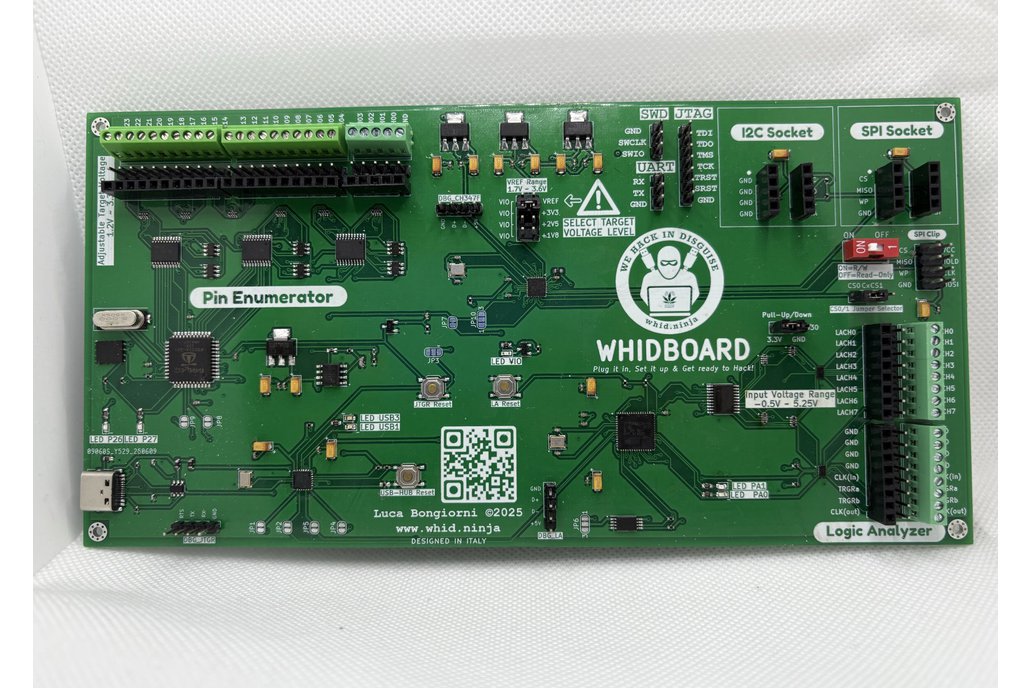

WHIDBOARD is the ultimate tool-suite for Hardware Hackers. It is designed to act as the perfect Swiss-Army-Knife for hacking any (I)IoT & Embedded devices. Thanks to its core controller (a.k.a. BRUSCHETTAPRO) it can support the interaction with multiple protocols (i.e. UART, SPI, I2C, JTAG & SWD) as well as different Logic Levels (i.e. 1.8V, 2.5V, 3.3V and the VREF of the target itself). Nonetheless, it also allows to enumerate UART, JTAG & SWD pins, thanks to its 24 channels Pin Enumerator feature, as well as the ability to act as a 8 channels Logic Analyzer at 24MHz.

Overview

✅ All-in-One solution for Hardware Hacking. No more need of multiple devices, debuggers, programmers, analyzers.

✅ Dedicated Live OS for Hardware Security pre-configured to work with WHIDBOARD. No assles for beginners to get ready! (available on Github's repo)

✅ I2C and SPI's DIP8 sockets for ease-of-use external adaptors for dealing with different IC's footprints (i.e. SOP8, SOP16, WSON8, etc).

✅ It can concurrently let the user communicate with different protocols (i.e. JTAG/SWD, UART, SPI, I2C, Logic Analyzer, Pin Enumerator) without switching between them.

More

• Size: 200mm x 100mm
• For More Details please check the document and video
