Double Side Thru-Hole Prototype ESPea Board

Name: Double Side Thru-Hole Prototype ESPea Board
SKU: 4567
Price: 1.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

(1 Review)

Double Side Thru-Hole Prototype ESPea Board for development

Designed by AprilBrother in China

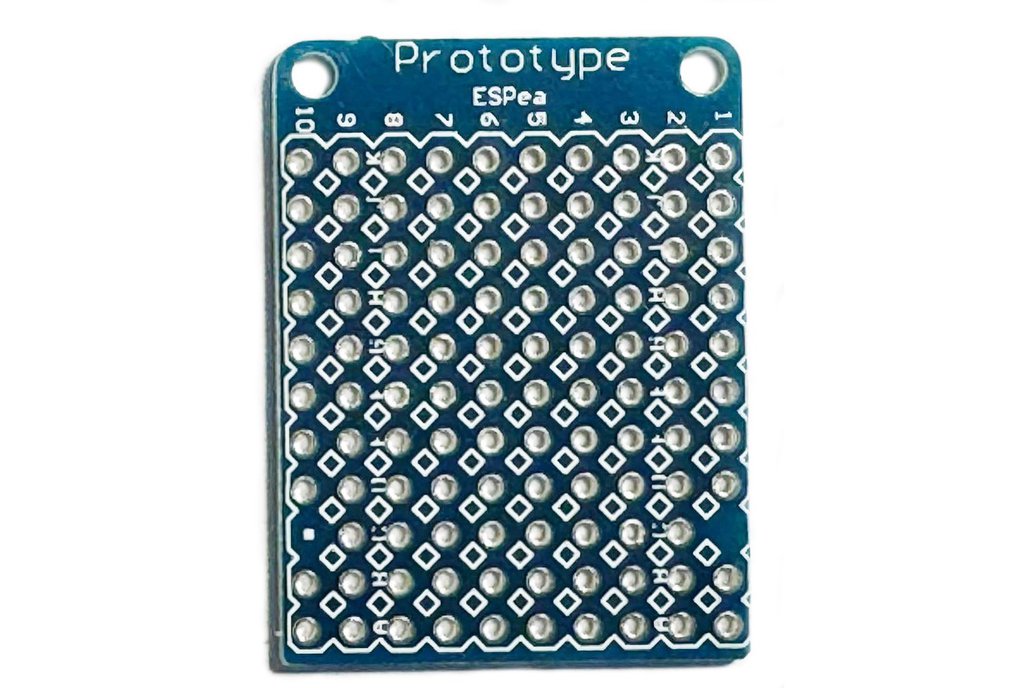

Double Side Thru-Hole Prototype ESPea Board 1

Double Side Thru-Hole Prototype ESPea Board 2

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Welcome to our store. Regular shipping takes about 10-20 days deliver, Any question, please feel free to contact us. Whatsapp：8613661293819

Double Side Thru-Hole Prototype ESPea Board for development

What is it? Tiny Double Side Thru-Hole Prototype PCB Board Why did you make it? The Prototype PCB Board for Pro Micro / Arduino Pro Mini / Cactus Micro allows easy prototyping using through-hole comp…

What is it?

Tiny Double Side Thru-Hole Prototype PCB Board

Why did you make it?

The Prototype PCB Board for Pro Micro / Arduino Pro Mini / Cactus Micro allows easy prototyping using through-hole components.

PART SPECIFICATIONS

SIZE 2.5 x 3.4 (cm)
THICKNESS 1.0(mm)
MATERIAL Glass Fiber
Plated Thru-Hole Yes

Package contains

Tiny Prototype PCB Board x 1

Change Destination Country:

Quantity	Price
1-4	$1.00
5-9	$0.95
10-19	$0.90
20+	$0.80

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (5.00)

Shipping: (5.00)

Communication: (5.00)

Maximilian | Jan. 31, 2017

Pro Mini-sized Protoboard

It's Pro Mini-sized.
Do we need any more explanation?
The size is enough for a few headers and some pullup/pulldown components,
so it's easy to build smaller sensor boards based on the pro mini-/pro micro-form factor.
I used it to make several small pro mini-shields for various sensors like mq-X's and bmpXXX's.
