What is it?

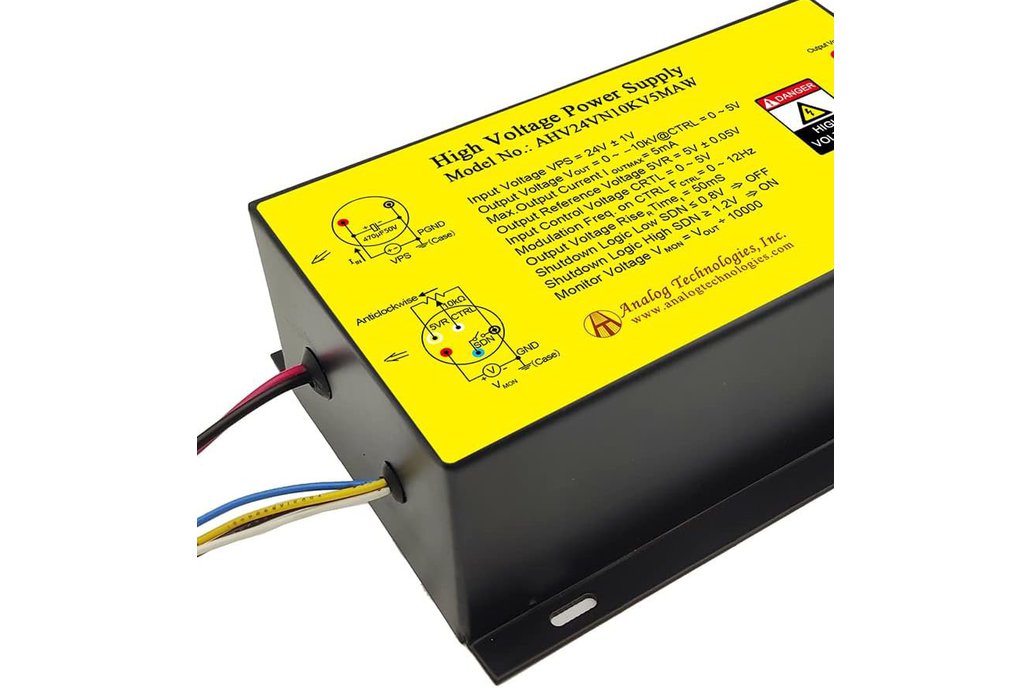

This is a high‑voltage DC‑DC converter module that transforms a standard 24 V DC input into a high‑voltage output up to 10 kV with a maximum current of 5 mA. Designed for reliability and compactness, this unit supplies stable and controllable high voltage suitable for various advanced electronics applications, R&D environments, lab setups, and specialized test equipment.

Why did you make it?

High voltage power supplies are often large, expensive, or difficult to integrate into custom systems. We developed this converter module to offer an affordable, precise, and compact high‑voltage source. Whether you’re a hobbyist engineer working on experimental physics projects or a professional integrating HV into industrial test rigs, this module simplifies design and saves space.

What makes it special?

Converts 24 V DC to up to 10 kV @ 5 mA with excellent stability

Compact size ideal for embedded systems

Adjustable control voltage input for fine‑tuning output

Metal enclosure with good heat dissipation

Great option for electrostatics, ion generators, HV research, and instrumentation

Made by Analog Technologies, Inc., specialists in high‑voltage electronic modules

⚠️ Safety Warning: This device generates dangerous high voltage. Only trained personnel should operate it with proper insulation and grounding. Always follow high‑voltage safety protocols.
