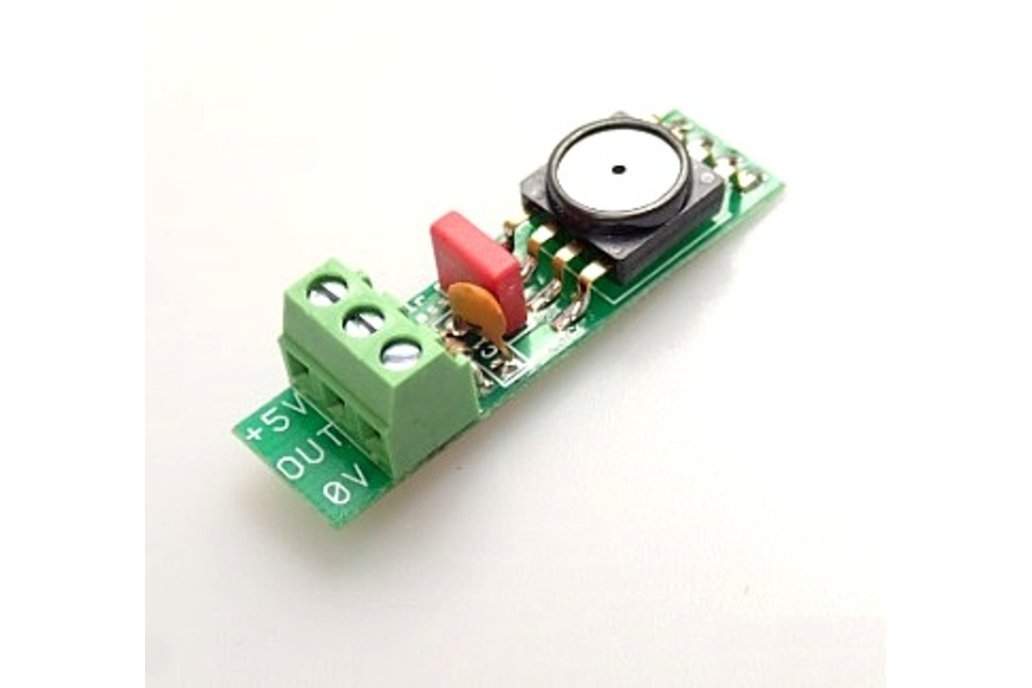

The Altonalab Air Pressure Sensor is an easy to use board that works within a range of 15kPa to 115kPa, with an accuracy of 1.5%. The board features a connector with three screws for ground, power (+5V), and signal output. The measured output voltage (Vout) of the sensor can be converted to kPa pressure using the expression: P = Vout/0.0045 + 100.55. If the Vout is measured with an ADC of 0-3.3V, an additional connector board with a resistor divider of 1.5k/3.0k is needed.

The sensitive element used is the MPXA6115A6U, which has an operating temperature range of 40C to +125C and is internally temperature compensated.

Below are described a few simple ways to connect the sensor to Numato 8 Channel USB GPIO Module with Analog Inputs:

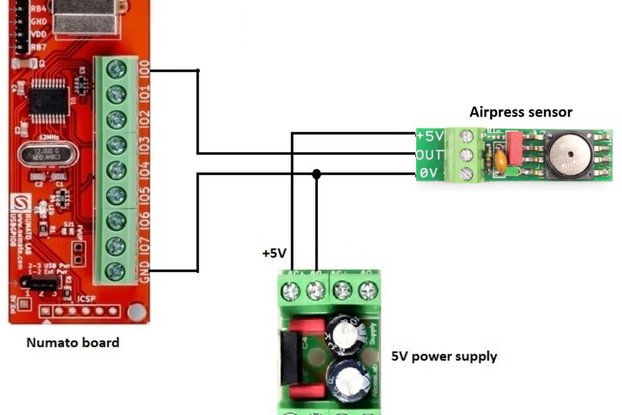

Connect the air pressure sensor directly to Numato controller:

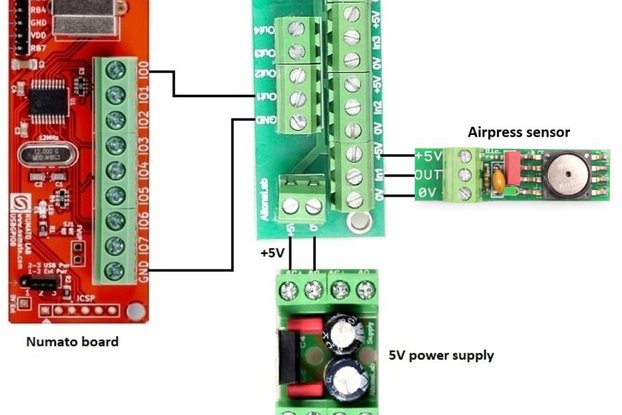

Connect the sensor to Numato board using AltonaLab Connector board for ADC 5V:

AltonaLab Connector board for ADC 5V is developed for fast connecting of up to 4 sensors with analog outputs.

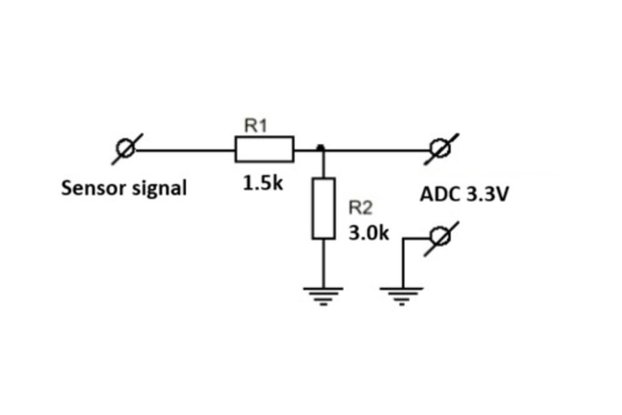

For applications with ADC 3.3V, the needed connector board has to be AltonaLab Connector board for ADC 3.3V or just use a resistor divider shown below:

Air pressure sensor and AltonaLab IoT software

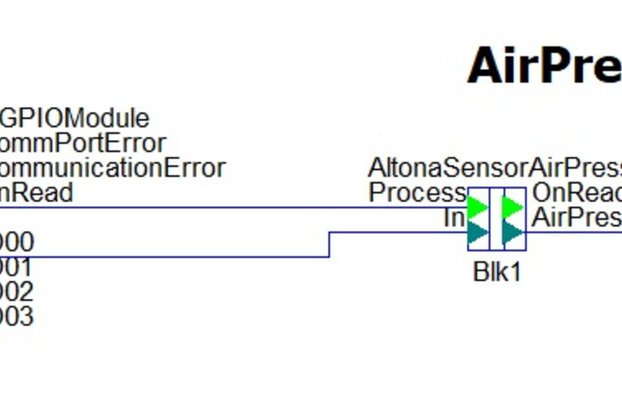

AltonaLab IoT software has special functional blocks for all the Numato controllers and for the air pressure sensor too: AltonaSensorAirPress, so everyone can very easy measure the air pressure using the diagram as shown below:
