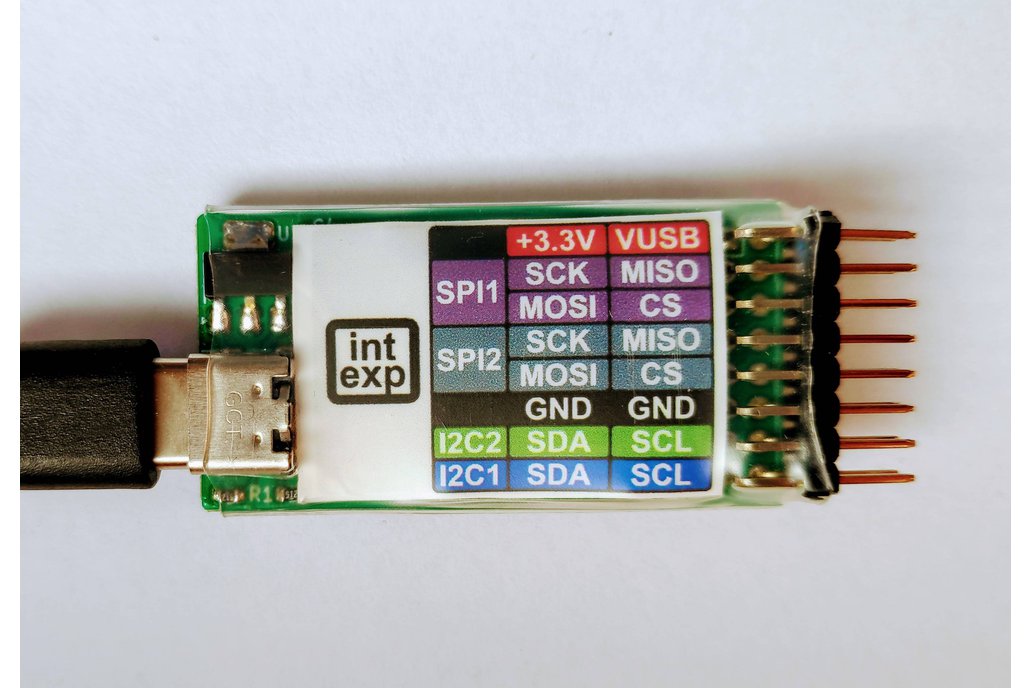

✨ A Handy Tool for I²C Projects

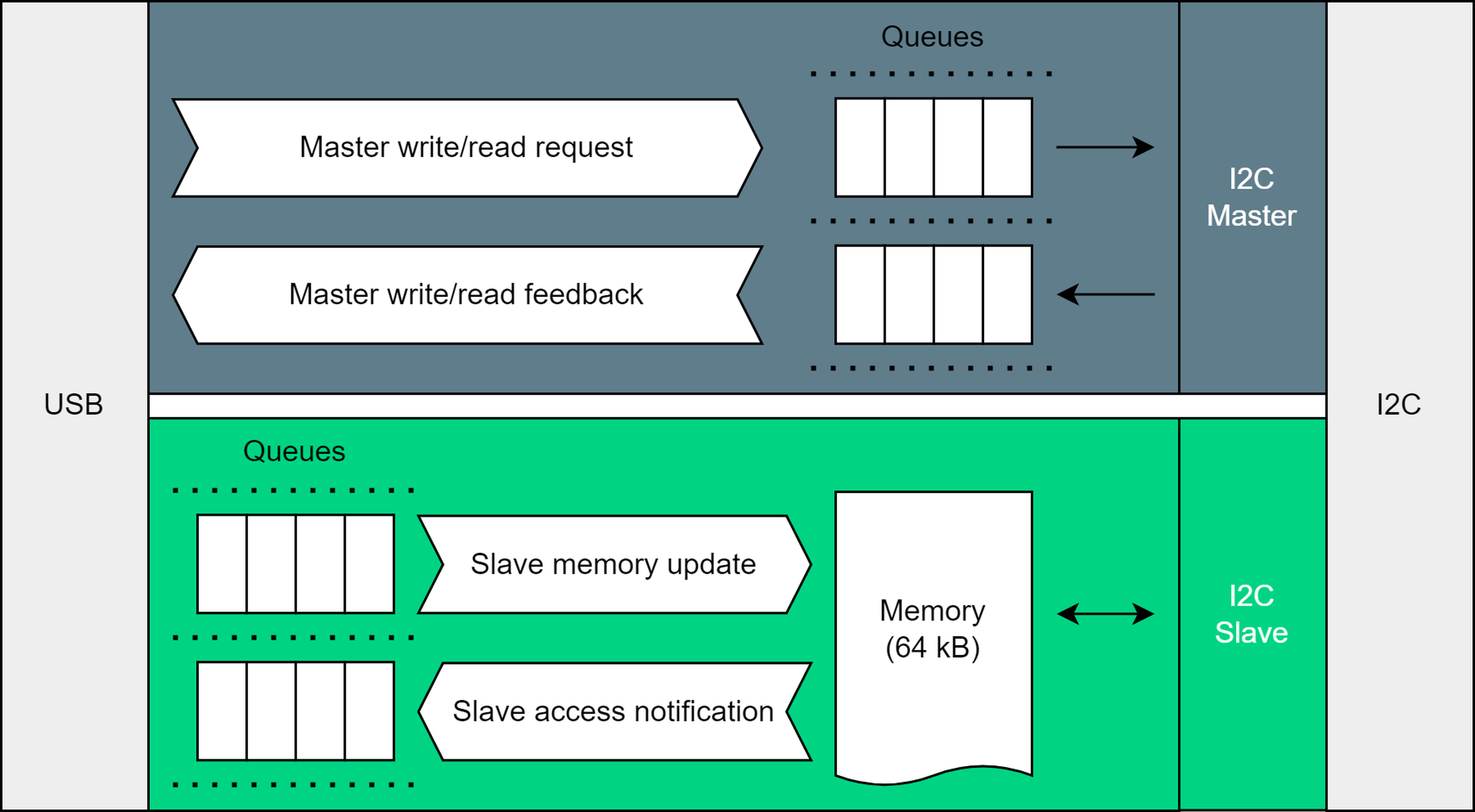

This tool is designed to simplify the development and testing of systems using custom I²C protocols. Essentially, it functions like a USB to Serial Converter, but tailored specifically for the I²C interface, providing a seamless bridge between USB and I²C devices.
It's designed to be versatile for a few common situations:

• Test I²C Slaves: Use the desktop GUI to easily send read/write requests to your slave device, helping you see how it responds.
• Test I²C Masters: Configure the converter to act as a slave device. This lets you check your master's code even if your final I²C slave isn't available yet.
• Automate with Python: If you prefer scripting, the interface-expander package lets you control the I²C bus from Python, which is handy for automated testing or working with memory chips like EEPROMs.

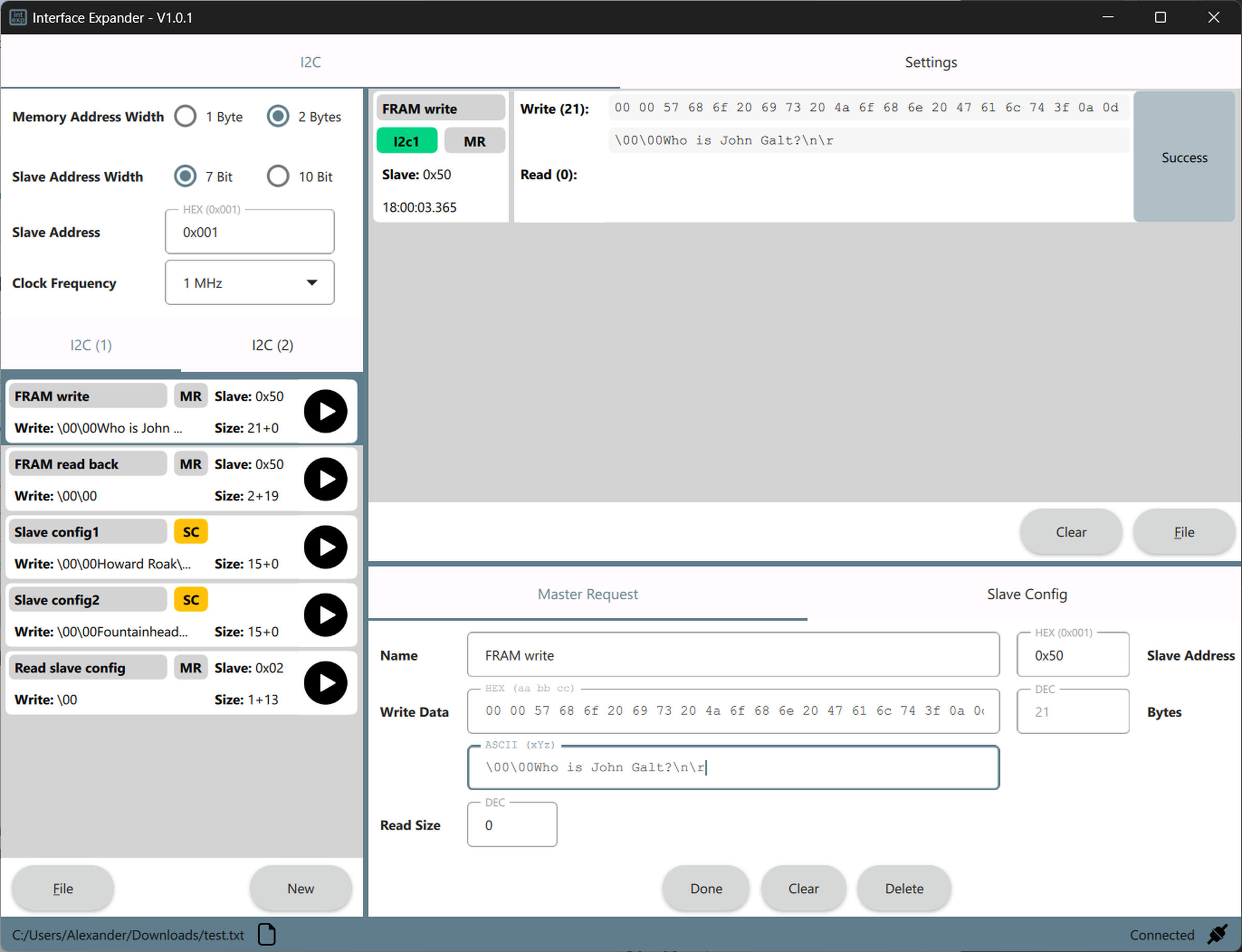

🖥️ Graphical User Interface (Windows + Linux)

The converter comes with a GUI for easy control of the two I²C interfaces. It allows to formulate master requests and slave configurations so you can test your I²C slave/master device. The results of master requests and slave access notifications are displayed in the GUI

🐍 Python Package

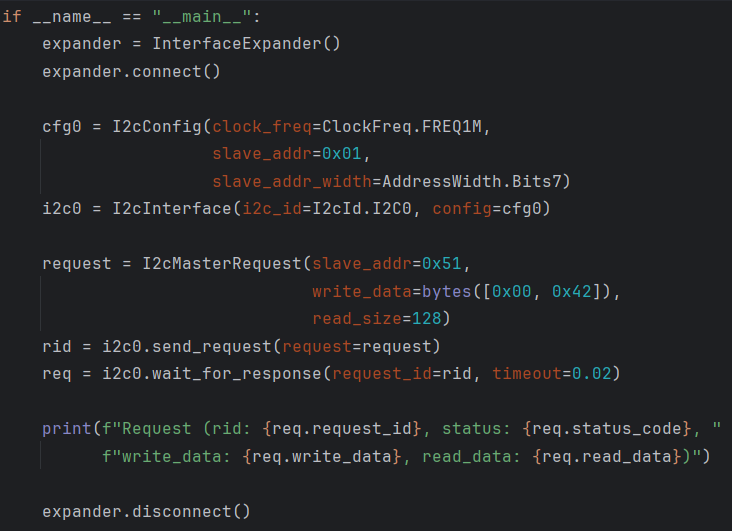

After running pip install interface-expander on your system the device can be easily controlled via python code, as shown by the examples below.

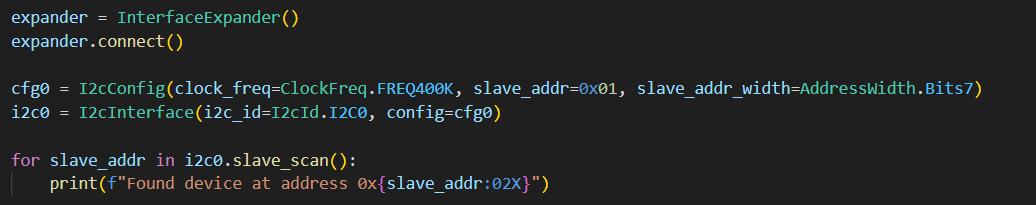

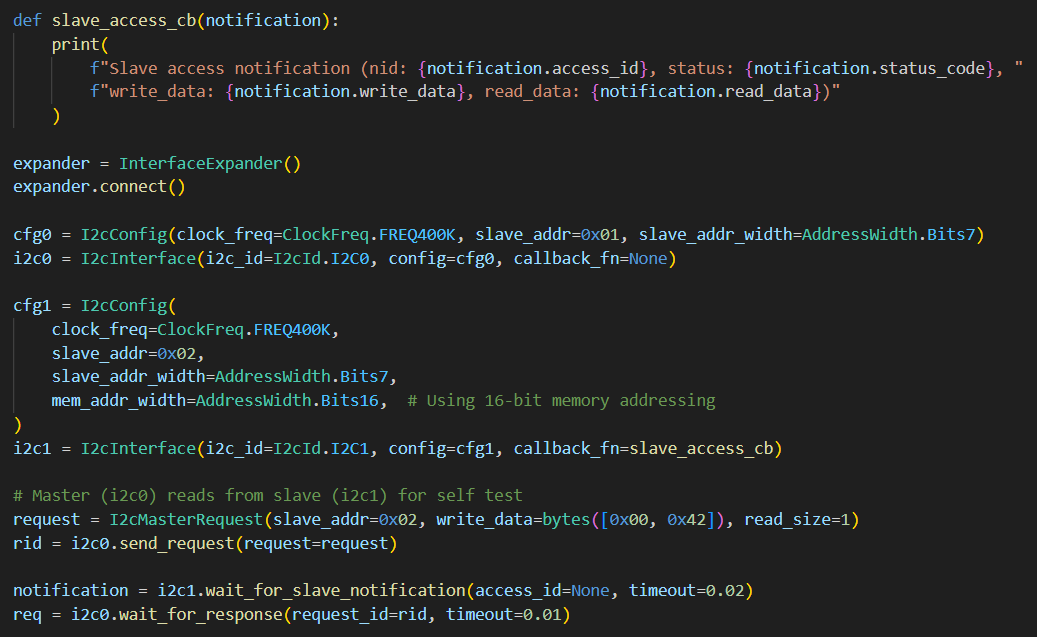

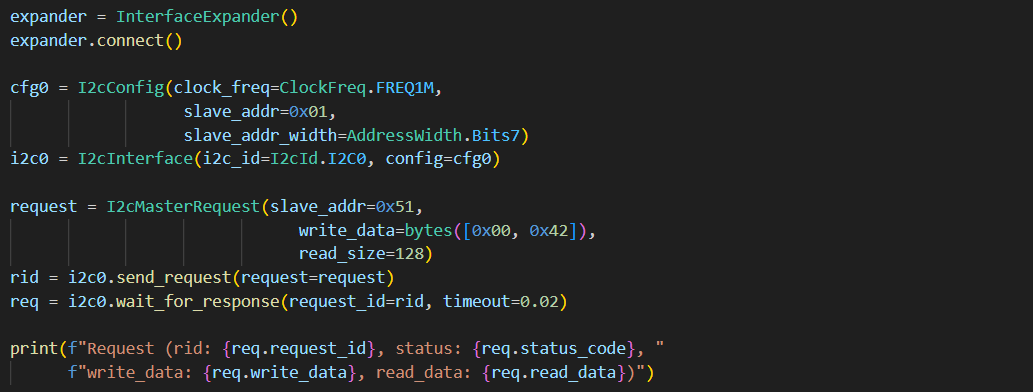

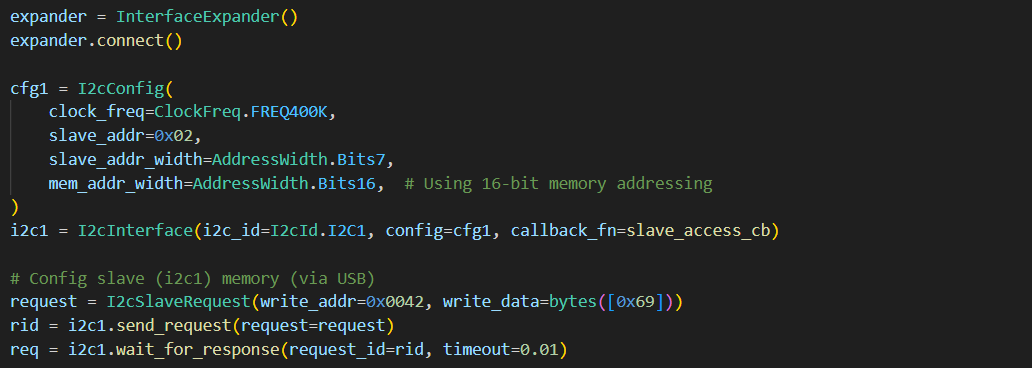

1) Slave scan example: 2) Master read example: 3) Slave config example: 4) Slave access notification example:

The python library also supports easy reading and writing EEPROMs and FRAMS. Many more examples can be found here.

🎯 Perfect For

This module is an essential tool for:

• Embedded Software Engineers debugging I²C communication.
• Hardware Engineers checking new designs.
• Students and Hobbyists who are learning about I²C.
• Anyone who needs a simple way to talk to I²C devices from a PC.

📦 Roadmap

Planned firmware and software updates include:

• USB-to-SPI mode (already supported by hardware).

📓 Notes

• The GUI software can be downloaded from GitHub
• Product includes the assembled device. USB cable not included.

Disclaimer: This product is a development and evaluation board intended only for engineers, makers, and developers. It is not a finished consumer product and is not intended for use in any critical or end-user applications. Use at your own risk.

RoHS Compliance: This product is RoHS compliant according to Directive 2011/65/EU and Amendment 2015/863/EU. All components, solder, and the printed circuit board have been sourced from reputable suppliers and do not contain restricted substances above the maximum allowed limits.
