IoT Arduino Temperature & Humidity Shield & Probe

(1 Review)

T&H Shield & IC sensor Probe - For Arduino & other DIY boards, Enables "Makers"'s Climate Control project quicker & with style

Designed by AKDRACOM in Hong Kong

IoT Arduino Temperature & Humidity Shield & Probe 1

IoT Arduino Temperature & Humidity Shield & Probe 2

IoT Arduino Temperature & Humidity Shield & Probe 3

IoT Arduino Temperature & Humidity Shield & Probe 4

IoT Arduino Temperature & Humidity Shield & Probe 5

IoT Arduino Temperature & Humidity Shield & Probe 6

IoT Arduino Temperature & Humidity Shield & Probe 7




2014-12-25T13:20:03.895Z-Penguin Board_2.jpg

2014-12-25T13:21:17.104Z-Penguin Board_3.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Specialize in sensors, displays and components for Internet of Things (IoT) and Intelligent Control

T&H Shield & IC sensor Probe - For Arduino & other DIY boards, Enables "Makers"'s Climate Control project quicker & with style

Temperature and Humidity (T&H;) remain top on the list for DIY Maker projects' sensing needs, many T&H; sensorsare constructed from thermistor / low priced capacitive humidity sensor are not accura...

Common Applications when using this product:

Mini weather station
Thermostat / Climate Control
Intelligent Humidifier / De-Humidifier Control
Storage Cupboard Temp / Humidity Control
Horticulture / Greenhouse Temp / Humidity Control

Features:

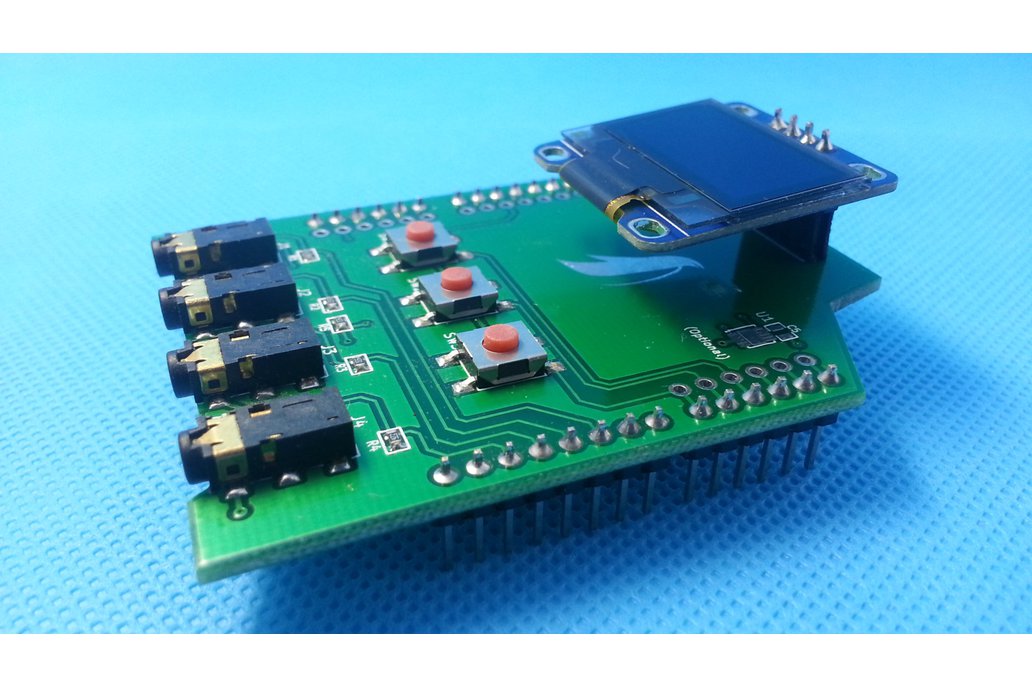

Nice design Temperature and Humidity Probes for different project needs
Arduino shield for up to maximum 4 T&H probes (Additional probes optional)
Board Dimension 54 X 70mm
0.96 inch OLED Display Module (128 X 64)
3 User defined Keys
IC form T&H sensor – with plastic probe case :

Sensor IC :

SHT30-DIS IC sensor
Temperature Range (-40 to +125 C) *
Humidity Range : 0 to 100 % RH
Temperature accuracy +/- 0.3 C typ. (@ 25 C)
Humidity accuracy +/- 3% RH typ. (@ 25 C)

Package Includes :

T&H Probe Shield for Arduino X 1
0.96 inch OLED Display module X 1
Temperature and Humidity Probe with IC sensor X 1 (2.5mm 4 pin connecting cable ~ 1m length)

(*) Temperature range of sensor IC - probe operating range differ

Change Destination Country:

Review Breakdown

Average Ratings

Product: (1.00)

Documentation: (1.00)

Shipping: (2.00)

Communication: (2.00)

Giorgio | Feb. 26, 2017

Probe of the shield bad welded

Not a good product!
After unpack probe and connected it to the related shield, upload the sample sketch (not documented where get the library)
on the display appears ony "probe not detected".
I bought 2 probe, so i connect the 2nd and surprise, doesn't work at all!
Then I open the plastic case of the probe and I have been disgusted beacuse the 4 wire are welded as:
black on pin VDD of sht30
red on SCL
greeen on SDA and yellow on GND

Compliments, startupper!

Response from AKDRACOM | Feb. 27, 2017

Dear Giorgio,

We sold many of this products since 3 years ago and have not received complaints so far.

The probe's connection wire is not standard color coded but using the probe with board don't need to care this at all.

When it is to be used with other platform and user need to do own wiring - the wiring color scheme is listed in the product's "Quick Start Guide" clearly.

Thank you for your attention.
