AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach

Name: AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach
SKU: 40952
Price: 1835.00 USD
Availability: InStock

The ultimate plug-and-play desktop SMT solution. Featuring a robust solid CNC aluminum frame, dual vision system, and native OpenPnP support

Designed by AFARCO PnP in Vietnam

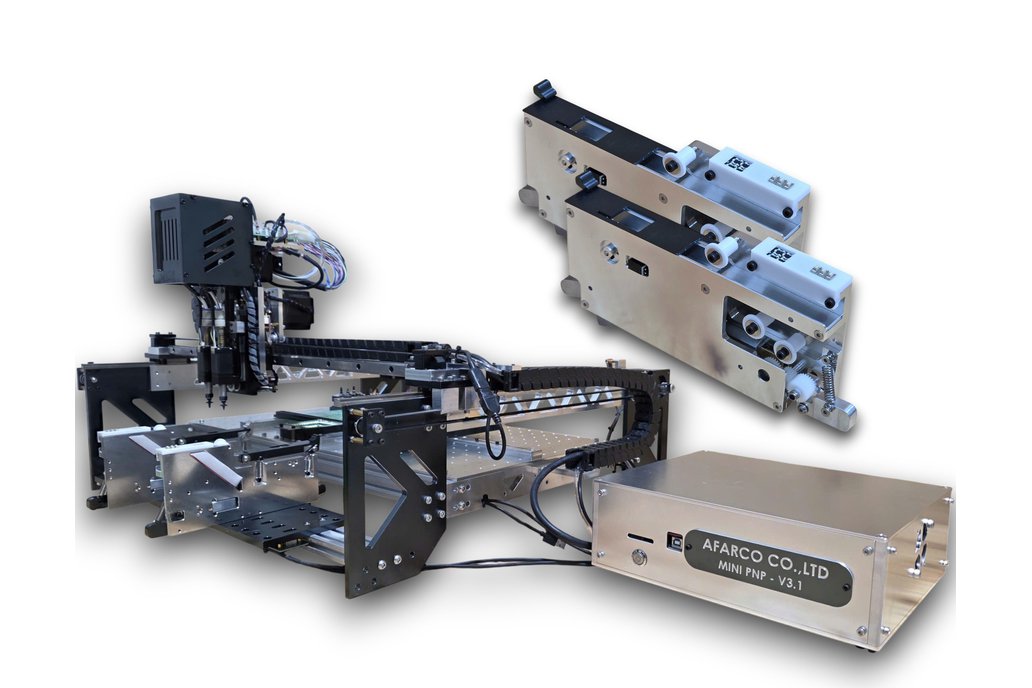

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 1

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 2

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 3

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 4

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 5

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 6

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 7

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 8

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 9

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 10

AFARCO Mini PnP V3.1 - Desktop Pick and Place Mach 11

2025-12-27T01:46:22.378Z-z7201402565123_895eb166b37e0b8daa8205b0108ac1f8 (1).jpg











Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

The ultimate plug-and-play desktop SMT solution. Featuring a robust solid CNC aluminum frame, dual vision system, and native OpenPnP support

The AFARCO Mini PnP V3.1 is a professional-grade desktop Pick and Place machine designed for hardware startups, engineers, and makers. Built on a full CNC aluminum chassis, it offers industrial-level…

Key Features:

AFARCO FEEDER system: Available in matching CNC aluminum AF Feeder V2 kits (8mm, 12mm, 16mm).
Precision: Handles 0402, QFN, and BGA 0.5mm with ease.
Vision: Dual-camera system for high-accuracy placement.
You won't spend much time adjusting, installing and calibrating.
You won't need to 3D print the parts for installation
With the AFARCO Mini PnP V3.1, everything is plug and play.
Reduce the user's low cost and stable product performance - Newly designed Feeders, support the flexible ratio of different size Feeders.
Friendly interface, simple and easy to start - Newly developed software operating system, visualization programming and mounting.
Simple maintenance - Product line design is simple and clear, one-board high integration design.
Automatic SMT suction nozzles changer, flexible switching of multiple suction nozzles.

Feature	Specification Details
Machine Style	2 Heads
Placement Rate	Vision ON: 1400CPH - Vision OFF: 2000CPH
Maximum PCB Size	340mm x 530mm
Nozzle Change Capacity	6 Nozzles (3 Left & 3 Right)
Nozzle Type	Samsung CP45
Feeder Type	20 Slots AF Feeder V2 (8mm, 12mm, 16mm), Strips Feeder, Tray Feeder
Component Compatibility	Min: 0201 / Lead pitch: 0.4mm / BGA 0.5mm pitch
Max Component Size	18mm x 18mm
Max Part Height	20mm
X/Y/Z Axle Travel	X: 550mm, Y: 480mm, Z: 38mm
Vacuum Pump	-85Kpa , 10-15L , 24W
Software	OpenPnP Original
Vision System	1 HD Camera TOP, 1 HD Camera BOT
Original Power	200W / 85VAC - 250VAC (50/60Hz)
