Product Introduction

ESP32-C5-N4 module, equipped with a 32-bit RISC-V single core microprocessor, capable of up to 240 MHz，Flash: 4 MB，ROM: 320 KB，HP SRAM: 384 KB。 LP SRAM: 16KB。 WiFi can operate in the 2.4&5 GHz dual band, 1T1R. Low power Bluetooth (Bluetooth LE): via Bluetooth 5.0.

Features

1. The USB-C connector is used for power supply, programming, and JTAG debugging. The power socket can be equipped with an optional external power supply (4.5-40) V DC and four relays: 10A/240V AC;

2. Four optoelectronic isolated inputs, capable of providing up to 30VDC DC voltage. Two UEXT connectors (0.1 inch) and an expanded GPIO connector with reset button for users;

3. Wide range power supply: 4.5-40VDC suitable for ESP-PROG programming connector with four mounting holes and four rubber pads.

4. Ultra low power MCU equipped with RISC-V 32-bit single core processor

5. 2.4&5 GHz dual band Wi Fi 6 (802.11ax), Bluetooth ® 5 (LE), Zigbee, and Thread (802.15.4)

6. Support connecting external flash and PSRAM

7. 29 GPIO, rich peripherals

IEEE 802.15.4

• Compatible with IEEE 802.15.4-2015 protocol

• Working in the 2.4 GHz frequency band, supporting OQPSK PHY

• Data rate: 250 Kbps

• Supports Thread 1.4

• Supports Zigbee 3.0

Interface diagram

Product Size

Schematic diagram

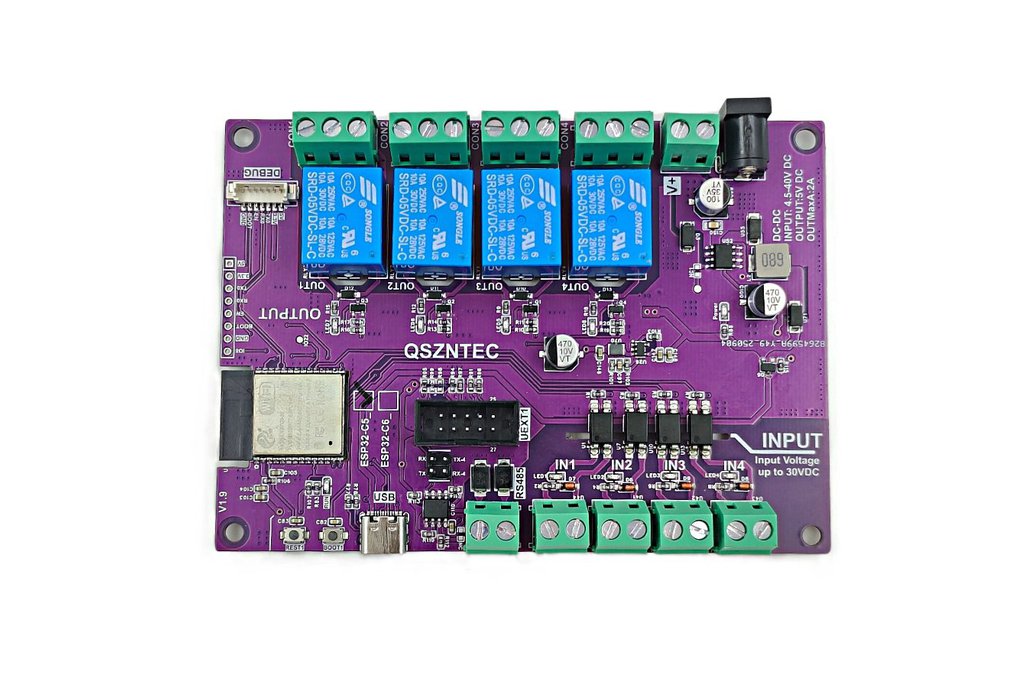

Product Display
