Azufier Rev 1.0

Arduino compatible BLE board with SDK

Designed by AzureLab, Ships from Japan






Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Update#03: Azufier is online ! First 6 of our customers will get a micro-B usb cable for free.

Arduino compatible BLE board with SDK

What is it? The Azufier Rev 1.0 is an Arduino-compatible development board with AtMega32u4, which features a built-in BLE module. On the Azufier, there is a dedicated SPI port designed for you to c...

What is it?

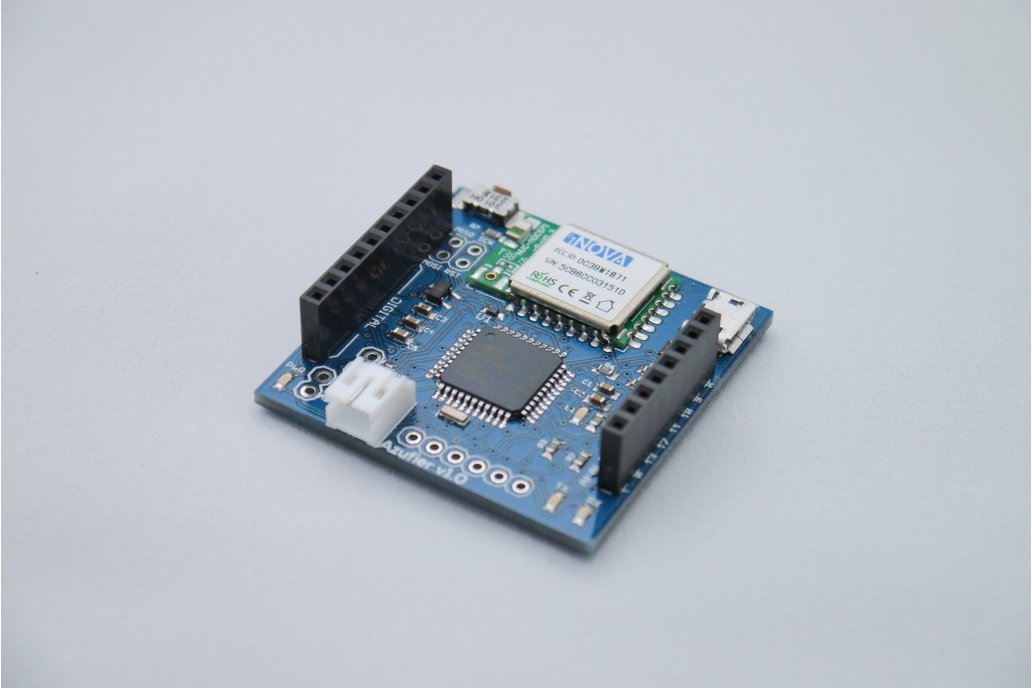

The Azufier Rev 1.0 is an Arduino-compatible development board with AtMega32u4, which features a built-in BLE module. On the Azufier, there is a dedicated SPI port designed for you to connect an LCD or E-ink display and turn your Azufier into a perfectly standalone IoT device.

Visit our website to find more about Azufier!

Features

BLE module onboard
BLE mode/ iBeacon Mode
On-Board microB-USB
4 x 10-bit ADC pins
12 x Digital I/Os (5 are PWM capable)
Rx and Tx Hardware Serial Connections
Li-Po Battery Support
Support AT commands
Support Arduino IDE
iOS SDK provided
MacOSX SDK provided

Why did you make it?

There are already plenty of development boards with built-in BLE module available in the market. However, most of their price tags may be a little too high for most of us. Also, setting up the BLE module between smart phone or PC could take quite some effort. At least for me :)

What makes it special?

Azufier comes with a default program preloaded in it. All you have to do is power it up, connect it to your smartphone or tablet using our APP, and you are ready to go. You may try to control some of its output pins to get familiar with the APP. For more details, visit our website.

Another awesome capability of Azufier is the connectivity with PC.(Windows are not supporting BLE now)You can connect Azufier to your Mac withouth buying any external hardware!
