MAX31855 K/T/R/J Type Thermocouple Module

Name: MAX31855 K/T/R/J Type Thermocouple Module
SKU: 1407
Price: 17.80 USD
Availability: Discontinued
Rating: 3.88 (4 reviews)

(4 Reviews) Designed by BBTech in Taiwan

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

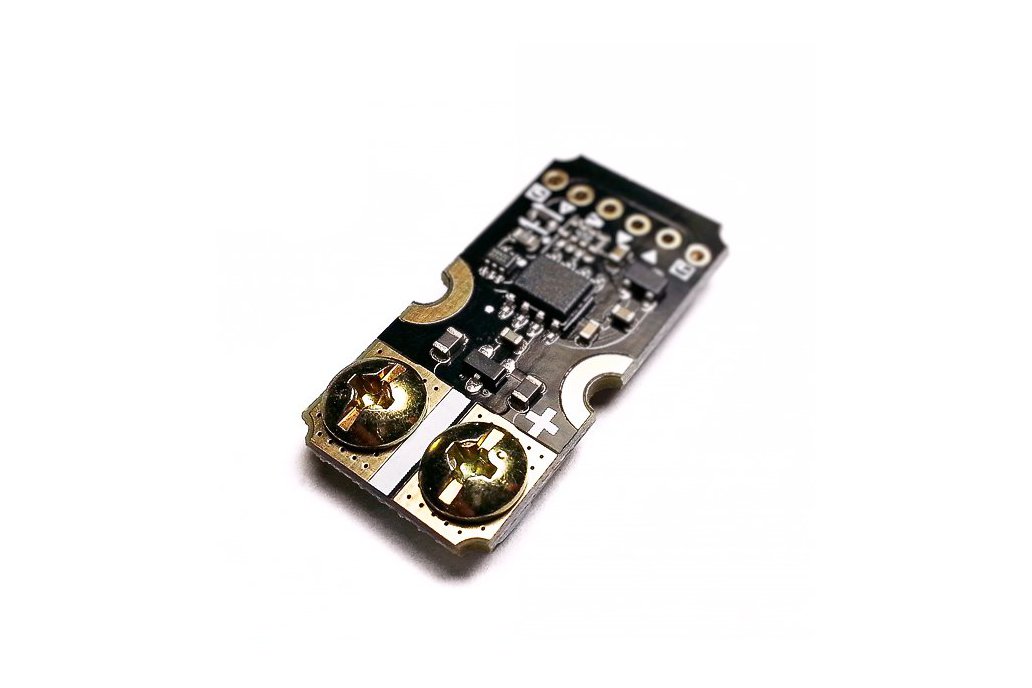

MAX31855 K/T/R/J Type Thermocouple Module 1

MAX31855 K/T/R/J Type Thermocouple Module 2

Thank you for visiting our tindie store! we introduced a variety of unique electronic parts, hope you like it.

Details Recommended Supply and I/O Voltage: 3.3 ~ 5.5 VDC. SPI Digital Interface (Max. 5MHz). Temperature Data Resolution: 0.25 °C. More Information, Please Refer MAX31855 Datasheet. Compact Module …

Details

Recommended Supply and I/O Voltage: 3.3 ~ 5.5 VDC.
SPI Digital Interface (Max. 5MHz).
Temperature Data Resolution: 0.25 °C.
More Information, Please Refer MAX31855 Datasheet.
Compact Module Size: 31 x 15.7 mm / 1.22 x 0.62 in.
Built-in Anti-jamming circuits, using 5VDC will effectively improve noise immunity.
Device PIN Description: (All Pins have Level Shifter)
- PIN1: GND
- PIN2: CS, Active-Low Chip Select
- PIN3: VDD
- PIN4: SCK, Serial-Clock Input
- PIN5: SO, Serial-Data Output
- PIN6: GND
