BMX055 9-Axis Module

What is it? The BMX055 is an integrated 9-axis sensor for the detection of movements and rotations and magnetic heading. It comprises the full functionality of a triaxial, low-g acceleration sensor, …

What is it?

The BMX055 is an integrated 9-axis sensor for the detection of movements and rotations and magnetic heading. It comprises the full functionality of a triaxial, low-g acceleration sensor, a triaxial angular rate sensor and triaxial geomagnetic sensor. This module approach allows only I2C communication, can not change its slave address.

Details

Recommended supply voltage (VDD): 3.3 ~ 5.5 VDC.
I2C digital interface, support I2C fast mode (Max. 400KHz).
I2C bus built-in level conversion function, you can be used with other I2C devices.
On chip temperature sensor.

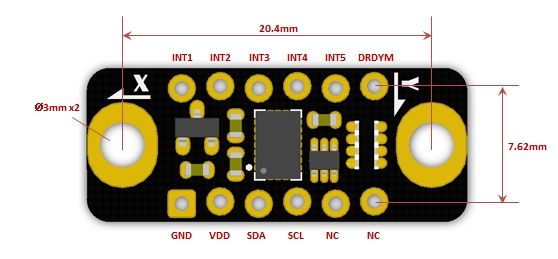

Device PIN description:
- PIN1: GND.
- PIN2: VDD.
- PIN3: SDA (built-in pull-up resistor, to cancel via jumper).
- PIN4: SCL (built-in pull-up resistor, to cancel via jumper).
- PIN5: NC (Reserved for altimeter module).
- PIN6: NC (Reserved for altimeter module).
- PIN7: DRDYM (magnet data ready).
- PIN8: INT5 (magnet int).
- PIN9: INT4 (gyro int#2).
- PIN10: INT3 (gyro int#1).
- PIN11: INT2 (accel int#2).
- PIN12: INT1 (accel int#1).
- Pin to pin pitch: 2.54 mm / 0.1 in.
