ASCII Keyboard Tester Tiny

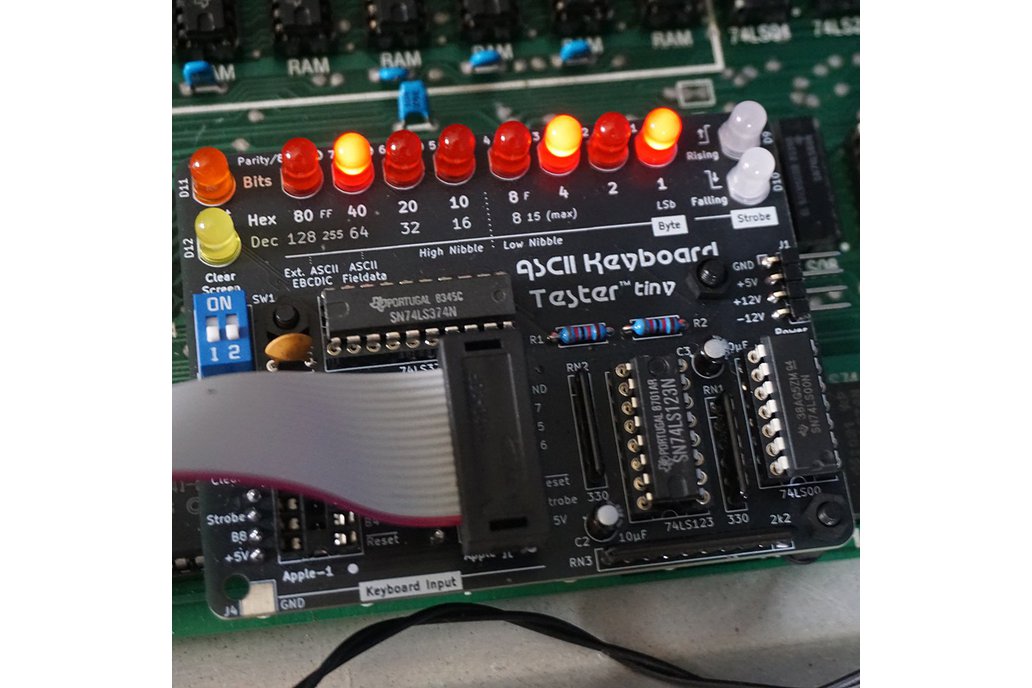

A compact board to test vintage parallel ASCII Keyboards. Use it on top of an Apple-1 or Apple ][ and connect their keyboards.

Designed by 8BitFlux in Netherlands

ASCII Keyboard Tester Tiny 1

ASCII Keyboard Tester Tiny 2

ASCII Keyboard Tester Tiny 3

ASCII Keyboard Tester Tiny 4

ASCII Keyboard Tester Tiny 5

ASCII Keyboard Tester Tiny 6

ASCII Keyboard Tester Tiny 7

ASCII Keyboard Tester Tiny 8

ASCII Keyboard Tester Tiny 9










Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A compact board to test vintage parallel ASCII Keyboards. Use it on top of an Apple-1 or Apple ][ and connect their keyboards.

Evolutionary design of the legendary ASCII Keyboard Tester. It can now eavesdrop on the signals generated by a keyboard and transmitted to the vintage computer, without interfering its normal operati…

Read More…

Evolutionary design of the legendary ASCII Keyboard Tester. It can now eavesdrop on the signals generated by a keyboard and transmitted to the vintage computer, without interfering its normal operation. Of course it still supports familiar standalone usage, so a (self-made) keyboard can be tested in isolation. All bits are annotated to ease conversion and understanding of hexadecimal and decimal number systems.

Use the DIP-swich to turn off the 8th bit or activate adapter mode. The latter is to use an Apple ][ keyboard with an Apple-1 computer. All keyboard connector pins are labeled to make it easy to connect ASCII keyboards that go with other computers, like the Sol-20 of Processor Technology.

See the Documentation for details.

Change Destination Country:

8BitFlux Shipping Policy:

Shipping is tracked (but not insured), when available for your country.

IMPORTANT: unfortunately, the Dutch postal service has (temporarily) suspended all shipping to the USA.
