PCB set to build a Saw core VCO for Eurorack Modular synthesizers
Designed by PMFoundations in United States of America
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Jacks available from Tayda Electronics at 16c each!
https://www.taydaelectronics.com/pj-323m-3-5-mm-mono-phone-jack.html
Summary This is a full featured SAW Core VCO. Sine, Pulse, Saw waveforms available with multiple modulation inputs and oscillator sync. All waveforms are derived from a simple saw wave core using ...
Read More…This is a full featured SAW Core VCO. Sine, Pulse, Saw waveforms available with multiple modulation inputs and oscillator sync.
All waveforms are derived from a simple saw wave core using a JFET.
This VCO is compact, filling an 8HP space, but has comfortably spaced front panel controls for ease of operation.
It can be customized to provide triangle instead of sine if needed with one simple resistor change.

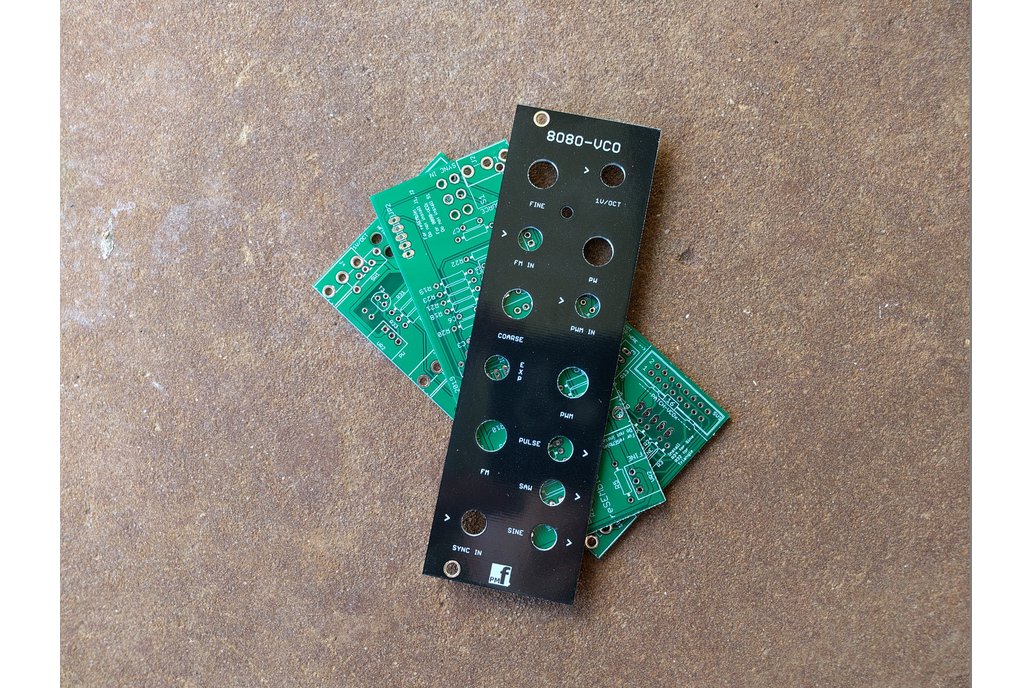

This is a PCB and Panel set only. A set of 2 high quality PCBs and 1 front panel ONLY are included. You will need to purchase your own components and build your own module. Comprehensive build instructions and BOMs are provided to help you source the components needed and we even provide links to shopping carts to simplify sourcing those components. Some product photos above show COMPLETED build.
8080-VCO used in patch with SEM
Comprehensive documentation, parts lists are provided in the documentation link for building, testing and calibrating the module.
If you want a highly accurate tracking VCO, please ensure you use very well matched transistors and also glue the thermistor and the two transistors together. The slight differences in temperature coefficients of the transistors can make the oscillator difficult to tune. If you don't need a highly accurate oscillator, you can use any transistors and even use a resistor instead of the thermistor. Here's a comment from one of our builders of a similar VCO:
"I ended up swapping the transistors from some I got in a Mouser order vs the ones I matched from a Chinese retailer. Found some that matched less then 1mv difference and Low and behold, I can tune it now!" From Dayne, Grand Forks, BC.
So: you choose.
