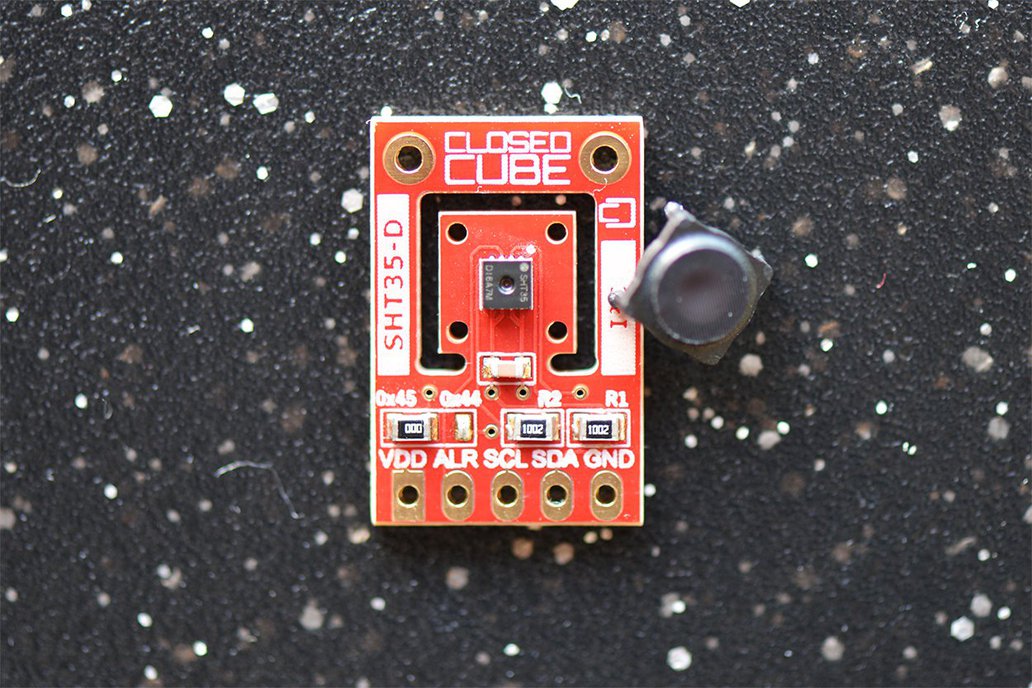

ClosedCube SHT35-D [Digital I2C] Humidity and Temperature Sensor Breakout with typical accuracy of +/- 1.5%RH and +/- 0.1°CDesigned by ClosedCube in United Kingdom
Features: Fully calibrated, linearized, and temperature compensated analog output Wide supply voltage range, from 2.4 to 5.5 V I2C Interface with communication speeds up to 1MHz and two user selec...Read More…
SHT35-DIS features an Alert Mode, when operated in the periodic data acquisition mode. The Alert Mode allows to monitor the environmental condition (humidity and temperature) relative to programmable limits. When limits are reached the value of a dedicated ALERT pin will change. Additionally, a status register bit indicates the cause of the alert.
Alternatively, the ALERT pin may be connected to the interrupt pin of a microcontroller. After an alert from SHT35 the microcontroller can wake-up from sleep mode and then perform certain actions.
The new board layout provides the (optional) sensor protection from liquids, dust, soot, particles and other contaminants with Sensirion IP67 FS2 filter cap (not fitted on the board, please see recommended adhesives)
