OK-004 Heart Flasher

Name: OK-004 Heart Flasher
SKU: 32652
Price: 9.24 USD
Availability: InStock

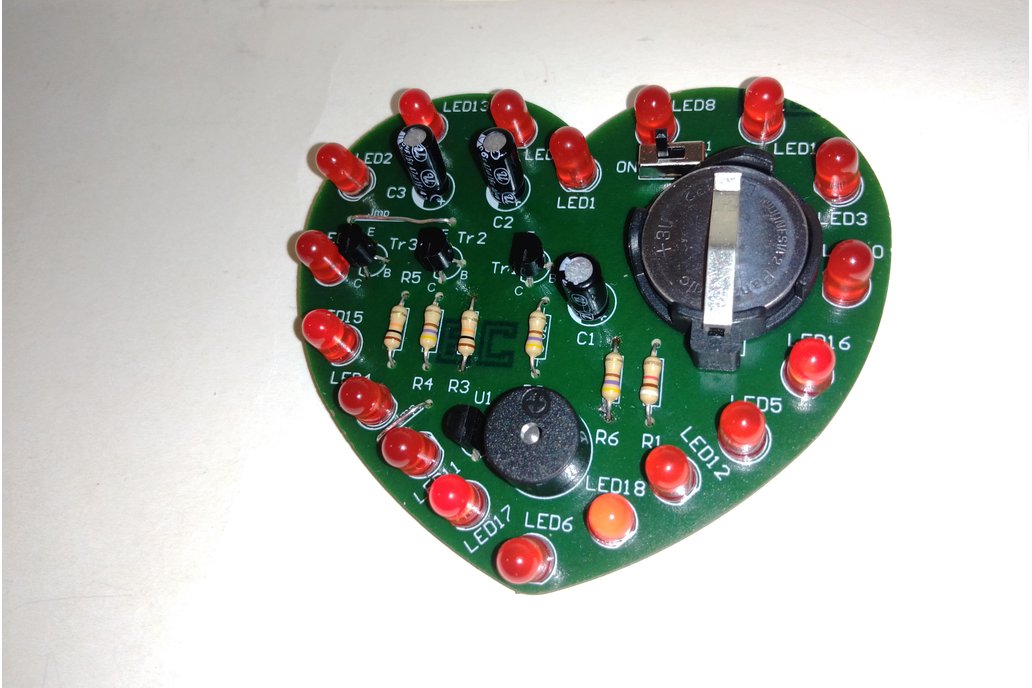

This is a LED flasher and music player PCB that plays a song

Sold By h4ctronics









Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This is a LED flasher and music player PCB that plays a song

What is it? This is a PCB that flash LEDs and flashes LEDs in a descending pattern and plays a recording music Why did you make it? This pcb was fabricated by taiwanese company in taiwan. Their sour…

What is it?

This is a PCB that flash LEDs and flashes LEDs in a descending pattern and plays a recording music

Why did you make it?

This pcb was fabricated by taiwanese company in taiwan. Their source is www.ltc.com.tw

What makes it special?

This PCB uses transistor to transistor logic (TTL) in a very clever manner to produce a very elegant LEDs flashing display for arraignment lights, This PCB is very interesting if you want to know more in depth knowledge about transistor to transistor logic (TTL) and how to design your own DIY PCB.

(please note this is not DIY PCB for you to solder. This PCB is already put together.)
