5MM through hold terminal block for 14 to 26 AWG wire, stainless and zinc-plated steel in thermoplastic housingSold By Visgence, Inc., Ships from United States of America
Sets of 10 of 5MM Terminal Block Vertical 2-POS PCB manufactured by On-Shore Technology, Inc. These are salvage pieces from prototypes that we have built. They may have some solder residue on the p...Read More…

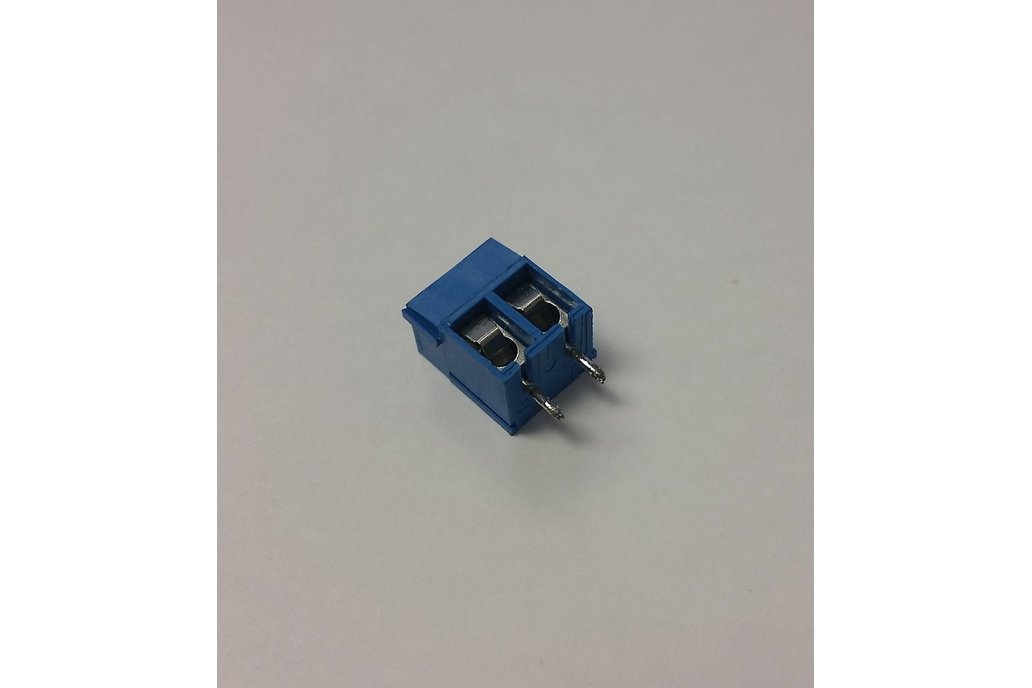

Sets of 10 of 5MM Terminal Block Vertical 2-POS PCB manufactured by On-Shore Technology, Inc. These are salvage pieces from prototypes that we have built. They may have some solder residue on the pins, but are otherwise in excellent condition. We would prefer them to get a new life than to be thrown away!
Number of Levels: 1
Positions Per Level: 2
Pitch: 0.197" (5.00mm)
Mating Orientation: Horizontal with Board
Wire Gauge: 14-26 AWG
Mounting Type: Through Hole
Wire Termination: Screw - Leaf Spring, Wire Guard
Features: Interlocking (Side)
Operating Temperature: -30°C ~ 105°C
Housing Material: Thermoplastic
Clamp Material Plating: Stainless Steel
Screw Material Plating: Zinc-Plated Steel
Torque - Screw: 0.3 Nm (2.6 Lb-In)
Screw Thread: M3
