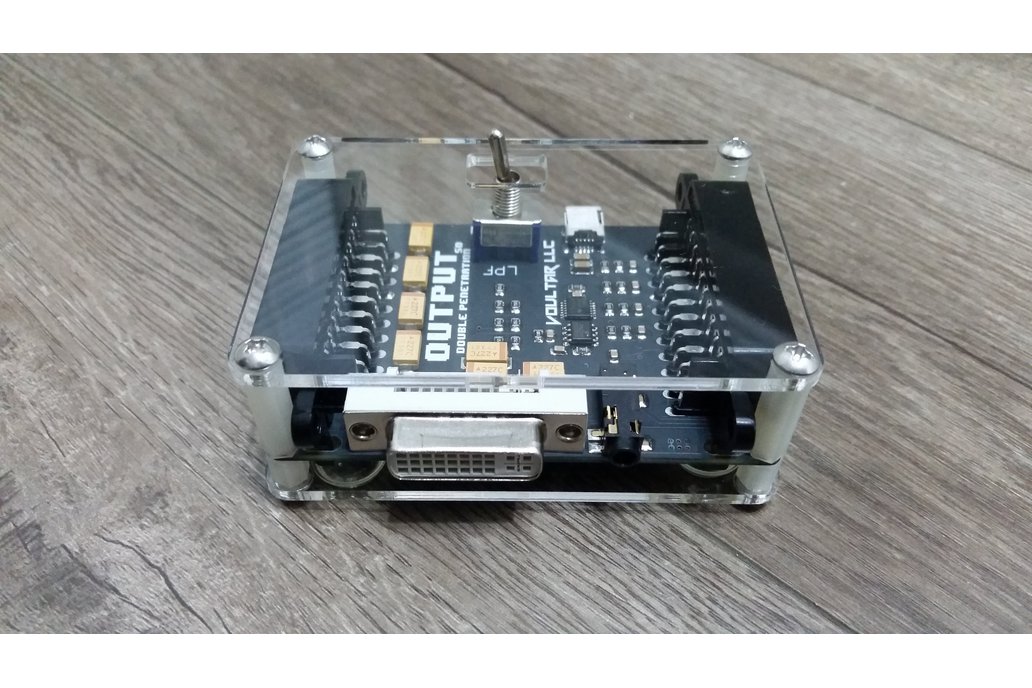

Voultar Double Penetration SD Datapath E1/E1S

A device used for capturing 240p/480i 15 Khz signals from retro consoles. Catered primarily for Datapath E1/E1S capture cards

Sold By unmaker64

Voultar Double Penetration SD Datapath E1/E1S 1

Voultar Double Penetration SD Datapath E1/E1S 2

Voultar Double Penetration SD Datapath E1/E1S 3

Voultar Double Penetration SD Datapath E1/E1S 4

Voultar Double Penetration SD Datapath E1/E1S 5

Voultar Double Penetration SD Datapath E1/E1S 6

Voultar Double Penetration SD Datapath E1/E1S 7

Voultar Double Penetration SD Datapath E1/E1S 8

Voultar Double Penetration SD Datapath E1/E1S 9

Voultar Double Penetration SD Datapath E1/E1S 10

Voultar Double Penetration SD Datapath E1/E1S 11

Voultar Double Penetration SD Datapath E1/E1S 12













A device used for capturing 240p/480i 15 Khz signals from retro consoles. Catered primarily for Datapath E1/E1S capture cards

What is it?

Voultar's Double Penetration SD is essentially a splitter designed to be paired with Datapath E1/E1S capture cards and handles 240p/480i 15 Khz signals. This device will split a signal into two outputs which is a very convenient way of dealing with the input only on Datapath E1/E1S capture cards. One output goes to the Datapath card and the other goes to your display. You are able to game on your monitor while capturing your gameplay! In order to get a "pixel-perfect" capture there is a process involved. RetroRGB has a great tutorial on how to capture footage with this device connected to a Datapath E1/E1S which I've linked at the bottom of the page.

Features:

this device is FULLY assembled with clear acrylic enclosure and rubber feet
female SCART input (accepts RGB via sync-on-composite, sync-on-luma, 75 ohm csync, TTL csync, and YPbPr via a RCA to SCART adapter)
female SCART output (outputs a buffered sync signal that is termination friendly for consumer grade devices such as the OSSC)
female DVI-I output (outputs a logic level sync signal to Datapath card)
supports analog 240p/480i 15 kHz signals (anything higher is not supported)
audio passed through both 3.5mm jack and female SCART output
low-pass filter ON/OFF switch
powered with a USB mini B cable (CABLE NOT INCLUDED). Your typical "USB Cable Type A to Mini B Male to Male" will work just fine

This is for the device ONLY. No other accessories are included. You will need your own cables and adapters. To connect to your Datapath card you will need a DVI-I cable or adapter which MUST have the analog pins. This will not work with digital DVI-D cables. I personally use a "DVI-I (24+5) to DVI-I (24+5) Male to Male cable". A "DVI-I Male to Male Gender Changer" will work as well.

If you would like to build your own Double Penetration SD, PCB gerber files and more information can be found on Voultar's OSHpark page
