New Macintosh SE/30 & SE DIY Power Supply Board (PSU) Universal Design for Apple, Sony, ASTEC for 68k Vintage Classic Macs
Designed by TT Design in United States of AmericaNo shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up to get notified when this product is back in stock!
What is it? This custom-designed PCB lets you build your very own Apple Macintosh SE/30 or SE AC-DC power supply using all-new, modern components. Key Features: Compatible with Apple, Sony, and ASTE…
Read More…This custom-designed PCB lets you build your very own Apple Macintosh SE/30 or SE AC-DC power supply using all-new, modern components.
Key Features:
The design has been bench tested using an SE/30 outfitted with a PDS 68040 accelerator and Ethernet board and SCSI emulator board. During A/B testing this design has been observed to have less CRT image ripple over a Flex ATX PSU commonly used for PSU modernizations.
Specifications :
Input: 110 - 240 VAC
Output (Configuration Matrix):
Voltage Rail | Original Spec | IRM-10 | IRM-15 | IRM-45 | IRM-60 |
---|---|---|---|---|---|
+5 V | 6 A | - | - | 8 A | 10 A |
+12 V (combined) | 3.35 A | - | - | 3.8 A | 5 A |
-12 V | 0.5 A | 0.850 A | 1.25 A | - | - |
What You're Getting:

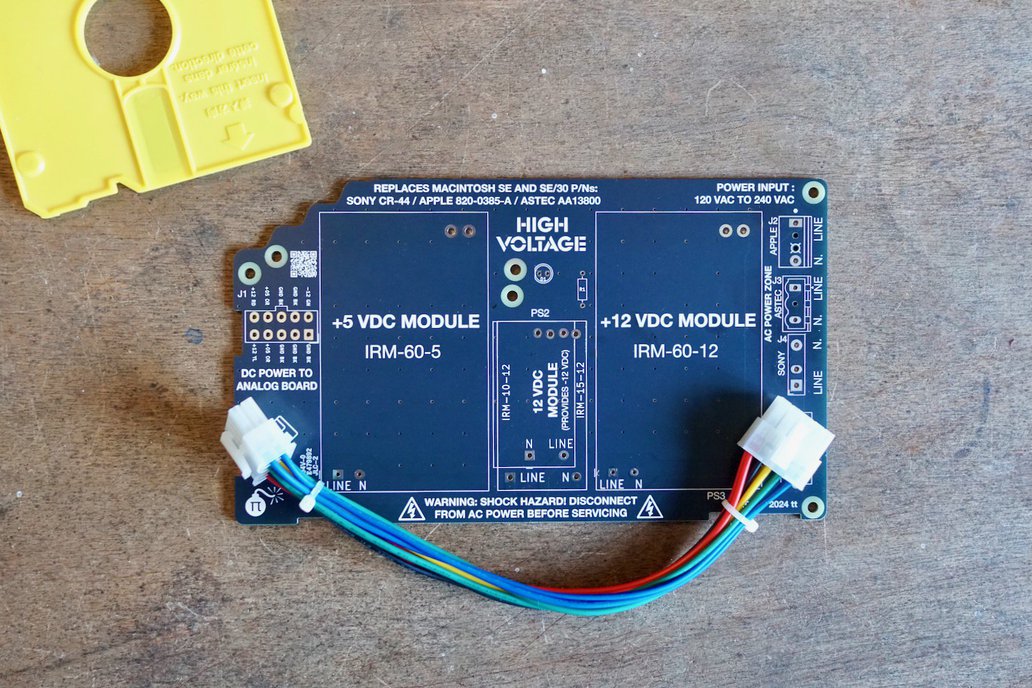

This listing is for the bare PCB and cable assembly as pictured. You can also purchase a completed cable assembly in the add-on options list or buy the components to build one yourself. The board components and PSU enclosure are not included, but the board comes with the info you need to start your build via the GitHub project page.
Q: I want to replace my Mac SE/30's PSU. What should I buy?
A: There's a bunch of options, from repairing the original, or building this board, to dropping in a fully assembled modern PSU. It depends on your comfort level and budget. This DIY board is intended to give hobbyists and collectors the option to build their own high quality power supply.
A preassembled board of this design may be available in another listing. There is also a Pico ATX SE PSU model "T.N.T." as a lower cost option. If there is a particular need for the 5 V rail to run higher than 4.8 V, the Pico ATX 5 V rail runs slightly higher than 5.0 V at its output to compensate for the voltage drops that typically occur when the power is distributed through the system.
