Glitch Works XT-IDE Rev 4 ISA IDE 8-Bit Board for IBM PC XT 286 386 486
Sold By TrilobytES Retro Store
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More

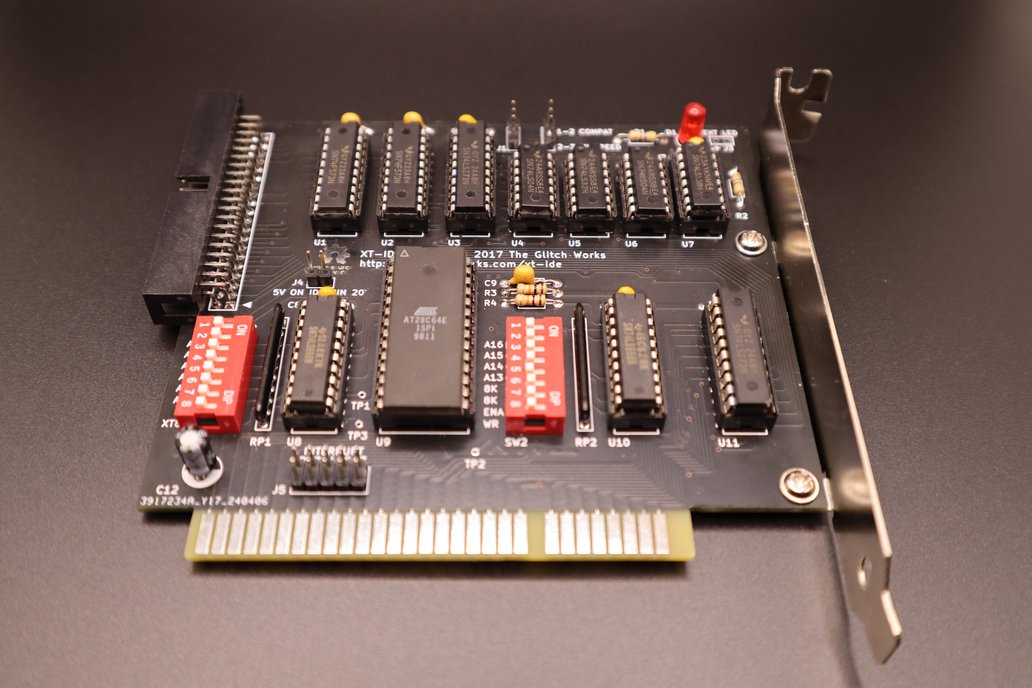

Glitch Works XT-IDE Rev 4 ISA IDE 8-Bit Board, with 28C64 EEPROM and XT-IDE ROM for PC XT machines (also compatible with newer machines like 286, 386 or 486) and metal Rear Bracket. The XT-IDE is an …
Read More…Glitch Works XT-IDE Rev 4 ISA IDE 8-Bit Board, with 28C64 EEPROM and XT-IDE ROM for PC XT machines (also compatible with newer machines like 286, 386 or 486) and metal Rear Bracket.
The XT-IDE is an 8 bit ISA adapter for attaching modern(ish) hard drives, DOMs, and CompactFlash to the ISA bus. When paired with the XT-IDE Universal BIOS, it allows IBM PC compatibles to boot from IDE drives otherwise not supported.
Compatible with real Hard Drives or CF and SD cards using the correct adapter. Ships with XT-IDE r629 ROM in Compatibility Mode, if needed it can be flashed afterwards with the High Speed ROM by moving the Write Enable jumper and using a flashing software like XTIDECFG.COM. The EEPROM can also be swapped with a 28C256 for more ROM space.
You can select the base memory address but this board ships with a memory address selection that doesn't conflict with other ROMs, only move the switches if you have problems loading the ROM.
Comes FULLY SOCKETED!!!
