Breadboard adapter for Microchip BM83 bluetooth moduleDesigned by Tomas Kovacik in Slovakia
As of 05.2022 no more untracked packages outside of the EU because of price: 6€ untracked vrs tracked 5.3€ (https://cennik.posta.sk/en). No responsibility for the loss of untracked packages.
What is it? Breadboard adapter for BT audio modules BM83 Why did you make it? I'm working on a project that includes bluetooth audio and I want to try various bluetooth audio modules. Bluetooth modu…Read More…

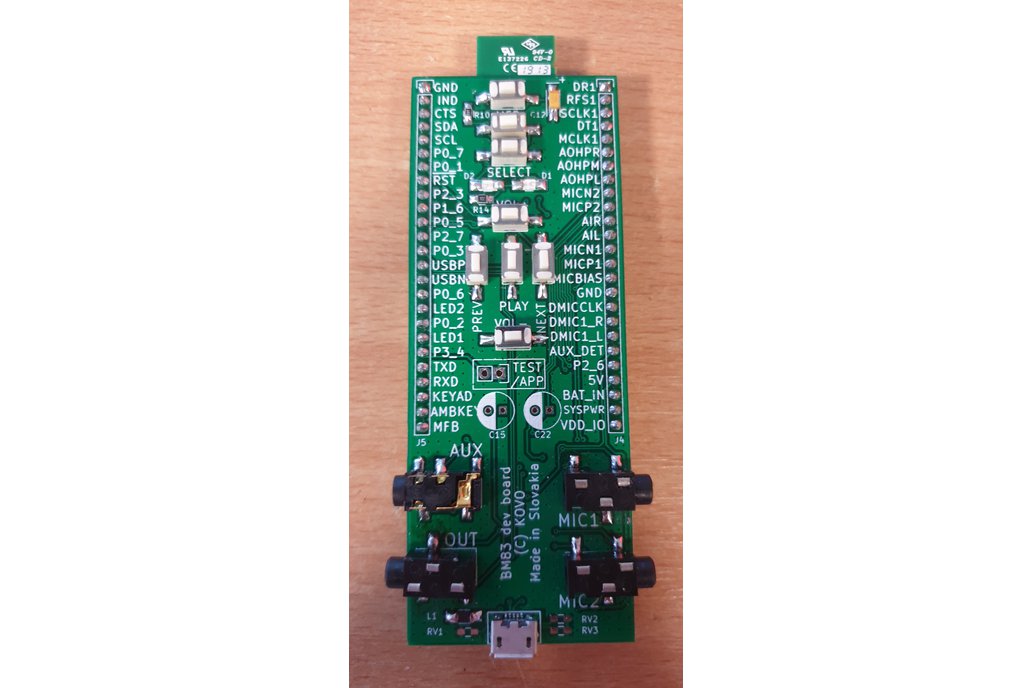

Breadboard adapter for BT audio modules BM83
I'm working on a project that includes bluetooth audio and I want to try various bluetooth audio modules. Bluetooth modules are always in the form of a board designed to be soldered on the main PCB so they are not compatible with a breadboard. This makes prototyping with them really difficult.
It's open source, and same as all of my creations, source files are on my GitHub page. The link can be found below in the documentation section. Board schematics are made in KiCad OSS SW. The board design is tested by me. If any bugs show up, I will ship it fixed or the fix will be documented here (in case it cannot be fixed in advance).
8 buttons (reset,MFB, select, VOL-/+ next/prev son, play/pause)
2x Mic input (3.5mm jack) with support circuits
AUX input (3.5mm jack) with support circuits
micro USB port for power and DFU upload of firmware
all pins of module are routed to 2.54mm(0.1") headers
solder jumpers for using single-ended microphones
option for ele. capacitors to be used on output line(not required if headphones are used)
optional smd components include(+3$):
4x 3.5mm stereo jack for outputs, aux and mics
passives (caps, resistors, 2xLED)
option for soldered components (not BM20) is + 5$
spin-off as part of the project:
None of the option includes the actual bluetooth module.
BM83 module overview on Microchip site
Arduino ibrary for this module
KiCad project of this board(schematics,PCB design etc)
footprint KiCad library including BM2x,BM6x,BM8x modules
[BM2x,BM6x,BM83 schematics symbol for KiCad)(https://github.com/tomaskovacik/kicad-library/tree/master/library)
(you need files from the last 2 links for opening Kicad Project)
