A convenient and inexpensive USB JTAG programmer for TinyFPGA A1 and A2 boards.
One of the goals of the TinyFPGA boards is to make FPGAs cheaper to use. The TinyFPGA A1 and TinyFPGA A2 boards are the first TinyFPGA boards and are designed to be the least expensive. As such, they…
One of the goals of the TinyFPGA boards is to make FPGAs cheaper to use. The TinyFPGA A1 and TinyFPGA A2 boards are the first TinyFPGA boards and are designed to be the least expensive. As such, they do not include a built-in USB interface as that would increase the cost and complexity too much. Instead they rely on JTAG programmers.

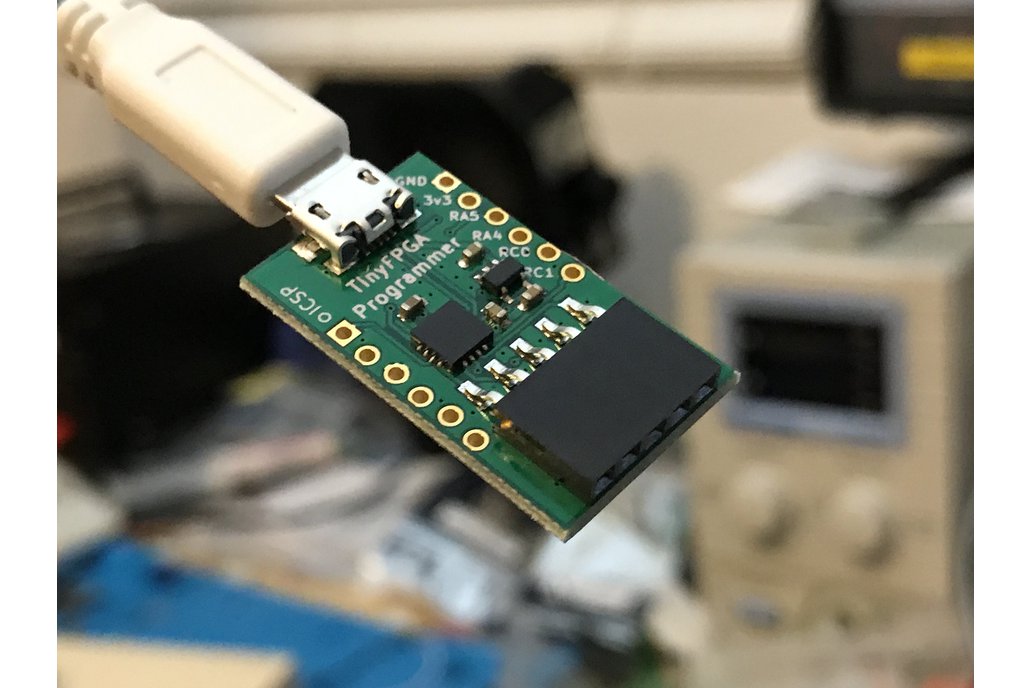

Here comes the TinyFPGA Programmer. Rather than an FTDI2232 USB interface chip it uses a PIC16F1455 USB microcontroller. While not compatible with the FTDI2232 chip, the PIC micro has a much lower BOM cost allowing the programmer hardware to be cheaper.
The TinyFPGA Programmer slots onto the JTAG pins of the A-series FPGA boards. Using the TinyFPGA Programmer Application you can program .jed files generated by Lattice Diamond.
No country selected, please select your country to see shipping options.
No rates are available for shipping to .
Enter your email address if you'd like to be notified when TinyFPGA Programmer can be shipped to you:
Thanks! We'll let you know when the seller adds shipping rates for your country.
Rates to
Shipping Rate
Tracked
Ships From
First Item
Additional Items
:
Review Breakdown
5
1
4
0
3
0
2
0
1
0
Average Ratings
Product:
(5.00)
Documentation:
(5.00)
Shipping:
(5.00)
Communication:
(5.00)
Jeff |
Dec. 7, 2018
Amazingly Simple to use.
Never before had FPGA's been so cheap and easily used. The longest part of the whole setup was installing software for the FPGA, everything else was very fast and easy.
