Plugcat QSFP-HDMI-OUT-NB7NQ621M v1.1

Name: Plugcat QSFP-HDMI-OUT-NB7NQ621M v1.1
SKU: 40559
Price: 16.90 USD
Availability: InStock

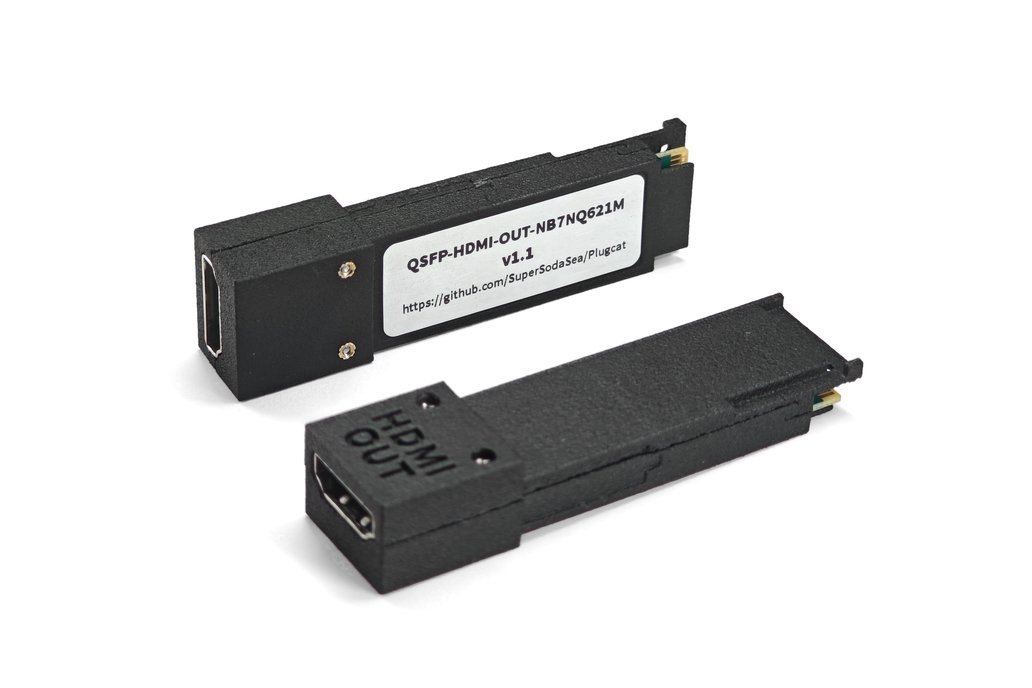

A QSFP module that provides an HDMI output port.

Designed by SuperSodaSea in China

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Features

Uses NB7NQ621M redriver chip, supports HDMI 2.1 video signal output, bandwidth up to 48Gbps
HDMI 2.0 TMDS example code provided, supports display modes such as 1920x1080@240Hz, 2560x1440@144Hz, 3840x2160@60Hz, etc.
HDMI 2.1 FRL example code TBA, you can use arbitrary HDMI 2.1 IP core

Name	Description
TX1p	HDMI CK+
TX1n	HDMI CK-
TX2p	HDMI D0+
TX2n	HDMI D0-
TX3p	HDMI D1+
TX3n	HDMI D1-
TX4p	HDMI D2+
TX4n	HDMI D2-
ModPrsL	HDMI cable is plugged in when low
ResetL	Reset NB7NQ621M when low
SCL	I2C clock for both the NB7NQ621M and HDMI DDC
SDA	I2C data for both the NB7NQ621M and HDMI DDC
