2-way radio module test board. 16 channel, USB interface, Voice broadcast channel number; it can used for 0.5W, 1W, 2W module demostrationSold By Walkie talkie module
SR_DEMO_B Walkie Talkie Transceiver /Data transfer Module Demo Board specification ( for 2WU module) What you get: The cost is just for 1 pcs; The demo board with one antenna, but without speaker...Read More…
SR_DEMO_B Walkie Talkie Transceiver /Data transfer Module
Demo Board specification ( for 2WU module)
What you get:
Specification for DEMO_B:

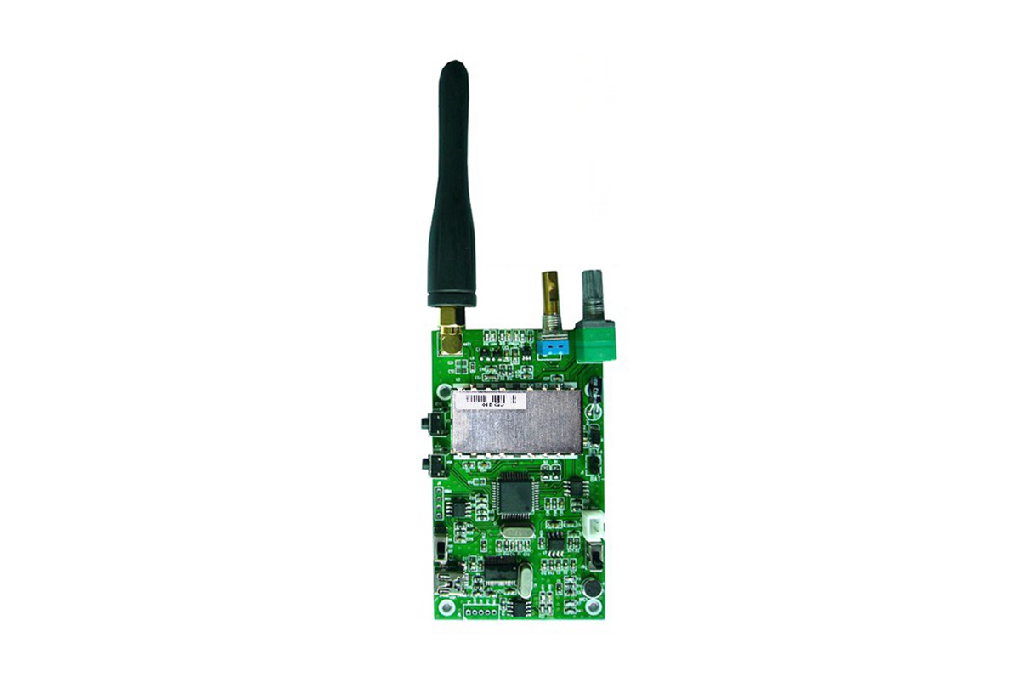

FRS-DEMO-B is designed for Walkie Talkie transceiver module demo as below:
It can be used for voice intercom and data transfer demonstration. Also it can be used for development on the demo board.
It is easy to set all the module parameter via the USB interface. When you select the channel, it will voice broadcast the current channel number. You may quickly evaluate our module performance by the demo board, Just make a little modify, it can be directly applied into your real production.
The Demo board performance:
It has the power switch, volume adjust, and the channel selection switch.
16 channels can be selected by the encoder switch;
It is easy to switch the VOX(Sound control transmit) by a VOX switch, the VOX level can be set via the PC;
Voice broadcast for the channel number, Chinese/English could be selected.
Monitor function by press [MON]key;
Voice intercom demo;
Data transfer demo;
One group user interface: SQ, LINE_IN, LINE_OUT, PTT, GND
Could restore to the factory parameter setting
The demo board parameter can be set via the USB interface, for the setting instruction please contact us to get the 《serial communication protocol》
Tx frequency, Rx frequency can be set alone;
Tx CTCSS, Rx CTCSS can be set alone;
Rf output power can be set by software;
Transmit Busy lock setting;
Squelch level setting
GBW bandwidth setting
MIC sensitivity setting
VOX level setting
TOT setting (Timer of transmit)
Auto power save setting
All setting can be kept when power off
The demo board function define picture:
The demo board size：45mm X 90 mm;
DC power supply:3.3V-5V;
USB type: MICRO USB;
User interface：SQ, Line _in, Line_out, PTT, GND;
When use Line_in，Should push the MIC selection to “EXT”position；
Red LED：DC power indication；
Yellow: Transmit status indication
Blue：Receive signal indication
The demo board operation:
Please mount the power, antenna, speaker; Push the MIC select switch to ‘INT’ position;
Power on the demo board , the power indication LED(red) turns on, Then rotate the volume adjust switch to a proper position; After about 1seconds, the demo board would voice broadcast the current channel number;
Adjust the channel selection switch, ensure the transmitter and receiver are at the same channel;
Hold on to the [PTT] key, the transmit indication LED(yellow) then turns on. You may talk to the opposite side. After you are finished talking, release the [PTT] key, the system goes automatically into the receive status, When you've received the signal from the opposite side, the receive indication LED(blue)turns on;
At a weak signal area, you may hold on the[MON] key, the system into monitor mode, release the [MON]key, the monitor mode is cancelled;
The frequency and the CTCSS for every channel can be set alone via the USB interface;
The sound control(VOX):
Push VOX switch to ON position, the VOX function is enabled, You may talk without [PTT]key, the system will automatically into transmit status.
During the VOX valid status,The transmit indication LED(Yellow) turns on; When VOX enabled, the [PTT] key is still valid.
Push VOX switch to OFF position, the VOX function is disabled, you can only intercom by press the [PTT] key.
The VOX sensitivity can be set via the USB interface.
For detailed specs, please contact us.
The demo board is subject to be upgraded without notice;
