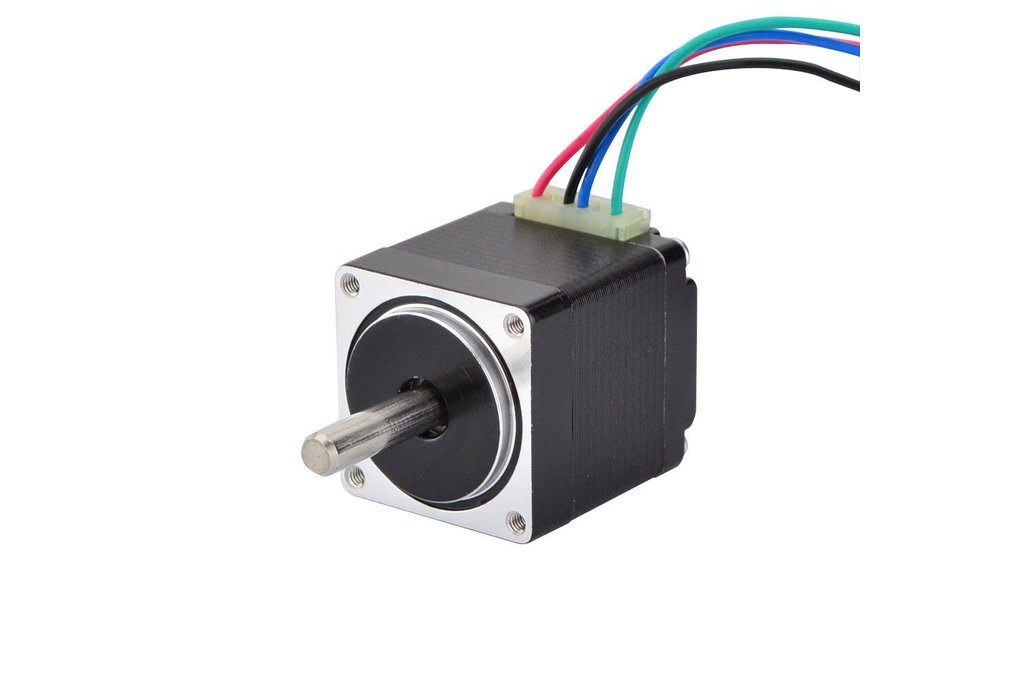

STEPPERONLINE Mini Stepper Motor Nema11 Bipolar 0.67A 8.5oz-in/6Ncm DIY Robot CNC (No Single keyed shaft)Designed by STEPPERONLINE in China
This hybrid bipolar stepper motor has 1.8 deg. step angle (200 steps/revolution). Each phase draws 670 mA at 3.8 V, allowing for a holding torque of 6Ncm(8.5oz.in). Electrical Specification: Manuf...Read More…
This hybrid bipolar stepper motor has 1.8 deg. step angle (200 steps/revolution). Each phase draws 670 mA at 3.8 V, allowing for a holding torque of 6Ncm(8.5oz.in).
Black(A+), Green(A-), Red(B+), Blue(B-)
Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
