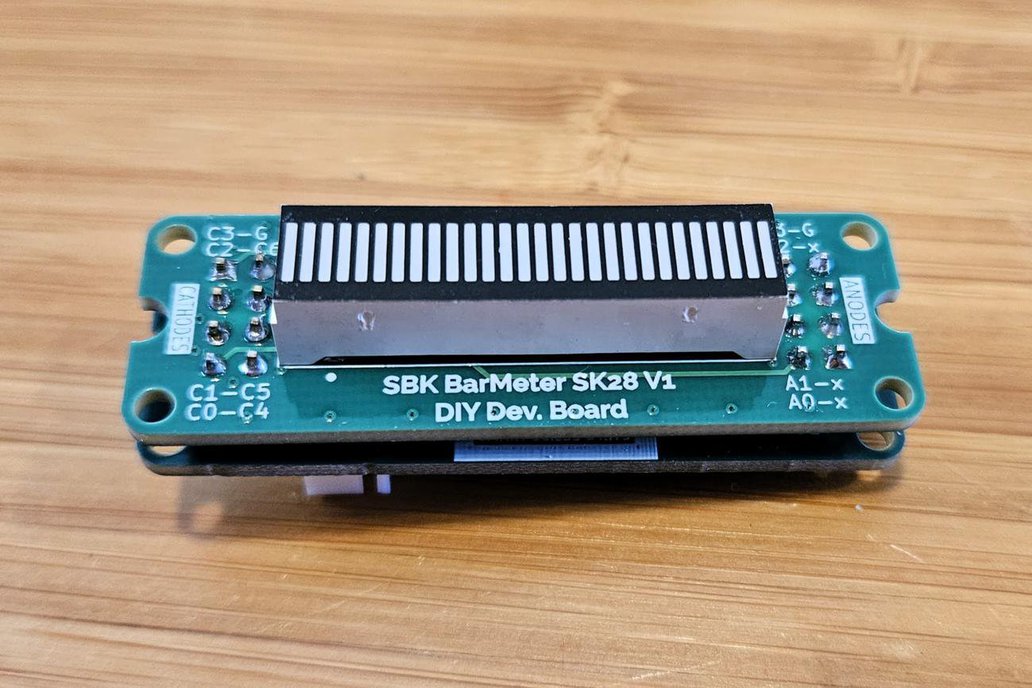

SBK BarDriveHT 28 + BarMeter SA28/SK28 Bundle - completed soldered BL28-3005Sx04Y bar meter display with HT16K33 20-SOP I2C driver backpack

Designed by Smart Builds & Kits in Canada

SBK BarDriveHT 28 + SBK BarMeter SA28/SK28 Bundle 1

SBK BarDriveHT 28 + SBK BarMeter SA28/SK28 Bundle 2

SBK BarDriveHT 28 + SBK BarMeter SA28/SK28 Bundle 3

SBK BarDriveHT 28 + SBK BarMeter SA28/SK28 Bundle 4

SBK BarDriveHT 28 + SBK BarMeter SA28/SK28 Bundle 5

SBK BarDriveHT 28 + SBK BarMeter SA28/SK28 Bundle 6

2025-08-04T13:27:25.223Z-BarDriveHT28_BarMeterSx28_bundle (2).jpg

2025-08-04T13:27:25.223Z-BarDriveHT28_BarMeterSx28_bundle (1).jpg

2025-07-18T03:23:28.410Z-Front with terminal.jpg

2025-07-18T03:23:28.410Z-Sx28 front with components.jpg

2025-07-18T03:23:28.410Z-SBK BarDriveHT 28 SBK BarMeter Sx28 Bundle (2).png

2025-07-18T03:23:28.410Z-SBK BarDriveHT 28 SBK BarMeter Sx28 Bundle (1).png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Stock is intentionally kept low due to the wide variety of product options. Inquiries: SmartBuildsKits@gmail.com IMPORTANT: Only fully assembled and soldered boards are tested before shipping.

SBK BarDriveHT 28 + BarMeter SA28/SK28 Bundle - completed soldered BL28-3005Sx04Y bar meter display with HT16K33 20-SOP I2C driver backpack

SBK BarDriveHT 28 + BarMeter SA28/SK28 Bundle 🔌 A complete plug-and-play LED bar meter solution! 🎁 What’s Included ✅ SBK BarDriveHT 28: Based on the HT16K33 (20-SOP) LED matrix driver Soldered SM…

SBK BarDriveHT 28 + BarMeter SA28/SK28 Bundle

🔌 A complete plug-and-play LED bar meter solution!

🎁 What’s Included

✅ SBK BarDriveHT 28:
Based on the HT16K33 (20-SOP) LED matrix driver
Soldered SMD passives, decoupling capacitor, and I²C pull-up resistors
Ready to drive 28-segment matrix bar displays via I²C
✅ SBK BarMeter SA28 (common-anode)
or SBK BarMeter SK28 (common-cathode):
Professionally soldered BL28-3005Sx04Y LED bar meter display
Pre-mounted and soldered directly onto the BarDriveHT 28 backpack

⚙️ Features

I²C interface (standard 2-wire, up to 400 kHz)
28-segment matrix-style LED bar meter display
Built-in 16-step PWM brightness control
Plug-compatible with the SBK_BarDrive Arduino library for animations
Fully supported by the SBK_HT16K33 Arduino library
Compatible with any generic HT16K33 libraries

🛠️ Applications

Audio spectrum or level meters
Signal strength indicators
Industrial or lab control panels
Retro-style display bars
Creative animations or prop effects

📐 Technical Specifications

Property	Value
Logic level	5V
Display type	BL28-3005SA04Y (common anode) or BL28-3005SK04Y (common cathode)
Driver chip	Holtek HT16K33 (20-pin SOP, I²C)
Board format	Backpack-style: display soldered to driver board

💡 Just connect 5V, GND, SDA, and SCL — and you're ready to animate 28 segments in style!

> 🔧 Note: Specify SA28 or SK28 version, and LED color, at checkout.
> 🧰 UNSOLDERED BUNDLE means THT components are not soldered. All SMD components are pre-soldered.
