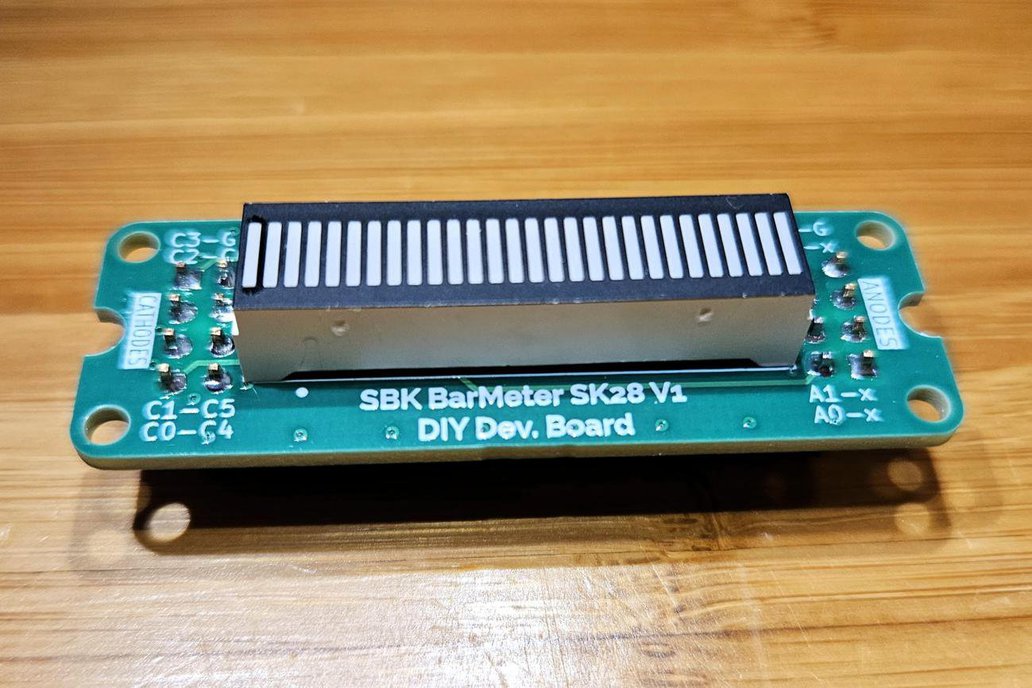

2025-07-17T14:16:15.943Z-Sx28 front with components.jpg

2025-07-17T14:16:15.943Z-Sx28 back with components.jpg

2025-07-17T14:16:15.943Z-Sx28 bare front.jpg

2025-07-17T14:16:15.943Z-Sx28 bare back.jpg

2025-07-17T14:16:15.943Z-assembled with SBK BarDriveHT 28 board (not included)(2).jpg

2025-07-17T14:16:15.943Z-assembled with SBK BarDriveHT 28 board (not included)(1).jpg

2025-07-17T14:16:15.943Z-assembled with SBK BarDriveMAX 28 board (not included) (1).jpg

2025-07-17T14:16:15.943Z-assembled with SBK BarDriveMAX 28 board (not included) (2).jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Stock is intentionally kept low due to the wide variety of product options. Inquiries: SmartBuildsKits@gmail.com IMPORTANT: Only fully assembled and soldered boards are tested before shipping.

SBK BarDrive SA28/SK28 - 28seg matrix type Bar Meter BL28-3005Sx04Y board

SBK BarMeter SA28/SK28 – 28-Segment Matrix LED Bar Meter 💡 A compact 28-segment LED bargraph display board built around the BL28-3005Sx04Y series and ideal for visualizing levels, meters, effects, or…

Read More…

SBK BarMeter SA28/SK28 – 28-Segment Matrix LED Bar Meter

💡 A compact 28-segment LED bargraph display board built around the BL28-3005Sx04Y series and ideal for visualizing levels, meters, effects, or signals in a unique vertical or horizontal layout.

🔧 Compatible Driver Backpacks

SBK BarMeterHT 28 Vx – HT16K33 I²C driver
SBK BarMeterMAX 28 Vx – MAX7219 SPI driver

📦 Also available as bundles:

SBK BarDriveHT 28 + SBK BarMeter Sx28 – With HT16K33 I²C driver
SBK BarDriveMAX 28 + SBK BarMeter Sx28 – With MAX7219 SPI driver

🔩 **This is board is available in 2 version :

SA28 -> common anode type : BL28-3005SA04Y** displays
SK28 -> common cathode type : BL28-3005SK04Y** displays

⚙️ Perfect companion for matrix LED drivers such as:

HT16K33
IS31FL3733
MAX7219/7221
And fully supported by the SBK_BarDrive Arduino library for animation-ready control

✨ Features:

Clean layout and durable PCB
Works in vertical or horizontal orientation
Suitable for DIY instruments, audio level meters, battery bars, or prop FX

📐 Dimensions:

~32mm x 8mm LED area
2.54mm headers

🔧 Compatible Driver Backpacks

SBK BarMeterHT 28 Vx – HT16K33 I²C driver
SBK BarMeterMAX 28 Vx – MAX7219 SPI driver

📦 What’s Included

1× SBK BarDrive Sx28 V1 PCB (bare)
(Optional) Pin headers(2x 2x4) (unsoldered/soldered)
(Optional) BL28-3005Sx04Y Bar Meter Display (unsoldered/soldered)
