ESP8266 expander simple with MCP23017Designed by roncoa in Italy
ESP8266 expander simple Compact PCB to control up to 16 I/O via ESP8266 (D1 mini or ESP01). It has 230VAC power supply on board (optional) and 3.3V voltage regulator. The I/O are controlled through...Read More…
ESP8266 expander simple

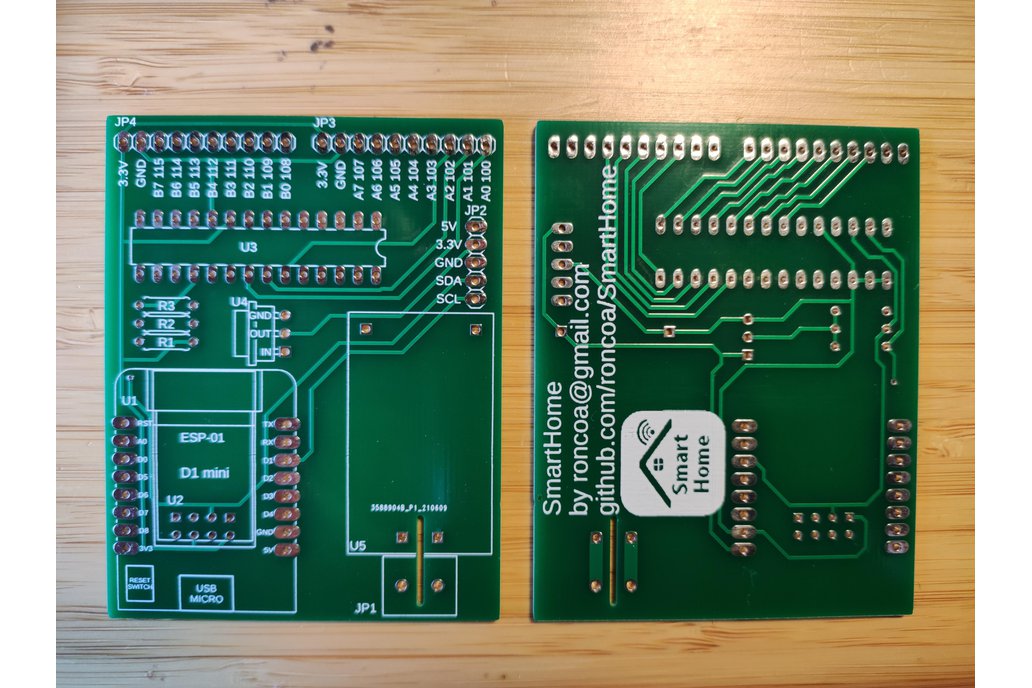

Compact PCB to control up to 16 I/O via ESP8266 (D1 mini or ESP01).
It has 230VAC power supply on board (optional) and 3.3V voltage regulator.
The I/O are controlled through the port expander (MCP23017) which uses the I2C protocol.
The dimensions of the PCB are 71x56x2 mm.
The dimensions of the PCB with all components mounted are 71x56x20 mm.
To work you need a firmware that manages the MCP23017 I2C expander.
The use of the "SmartHome" firmware is recommended.
It is available on GitHub at the following address: https://github.com/roncoa/SmartHome
