Pic microcontroller dev board that supports the PDIP 40 pin Pic18F microsDesigned by RobotTech in United States of America
What is it? Dev board for pic18f46k80 microcontroller. Board does not come with PicKit or FTDI to usb. These are only shown for reference. The board does come with a pic18f46k80 but will work with o…Read More…

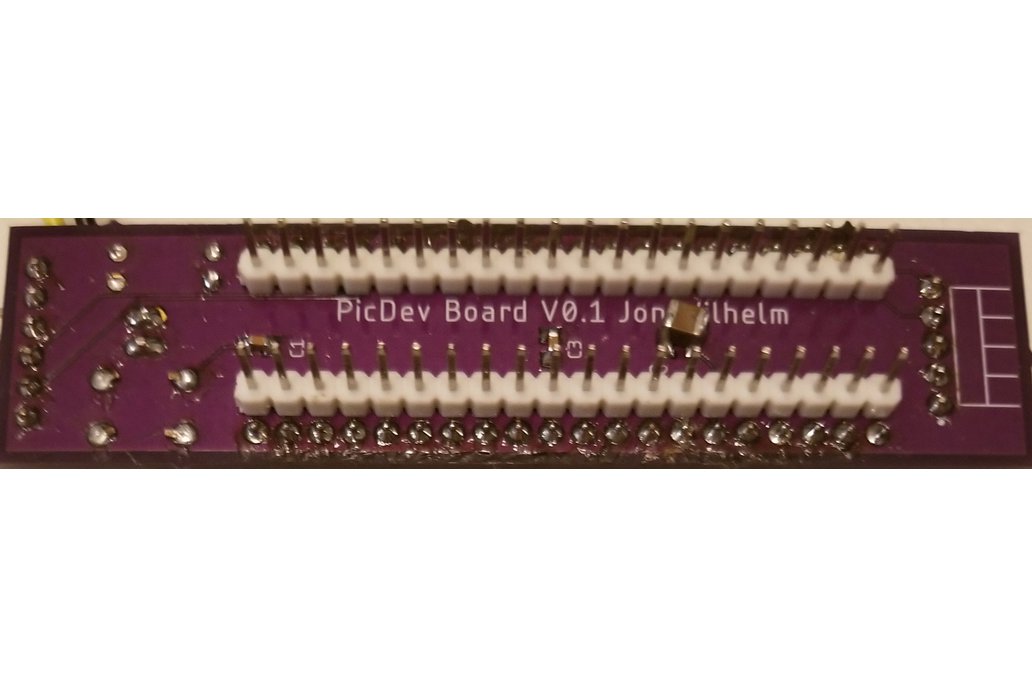

Dev board for pic18f46k80 microcontroller. Board does not come with PicKit or FTDI to usb. These are only shown for reference.
The board does come with a pic18f46k80 but will work with other 20 pin pic microcontrollers. These are extra boards from my own project, all components are new and ordered through mouser and oshpark.com Please note the FTDI TX pin is connected to the wrong pin. So this means the Pic can talk to the computer but the computer can not talk back. These boards come pre-assembled and soldered with all the components. Upon request I am willing to repair the miss wiring for no additional charge (I would cut the trace and solder a wire to the correct pin). Also note If this product is popular I can order more with the proper version corrections.
I am using this version to reduce the wires on a breadboard. On the next version I am adding ADC to the board.
This board has a very small footprint, USART broken out to header, PicKit programming pins broken out to header, and power pins are available
