RF-star cc2340 2.4ghz zigbee bluetooth 5.3 transmitter receiver wireless module for consumer electronics
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
What is it? RF-BM-2340A2 and RF-BM-2340A2I are RF modules based on TI lower-power CC2340R5 SoC. They are multiprotocol 2.4 GHz wireless modules supporting Thread, ZigBee®, Bluetooth® 5.3 Low Energy,…
Read More…RF-BM-2340A2 and RF-BM-2340A2I are RF modules based on TI lower-power CC2340R5 SoC. They are multiprotocol 2.4 GHz wireless modules supporting Thread, ZigBee®, Bluetooth® 5.3 Low Energy, IEEE 802.15.4, and proprietary 2.4 GHz. The modules integrate a 48 MHz crystal, 512 KB of in-system Programmable Flash, 12 KB ROM for bootloader, and 36 KB of ultra-low leakage SRAM. The ARM® Cortex®-M0+ core application processor can operate at an extremely low current at flexible power modes. And the modules enable long-range and low-power applications using 8 dBm high-power with best-in-class transmit current consumption at 12 mA. They feature a small size, robust connection distance, and rigid reliability. The 1.27-mm half-hole pitch stamp stick makes the module more convenient for application and development. RF-BM-2340A2 has a high-performance PCB antenna, while RF-BM-2340A2I has an IPEX connector or a half-hole RF out interface option for the different needs of external antennas. The UART serial port protocol can also enable you to start your development with a quick path.

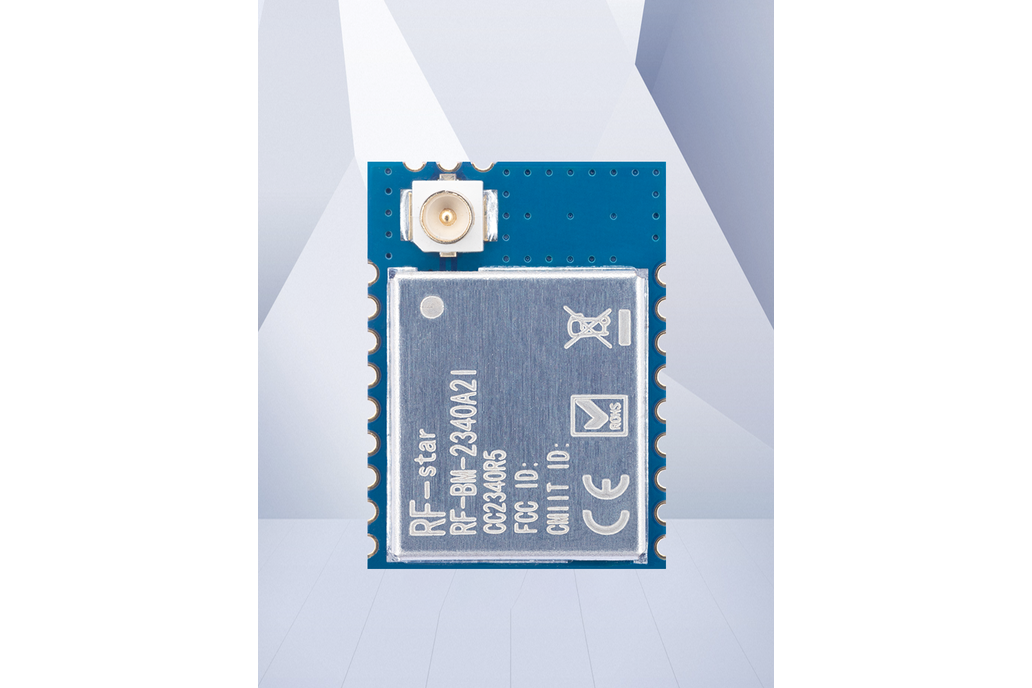

RF-BM-2340A2I SoC: CC2340R5 Wireless SoC: ARM® Cortex®-M0+ processor
TX power: Up to +8 dBm
Sensitivity:
Features
Operating Range
Rich Peripherals
No country selected, please select your country to see shipping options.
No rates are available for shipping to .
Enter your email address if you'd like to be notified when 2.4GHz RF Module Bluetooth Zigbee Embedded CC2340 can be shipped to you:
Thanks! We'll let you know when the seller adds shipping rates for your country.
Shipping Rate | Tracked | Ships From | First Item | Additional Items |
---|---|---|---|---|
:
|
Quantity | Price |
---|---|
1 | $2.70 |
2-49 | $2.70 |
50+ | $2.65 |
