Raspberry Pi adapter for the A600 that alowes for pixel perfect hdmi output.Sold By RetroFletch
Open Source Project that uses a Raspberry PI to achieve pixel perfect HDMI output for your Amiga. This variant is made for Amiga A600 and unlike the A500 version this is not "plug-and-play" but re...Read More…
Open Source Project that uses a Raspberry PI to achieve pixel perfect HDMI output for your Amiga.
This variant is made for Amiga A600 and unlike the A500 version this is not "plug-and-play" but requires some soldering to install, picture 4 shows all solder points.

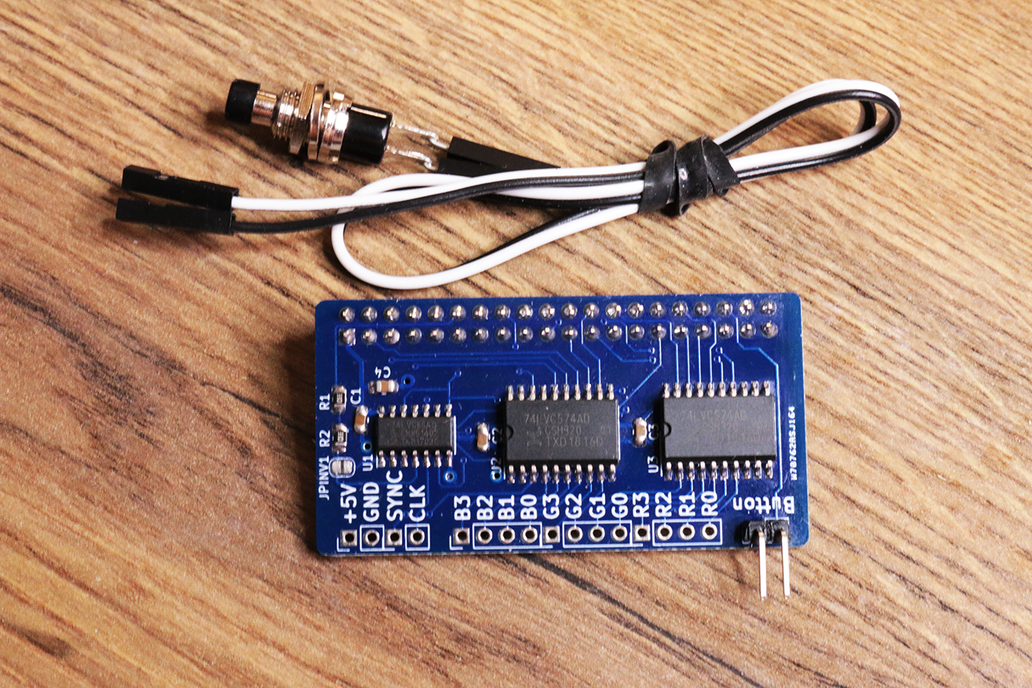

Comes with a Push button and cable to access OSD menu with settings.
Except for this adapter you will also need the following that is not included: 1pcs Raspberry Pi ZERO with pinheader, either ZERO version should work 1pcs MicroSD Card for the software ( software is only few mb so size isnt important ) 1pcs Mini HDMI to HDMI adapter or cable ( MINI not Micro ) you will also need some signal cable ( flatcable would work ) to make connections to computer.
read more on the projects github page here: https://github.com/c0pperdragon/Amiga-Digital-Video
there is also a thread about installation tips and 3d-print files here: https://github.com/c0pperdragon/Amiga-Digital-Video/issues/22
IMPORTANT! install everything as shown in picture 3, if you install the adapter or raspberry pi in the wrong direction you can damage your machine or the adapter itself!
There is a pinheader where you can connect the button to access the software menu where you will have to set up the software.
Shipped from sweden in padded envelope, choose if you want tracked shipping or not at checkout.
