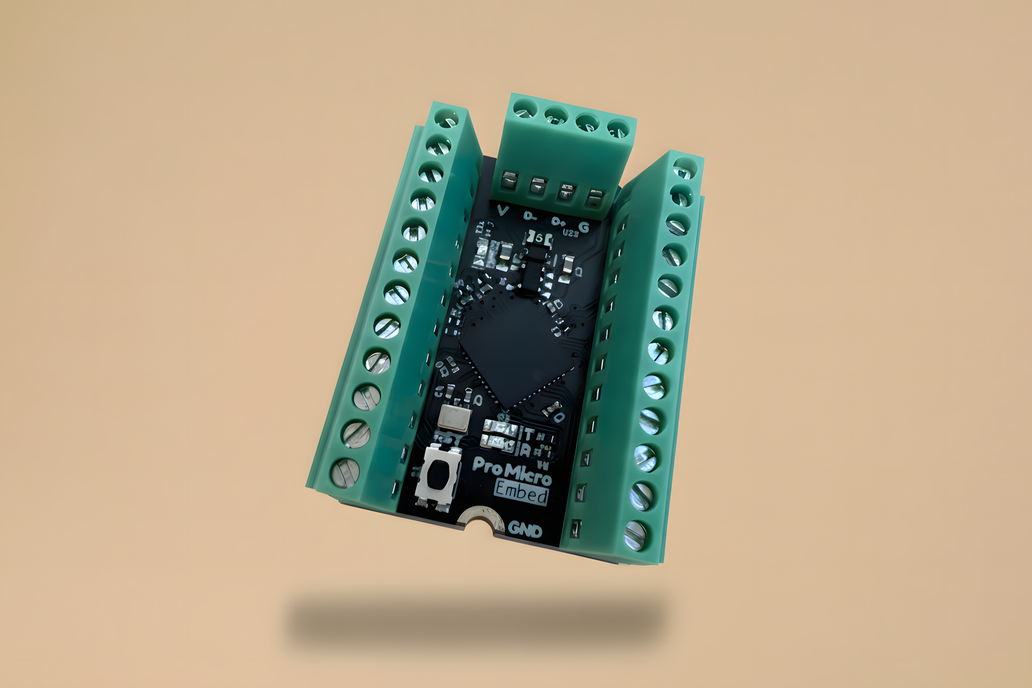

A ProMicro-compatible board built for production-ready installs and fast prototyping—no soldering required. Every I/O and USB pin is exposed on screw terminals, so you can wire up sensors, switches, and even the USB data lines in seconds. The board ships with a rugged, panel-mountable USB-C cable (135mm, USB 2.0, 4-wire) and supports metal hardware for secure, grounded mounting.

Why this board?

Typical ProMicro boards force you to solder headers and mount the USB port flush with your enclosure, which can lead to awkward fits or broken connectors. With this design, all pins—including USB—are available on screw terminals. The included USB-C connector can be mounted on your product enclosure.

Features: • Fully compatible with standard ProMicro pinout and firmware • Screw terminals on every pin—including USB D+, D-, VBUS, GND • Ships with a durable, panel-mount USB-C cable (135mm, USB 2.0, 4-wire) • Three grounded M3 mounting holes for secure installation • Ideal for prototyping, classroom builds, and shipping production hardware • Hand-tested and shipped from the US

Specs: • Microcontroller: ATmega32U4 (ProMicro standard) • USB: USB-C (via screw terminals, cable included) • Voltage: 5V • Pin count: 24 (all screw terminal) • Board size: 25mm × 34.5mm, 12mm height • USB-C cable mount: 10mm diameter, 14mm length, 9mm anti-rotation flats, M6 nut • Cable length: 135mm

Wire, mount, and go—solderless, secure, and ready for real-world use.
