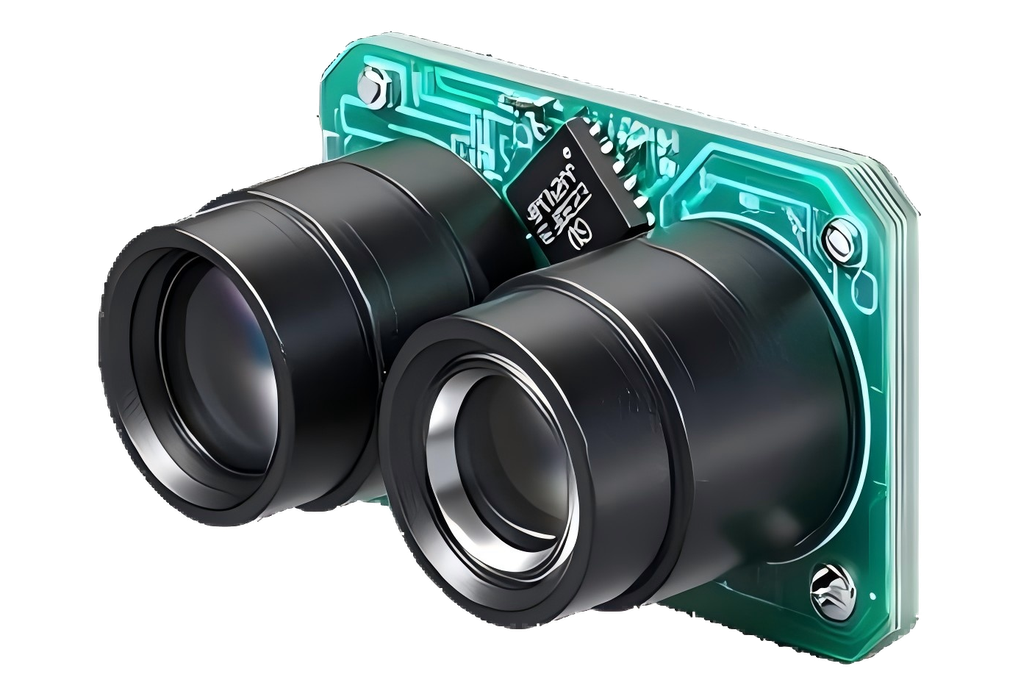

The TSD50 LiDAR is newly launched laser ranging product and is specially designed for applications such as DIY,Maker,UAV and so on.
Designed by PONO Sensor in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Model TSD50 1 Range 0.05m~50m (90%reflectivity),0.05m~20m (10%reflectivity) 2 Frequency 500Hz 3 Accuracy ±5cm(<5m), 1%(≥5m)(1σ) 4 Repeatability ±10mm 5 Ambient Light Immunity 10m@100KLux 6 Central Wa…
Read More…Model TSD50
1 Range 0.05m~50m (90%reflectivity),0.05m~20m (10%reflectivity)
2 Frequency 500Hz
3 Accuracy ±5cm(<5m), 1%(≥5m)(1σ)
4 Repeatability ±10mm
5 Ambient Light Immunity 10m@100KLux
6 Central Wavelength 905nm
7 Photobiological Safety Class 1
8 FOV 3°
9 Wavelength for Indication N/A
10 Photobiological Safety for Indication N/A
11 Supply Voltage 3.0~5VDC
12 Peak Current 5V@70mA
13 Average Current 5V@40mA
14 Average Power Consumption <0.2W
15 Communication Interface UART/IIC
16 Protection Level N/A
17 Dimension 18.7 x 11.8 x 13.3mm
18 Weight 2g
19 Operating Temperature -20℃ ~ +60℃
20 Wire Specification 4pin 1.0mm terminal, 10cm tinned stranded wires
